Permanent magnetic chuck Maxgrip

Code: MAXG200 MAXG250 MAXG300 MAXG350 MAXG400 Choose variant
Not rated
€1 175,35 / pcs €1 438,65 / pcs €1 809,54 / pcs €2 549,38 / pcs €3 288,31 / pcs from €1 175,35 / pcs €971,36 excl. VAT €1 188,97 excl. VAT €1 495,49 excl. VAT €2 106,93 excl. VAT €2 717,61 excl. VAT from €971,36 excl. VAT
Out of stock Out of stock Out of stock Out of stock Out of stock Choose variant
Variant

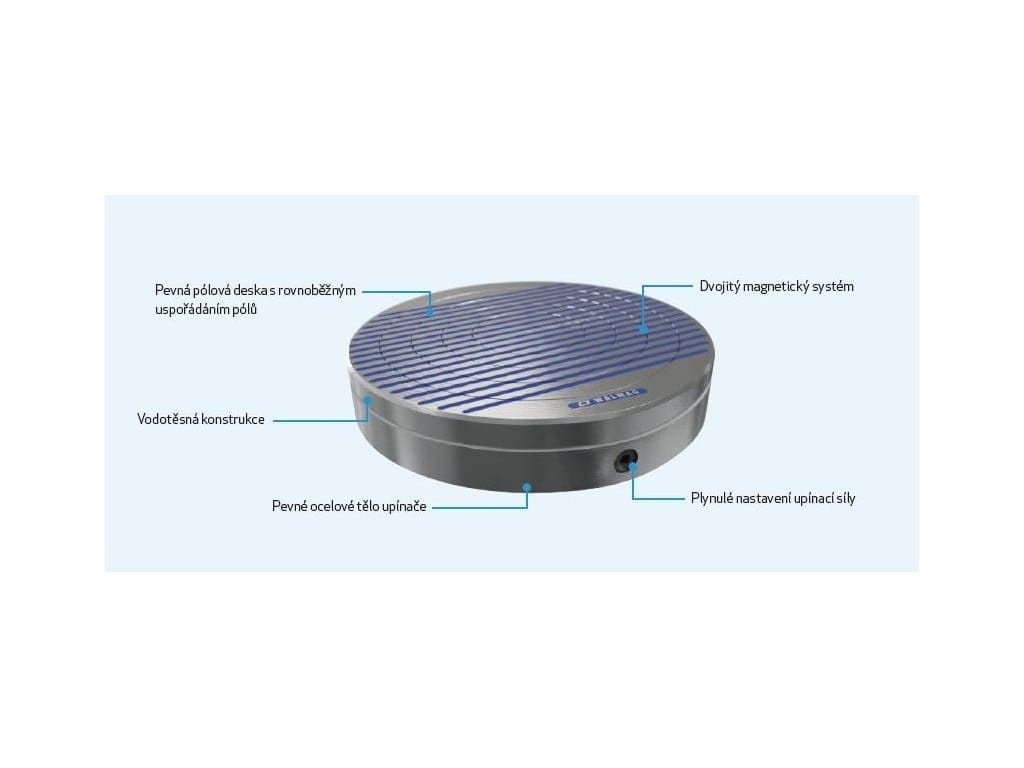

  • Solid steel body
  • Top plate with parallel pole configuration
  • Continuous adjustment of the holding force
  • Waterproof design
  • Double magnetic system

Detailed information

Product detailed description

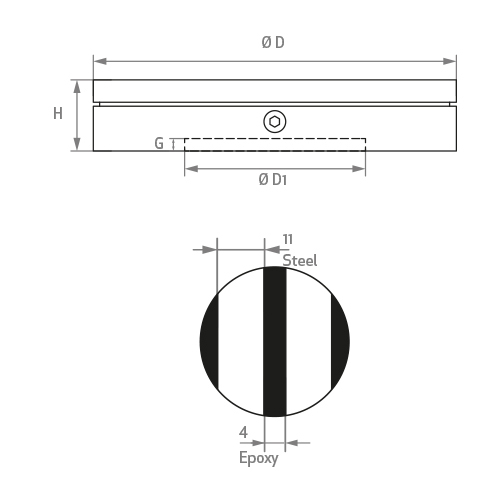

Model
Chuck diameter (mm)
D (mm)
H (mm) G (mm) D1 (mm) Weight (kg)
MAXG200 D200 200 57 5 60 15
MAXG250 D250 250 57 5 80 22
MAXG300 D300 300 57 6 150 32
MAXG350 D350
350
57 6 170 43
MAXG400 D400 400 57
8
200 56
Important parameters:
  • Application: Turning, circular grinding
  • Technology: Permanent
  • Available dimensions: From 200 mm
  • Poles: Parallel (transverse)
  • Min. workpiece diameter: 40 x 8 mm
  • Regrinding limit: 10 mm
  • Holding force: Up to 160 N/cm2
  • Pole pitch: T15 11 + 4 mm (steel/epoxy)

Use:

  • Clamping of workpieces during turning and circular grinding

Scope of supply:

  • Magnetick chuck
  • Wrench key
  • Operating instructions
Detail description:

Maxgrip permanent magnetic chuck is a suitable tool for clamping of different workpiece shapes during grinding, as well as turning operations. The possibility to adjust the holding force greatly facilitates centering of workpieces. Thanks to the low and very stable magnetic field can be clamped even relatively small and thin workpieces. The top plate is made of one solid unit, so there is absolutely no risk of coolant leakage into the chuck´s body. The top plate has also high regrinding limit, which ensures a very long service life.
