    Adjustable elbows

    Code: E915071 E915072 E915073 E915074 E915075 Choose variant
    Not rated

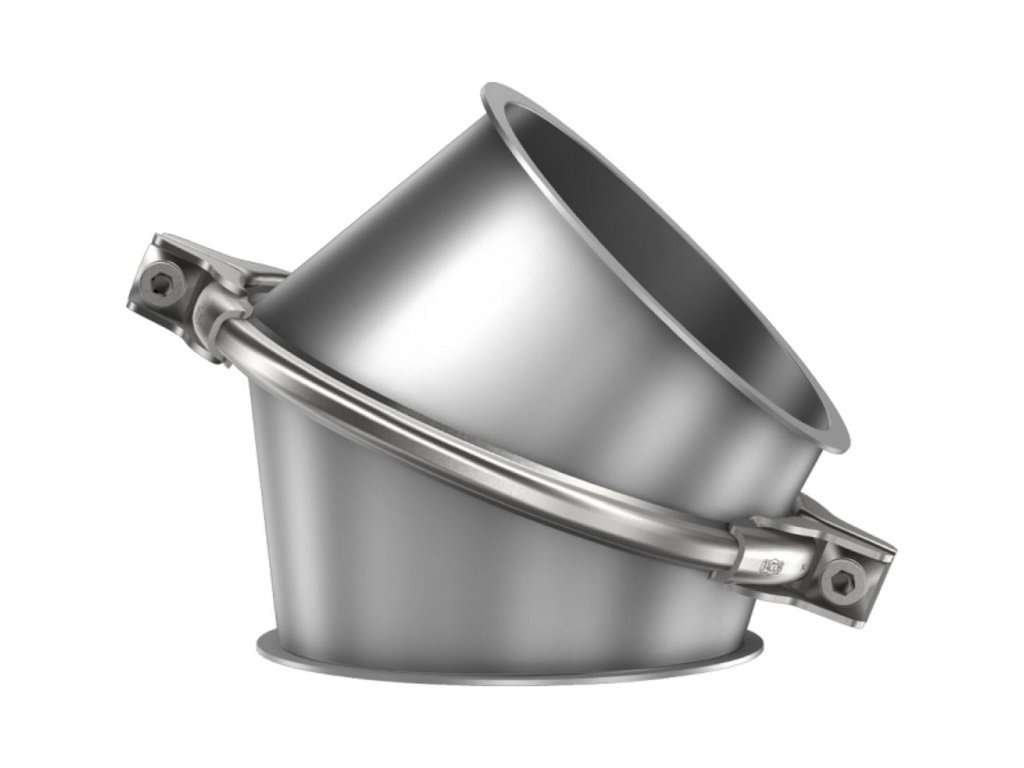

    Adjustable elbows_01
    €111,63 / pcs €115,59 / pcs €135,55 / pcs €177,51 / pcs €225,59 / pcs from €111,63 / pcs €92,26 excl. VAT €95,53 excl. VAT €112,02 excl. VAT €146,70 excl. VAT €186,44 excl. VAT from €92,26 excl. VAT
    Out of stock Out of stock Out of stock Out of stock Out of stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.

    DN 100 | DN 120 | DN 150 | DN 200 | DN 250

    Detailed information

    Product detailed description

    MODELL
    Ø d (mm)
    A (mm)
    		 α S (mm) Material Weight (kg)
    Item no.
    DN 100
    		 100 70 55º 2 Stainless steel 1,50 1110333501
    DN 120
    		 120 60 45º 2 Stainless steel 1,60 1112333501
    DN 150
    		 150 80 45º 2 Stainless steel 2,40 1115333501
    DN 200
    		 200 120 45º 2 Stainless steel 3,50 1120333501
    DN 250 250 140 45º 2 Stainless steel 4,60 1125333501
    • Version with galvanised pull-ring and U-shaped seal

    • Pre-assembled in the factory

    • 2 segments can also be adjusted by counter-rotating

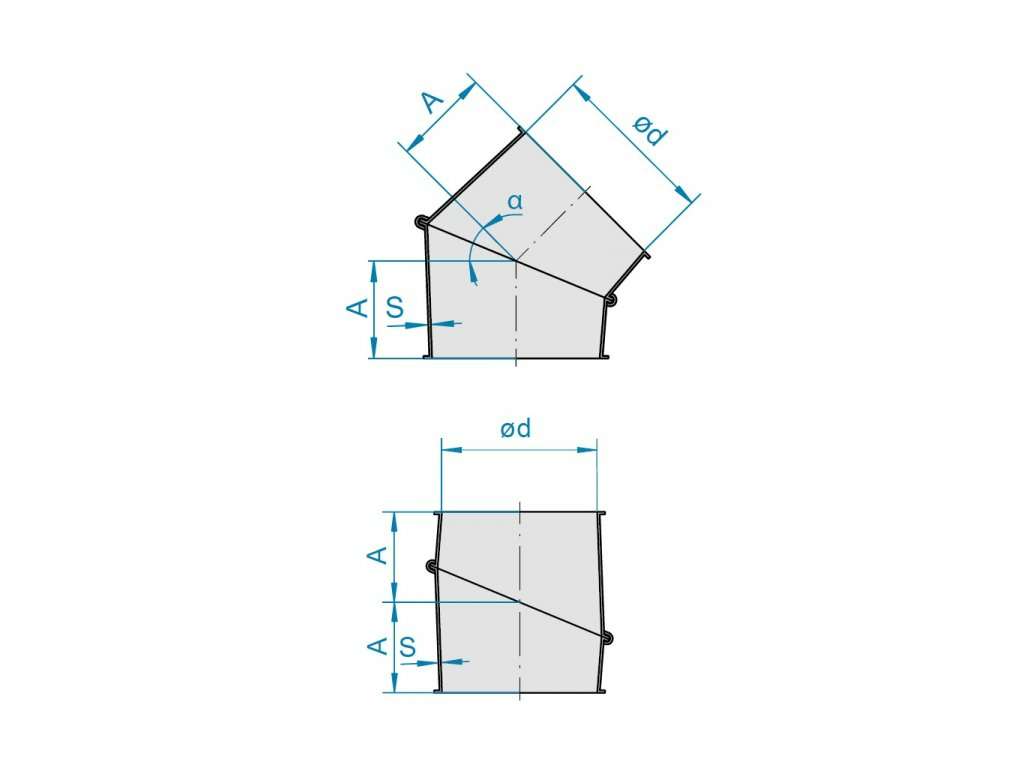

    		 Nastavitelné koleno JACOB 02

    Additional parameters

    Category: Adjustable elbows
