    Home / Magnetic rods / magnetic bars / Magnetic rod MTN Ø 25 mm, 2xM8, 16.000 Gs

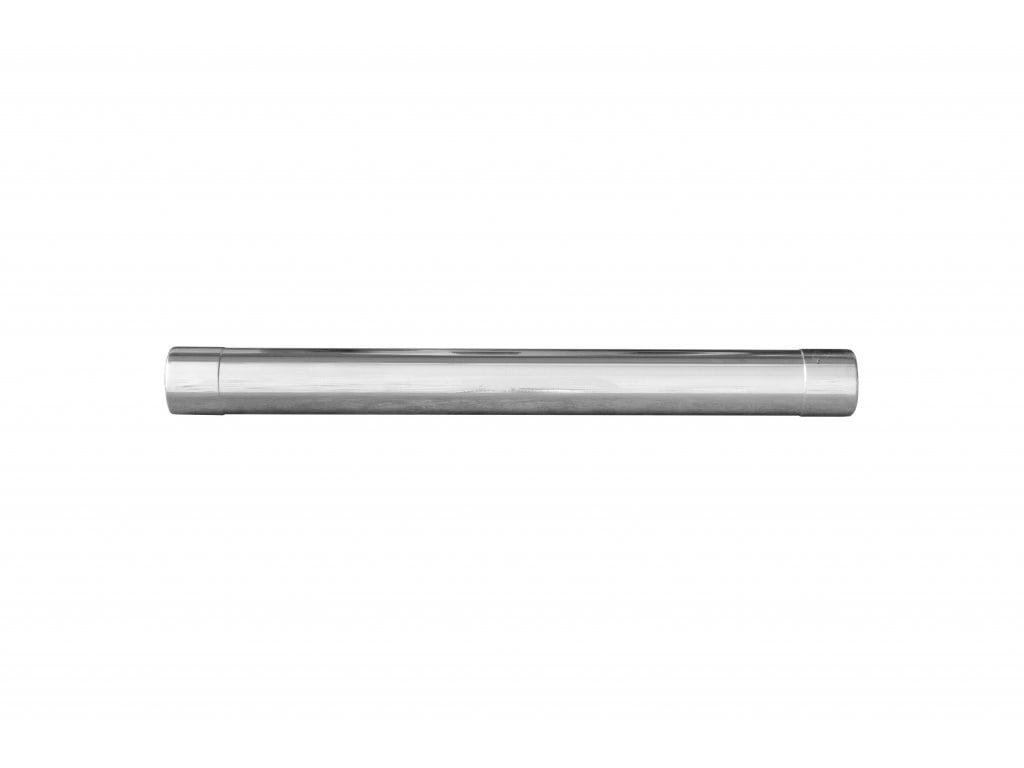

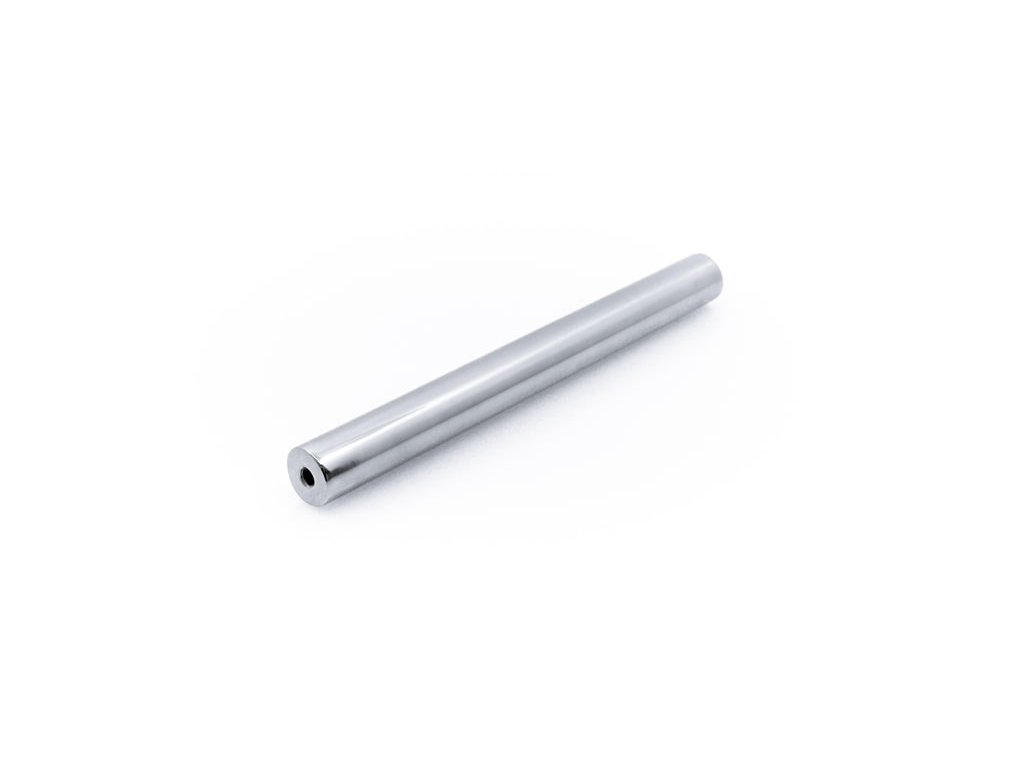

    Magnetic rod MTN Ø 25 mm, 2xM8, 16.000 Gs

    Code: MTN 25X100 N-2XM8 MTN 25X150 N-2XM8 MTN 25X200 N-2XM8 MTN 25X250 N-2XM8 MTN 25X300 N-2XM8 MTN 25X350 N-2XM8 MTN 25X400 N-2XM8 MTN 25X450 N-2XM8 MTN 25X500 N-2XM8 Choose variant
    The average product rating is 3,8 out of 5 stars. 12 ratings
    €81,81 / pcs €127,33 / pcs €169,68 / pcs €212,13 / pcs €254,53 / pcs €296,93 / pcs €339,37 / pcs €380,08 / pcs €424,25 / pcs from €81,81 / pcs €67,61 excl. VAT €105,23 excl. VAT €140,23 excl. VAT €175,31 excl. VAT €210,36 excl. VAT €245,40 excl. VAT €280,47 excl. VAT €314,12 excl. VAT €350,62 excl. VAT from €67,61 excl. VAT Measure price:
    In Stock In Stock In Stock In Stock In Stock In Stock In Stock In Stock In Stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    16.9.2026 16.9.2026 16.9.2026 16.9.2026 16.9.2026 16.9.2026 16.9.2026 16.9.2026 16.9.2026 Choose variant

    2 x M8 threaded | Magnetic rod with a diameter of 25 mm | Temperature resistance: 80 °C | Magnetic induction: 16000 Gs

    Detailed information

    Product detailed description

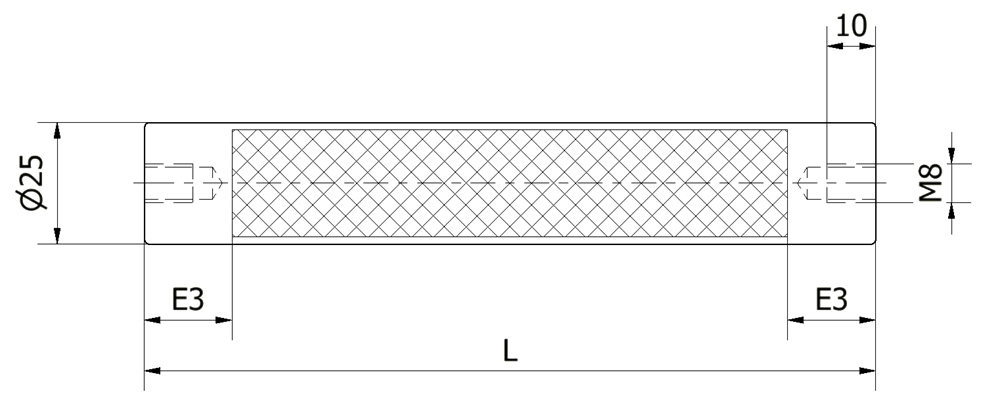

    MODEL
    L (mm)
    E3 (mm)
    		 WEIGHT (kg)
    MAGNETIC INDUCTION
    SURFACE TREATMENT
    WORKING TEMPERATURE
    MTN 25x100 N-2xM8
    100
    22
    		 0,50
    16000 Gs
    polishing
    <80°C
    MTN 25x150 N-2xM8
    150
    20
    		 0,75
    16000 Gs
    polishing
    <80°C
    MTN 25x200 N-2xM8
    200
    18
    		 1,00
    16000 Gs
    polishing
    <80°C
    MTN 25x250 N-2xM8
    250
    16
    		 1,25
    16000 Gs
    polishing
    <80°C
    MTN 25x300 N-2xM8
    300
    27,5
    		 1,50
    16000 Gs
    polishing
    <80°C
    MTN 25x350 N-2xM8
    350
    25,5
    		 1,75
    16000 Gs
    polishing
    <80°C
    MTN 25x400 N-2xM8
    400
    23,5
    		 2,00
    16000 Gs
    polishing
    <80°C
    MTN 25x450 N-2xM8
    450
    21,5
    		 2,25
    16000 Gs
    polishing
    <80°C
    MTN 25x500 N-2xM8
    500
    19,5
    2,50
    16000 Gs
    polishing
    <80°C
    • Classical magnetic rod ϕ 25 mm
    • Magnetic induction on the rod surface: 16.000 Gauss
    • Strong neodymium NdFeB magnets
    • Polished surface
    • Heat resistance of magnets up to 80°C in standard design
    • Stainless steel DIN 1.4301
    • 2 x M8 threaded





    Additional parameters

    Category: Magnetic rods / magnetic bars
    EAN: Choose variant
    MTN 25X100 N 2XM8 01 min
    Magnetic rod MTN Ø 32 mm, 2xM8, 16.000 Gs
    The average product rating is 3,3 out of 5 stars.
    In Stock
    from €71,90 excl. VAT
    from €87

    2 x M8 threaded | Magnetic rod with a diameter of 32 mm | Temperature resistance: 80 °C | Magnetic induction: 16.000 Gs

    Code: MTN32X100N-2XM8

    Magnetic induction MTN
