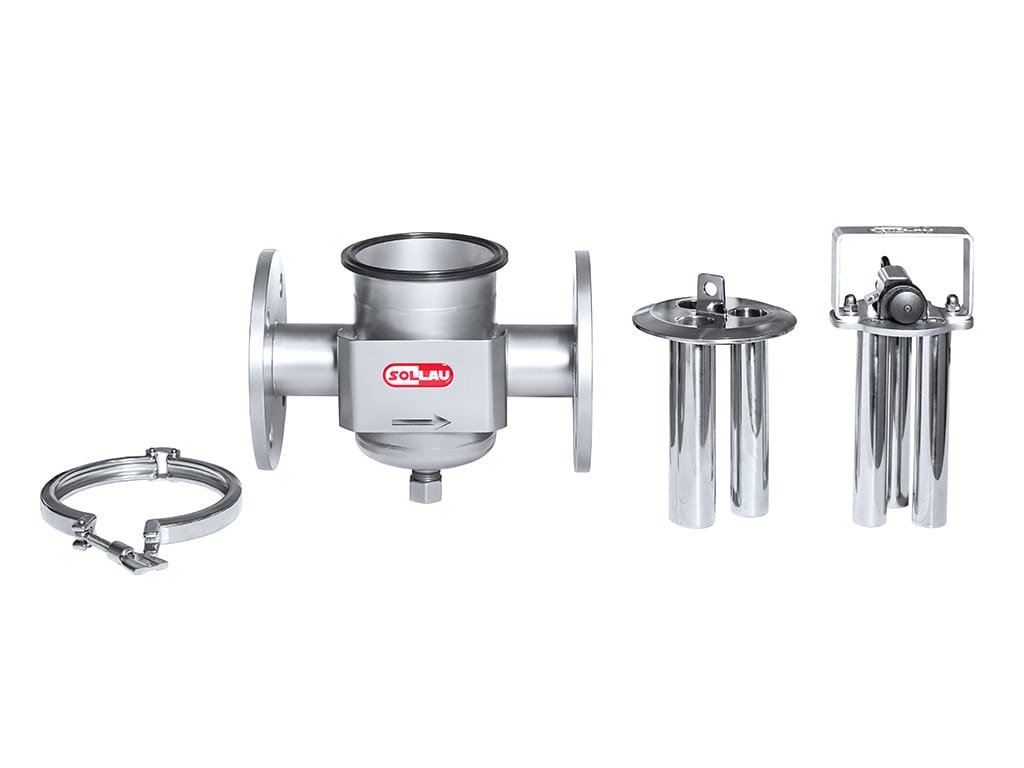

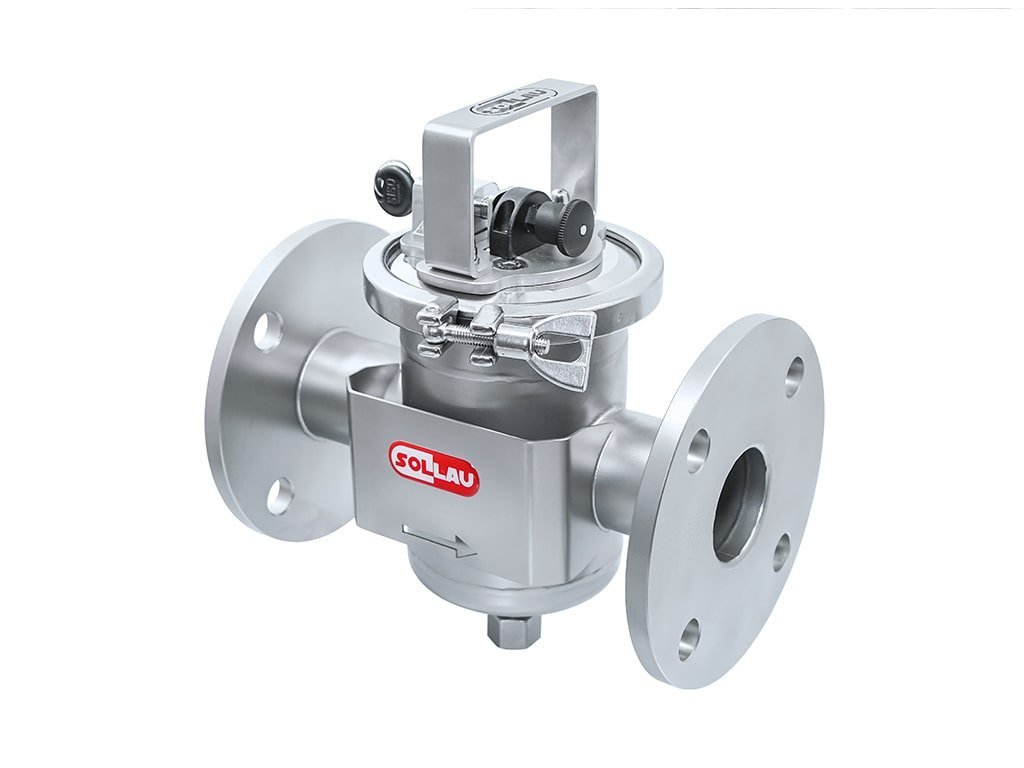

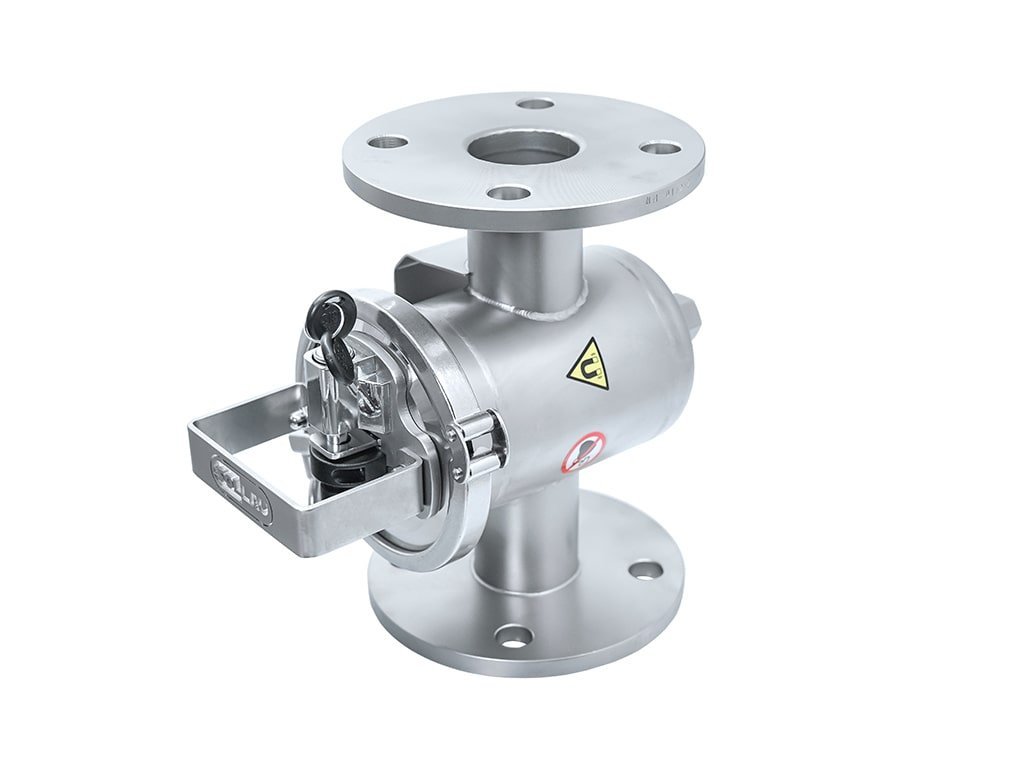

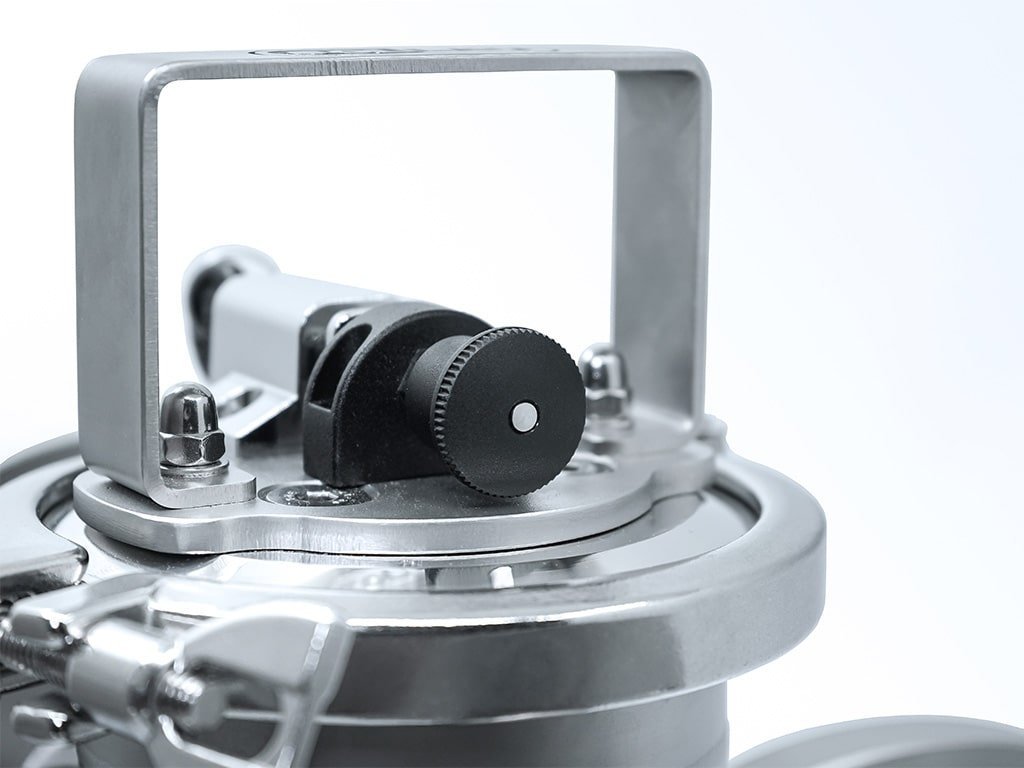

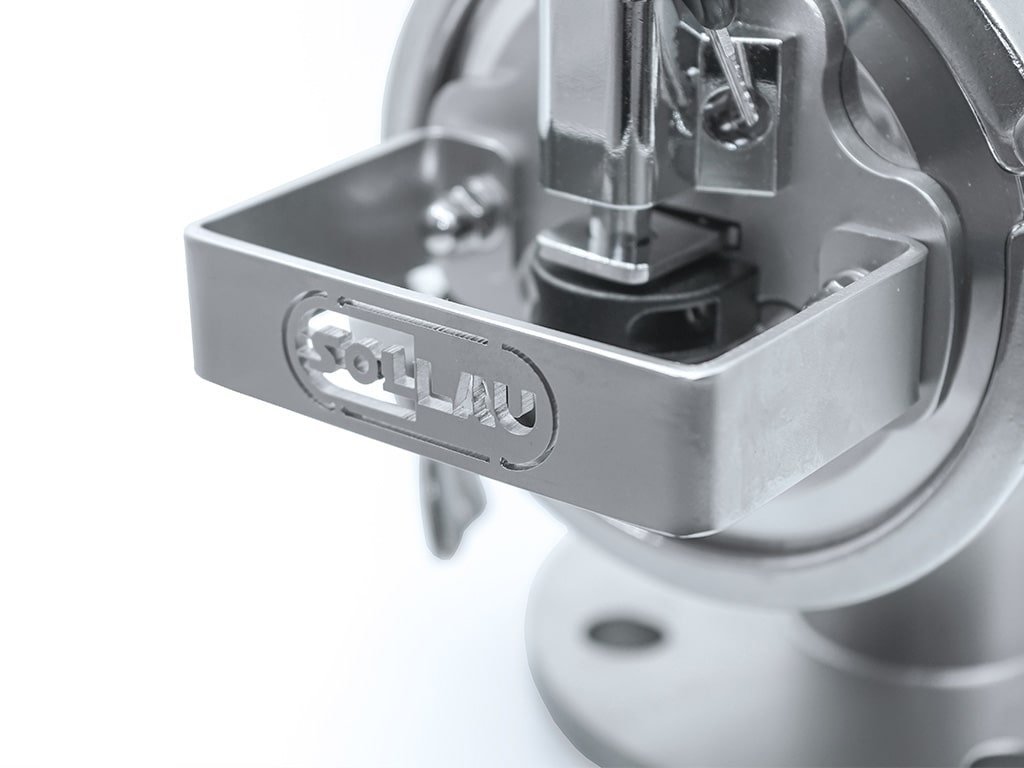

Pipeline magnetic separator MSP-S
Code: MSP-S50N-133219 MSP-S100N-136742 Choose variantProduct detailed description
Magnetic filters are designed to separate ferromagnetic particles from liquid materials transported in a pipeline.
| Model | Weight (kg) |
A (mm) |
H (mm) |
D (mm) |
Number and type of magnetic tubes |
| MSP-S 50 N | 9 | 240 | 264 | 50 | 3 x 28 mm |
| MSP-S 100 N | 17 | 300 | 285 | 100 | 5 x 28 mm |
| Typ příruby | Počet děr | V (mm) |
W (mm) |
X (mm) |
Y (mm) |
Z (mm) |
| DN 50 | 4 | 18 | 10 | 125 | 50 | 165 |
| DN 100 | 8 | 18 | 10 | 180 | 100 | 220 |
ADVANTAGES
- Low weight
- 5-year warranty
- Attractive price
- Easy cleaning

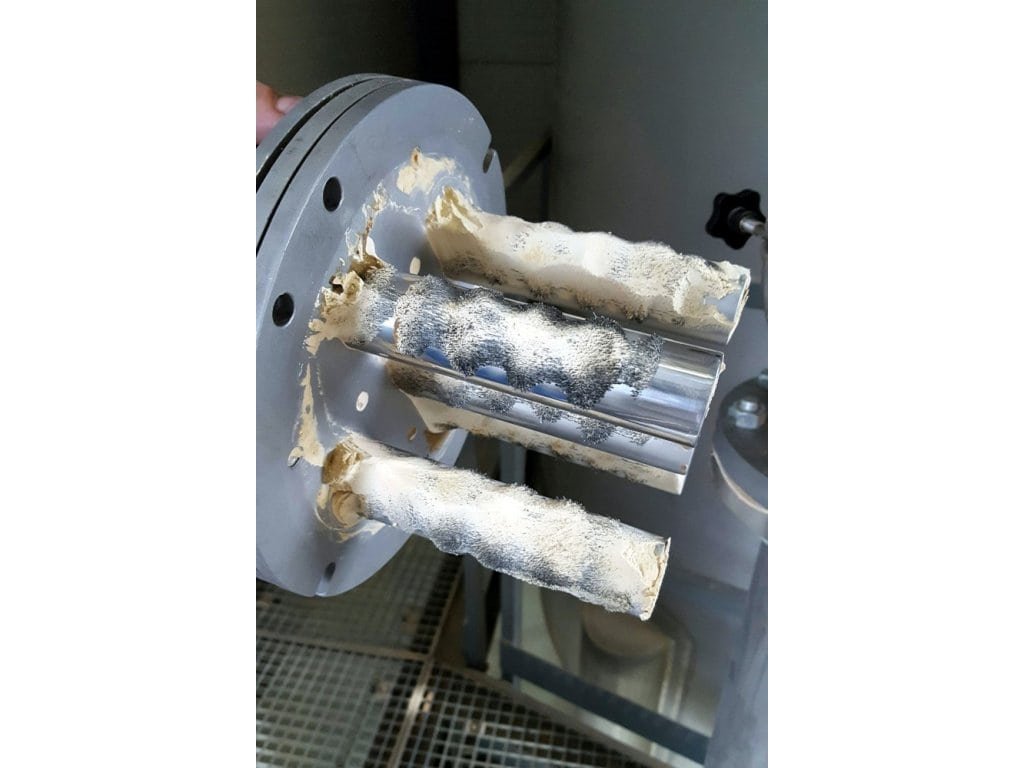

- Capturing Fe particles in size from 1 micron
- Made to measure separator production
Magnetic induction:
13 500 G
Technical parameters:
Application: liquid material, bulk material

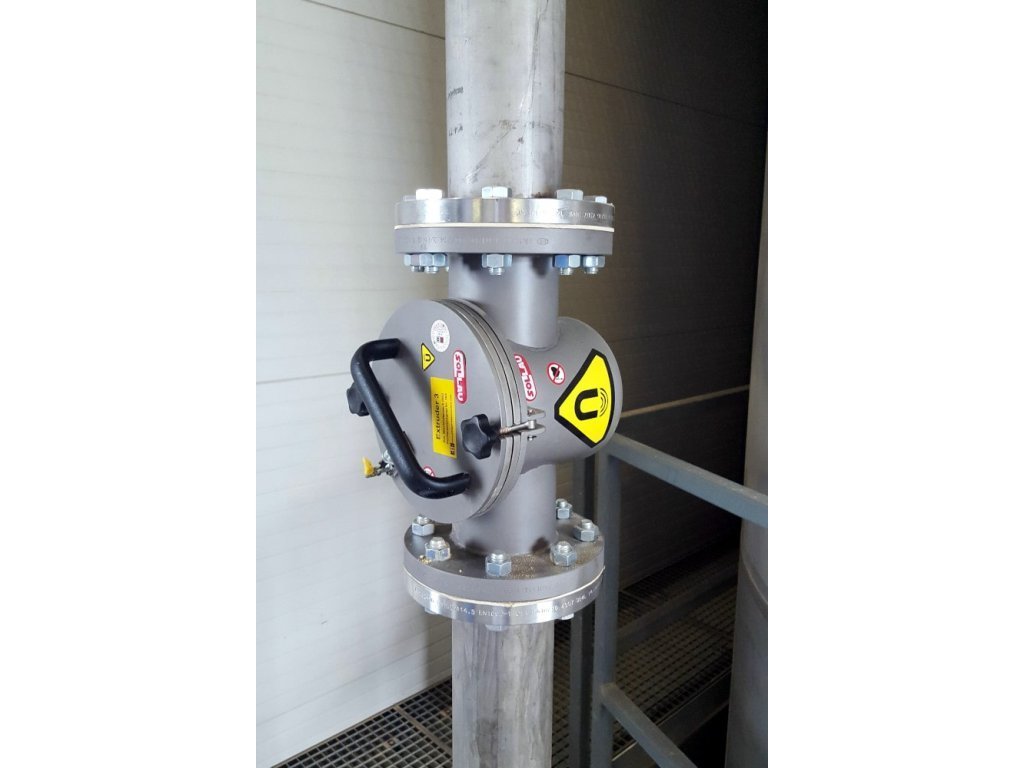

Material flow direction: vertical, horizontal
Operating pressure: max. 10 bar
Max. magnetic induction (G): 13 500 G
Number of magnetic tubes: 3 (MSP-S 50 N) and 5 (MSP-S 100 N)
Connecting dimension, inlet and outlet diameter of the separator: 50 mm (MSP-S 50 N) and 100 mm (MSP-S 100 N)
Minimum size of the particles that can be captured by the separator: 0.03 mm
Max. operating temperature: 80 °C
