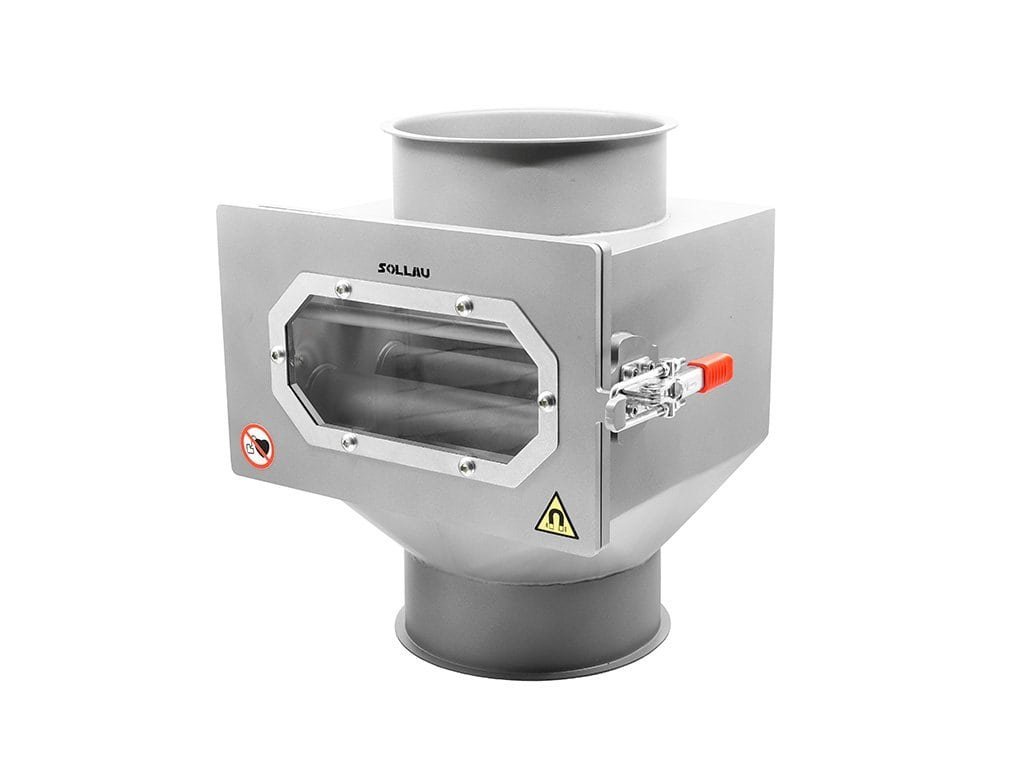

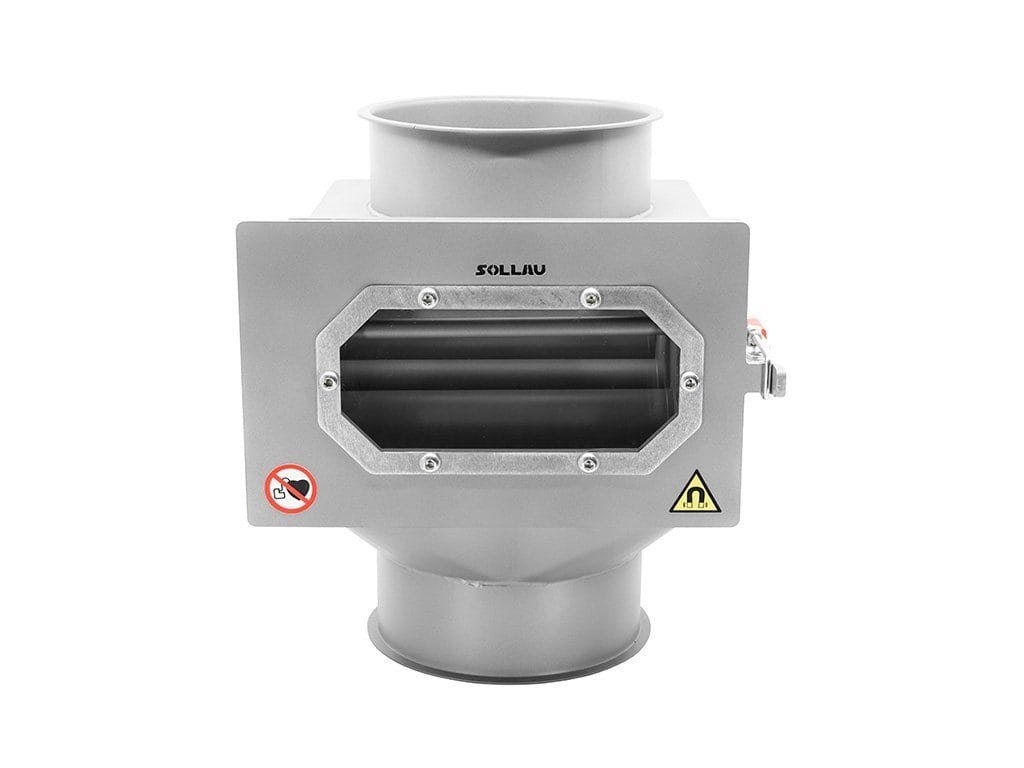

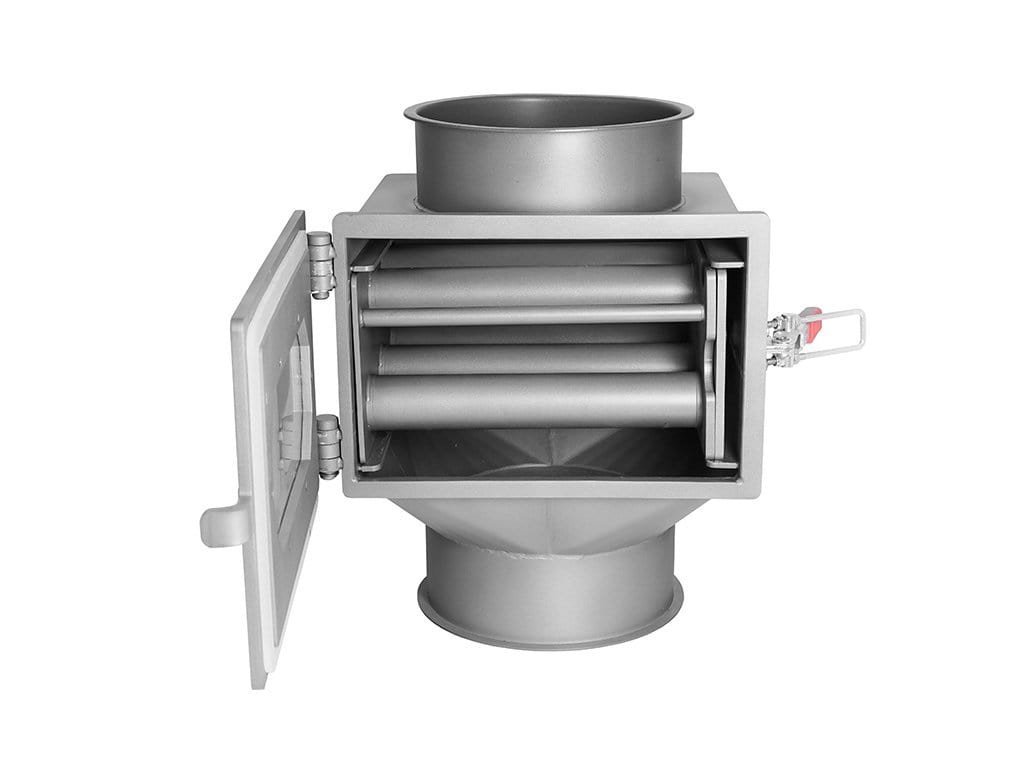

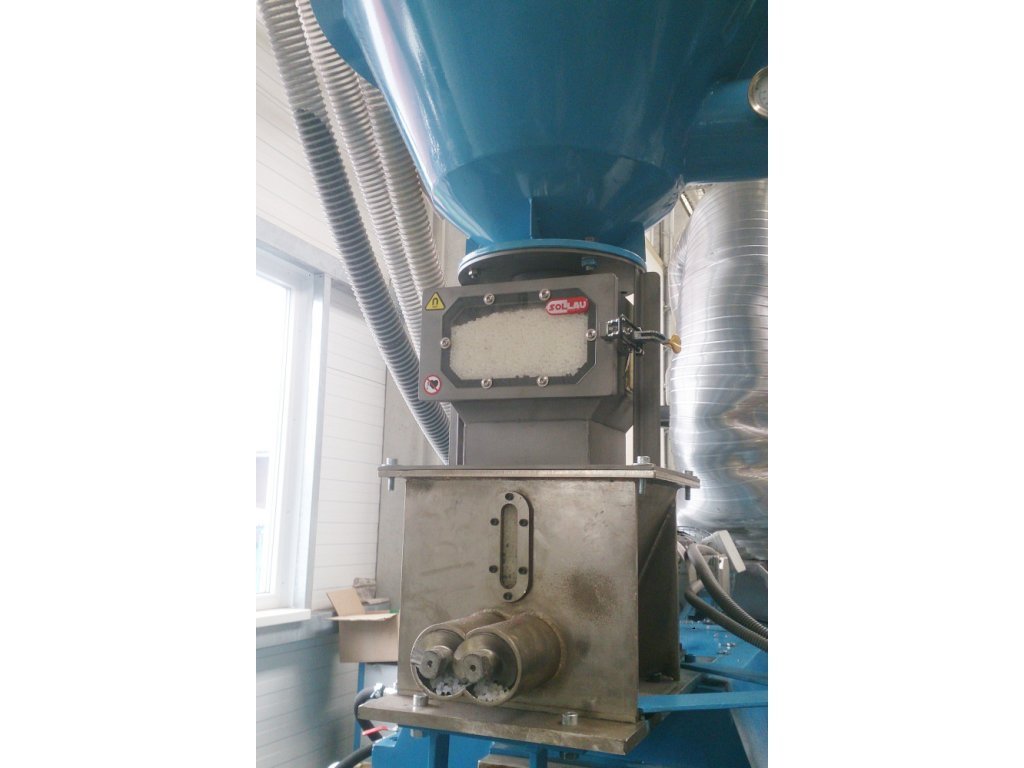

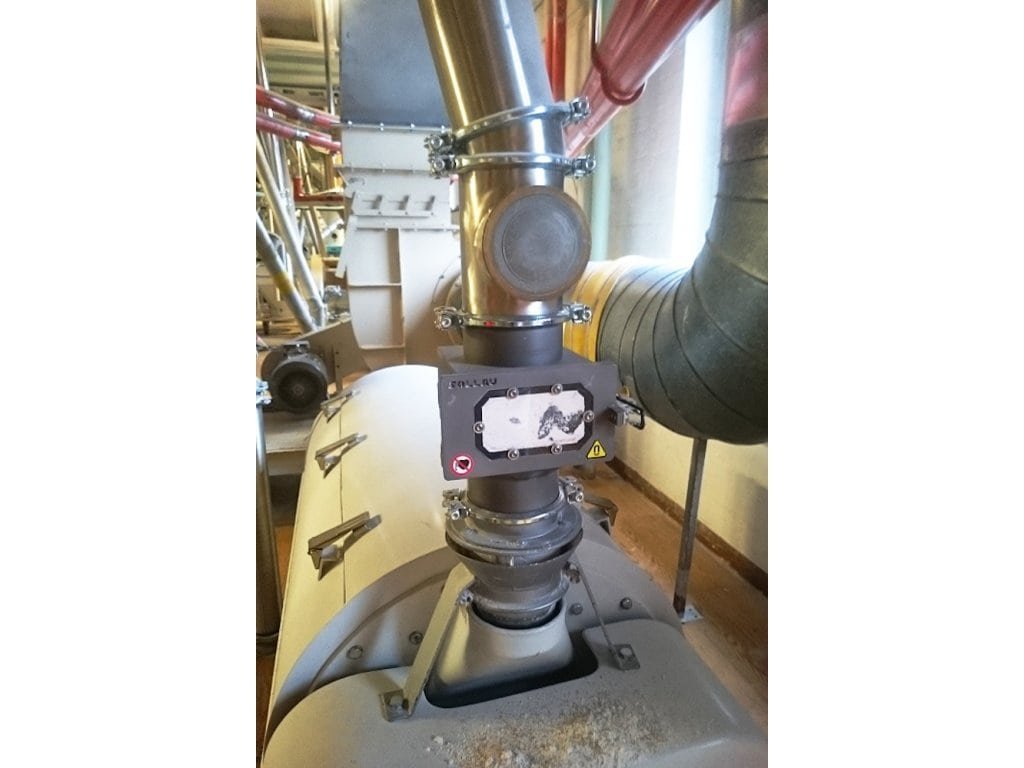

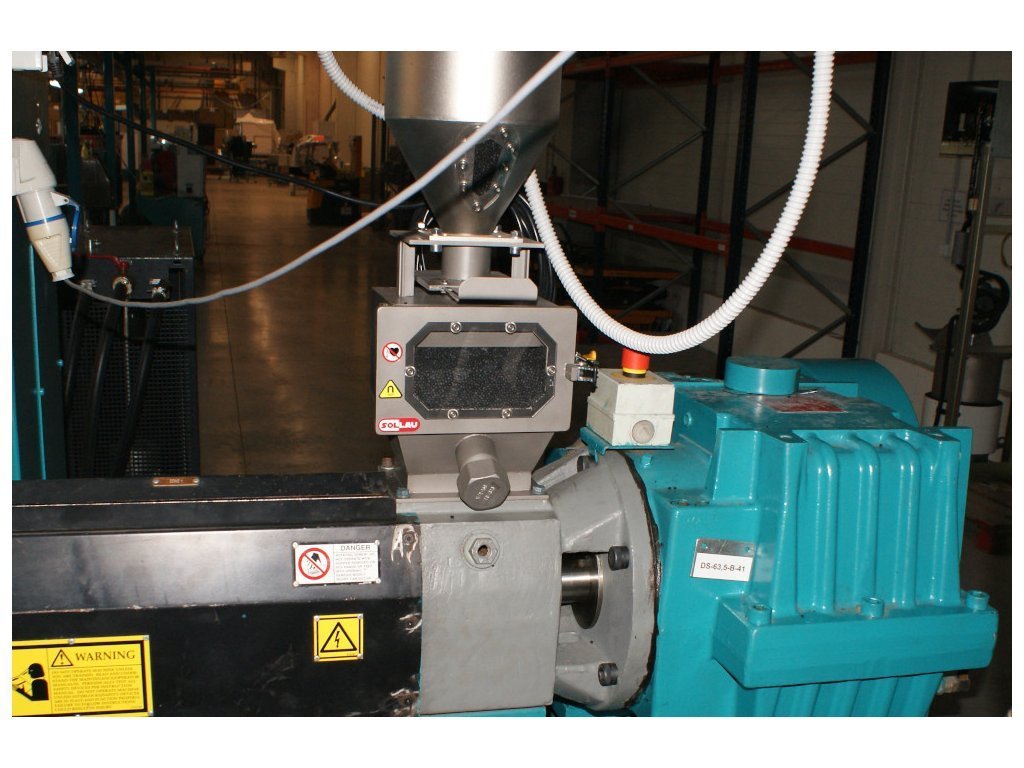

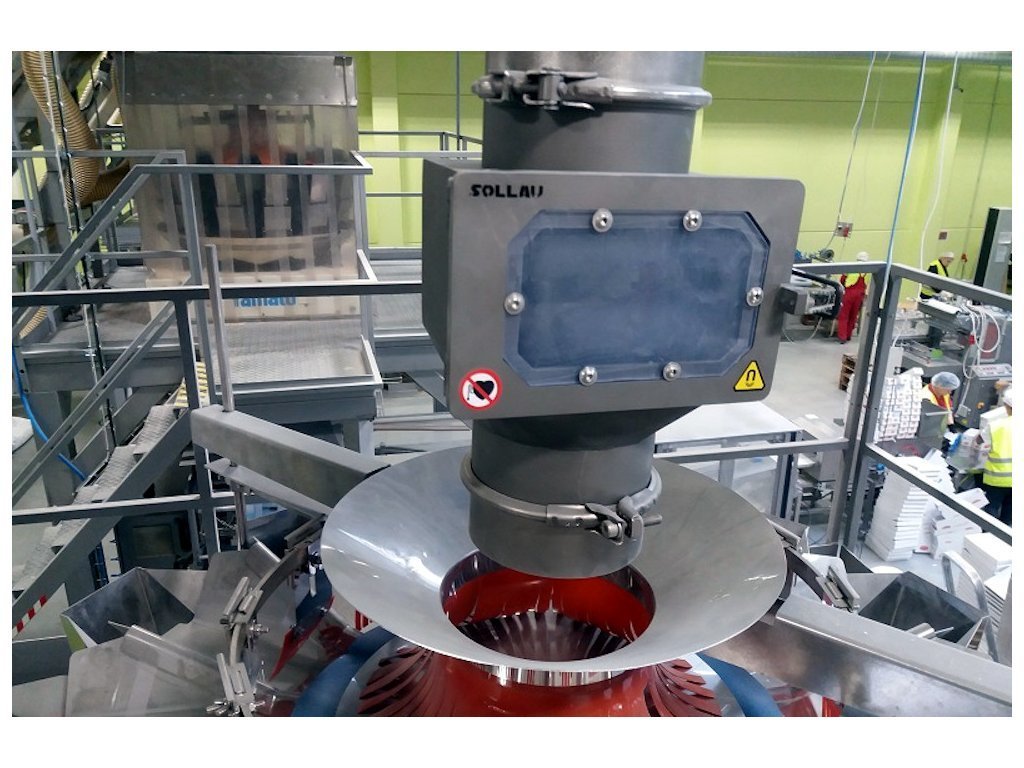

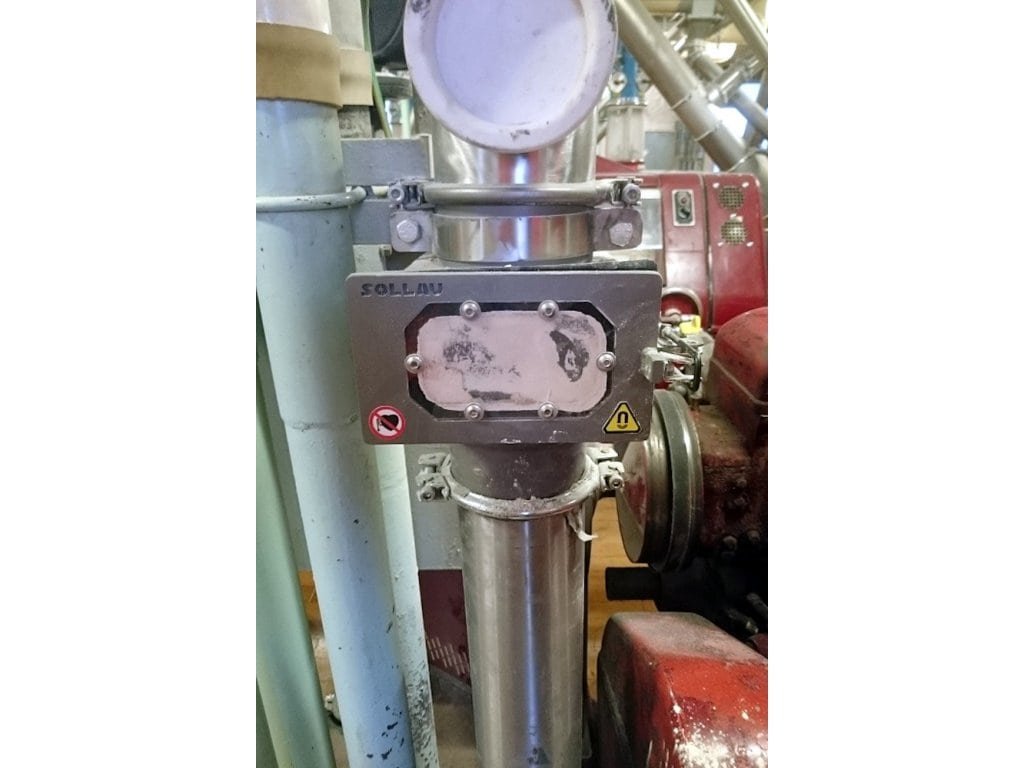

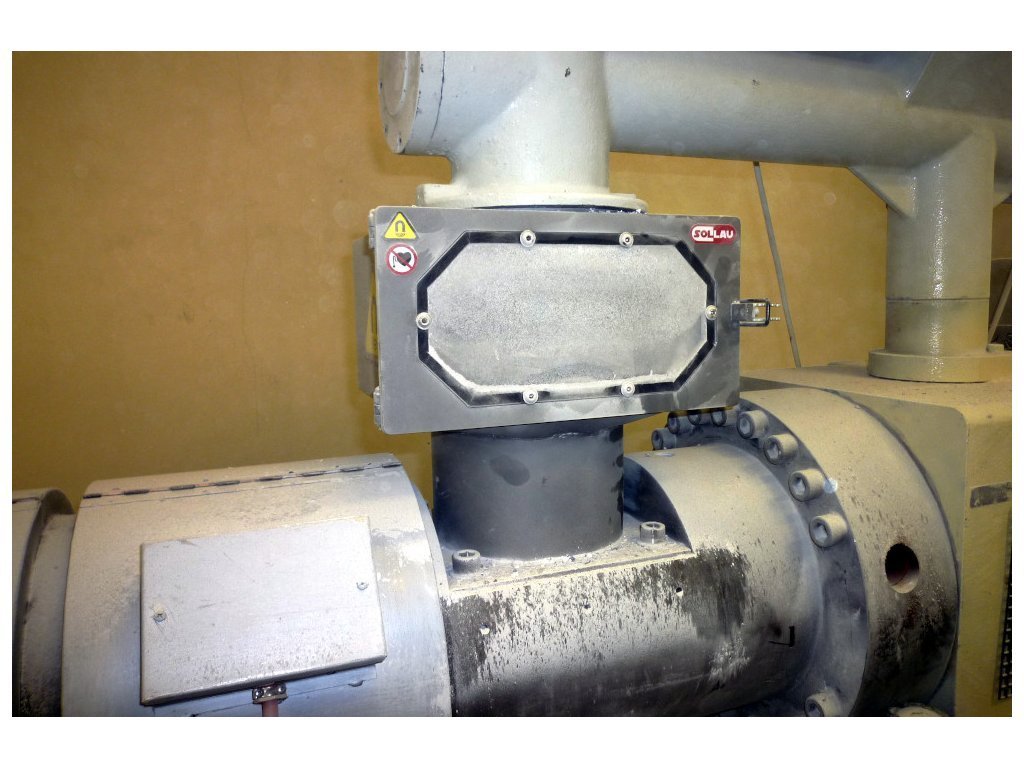

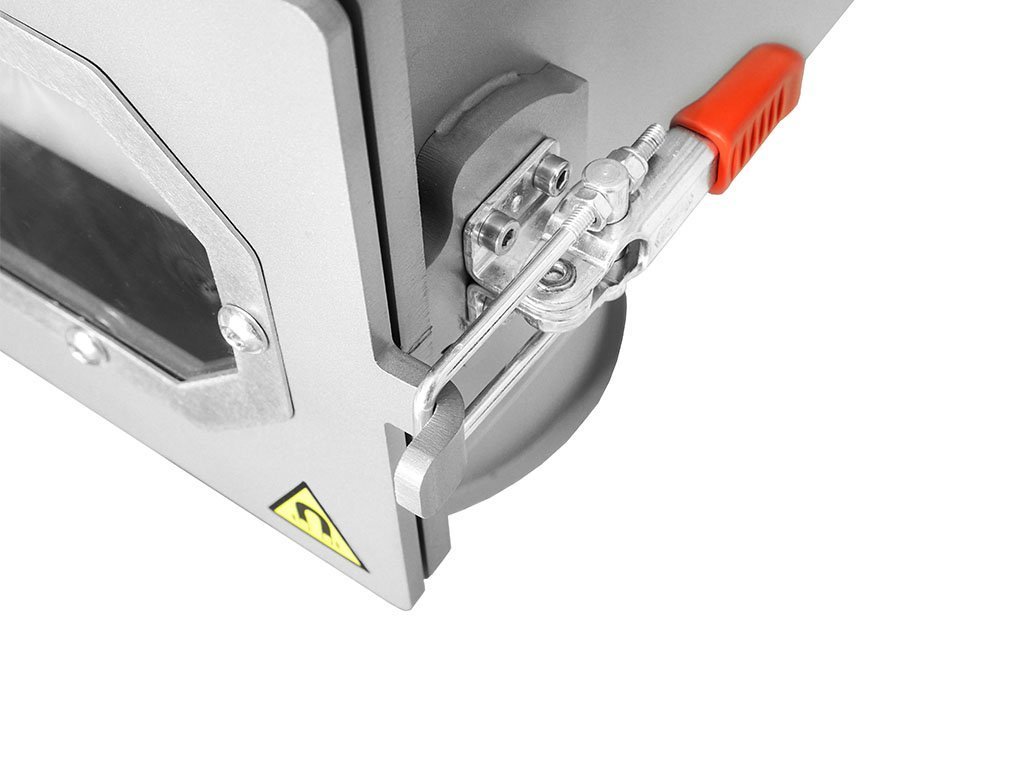

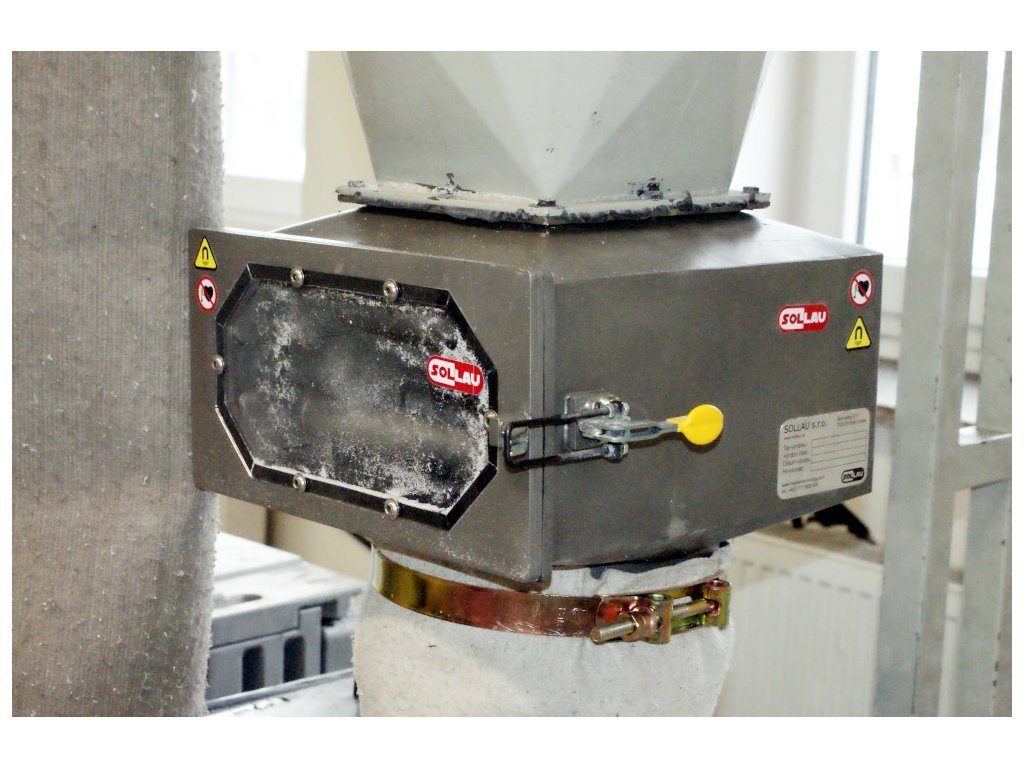

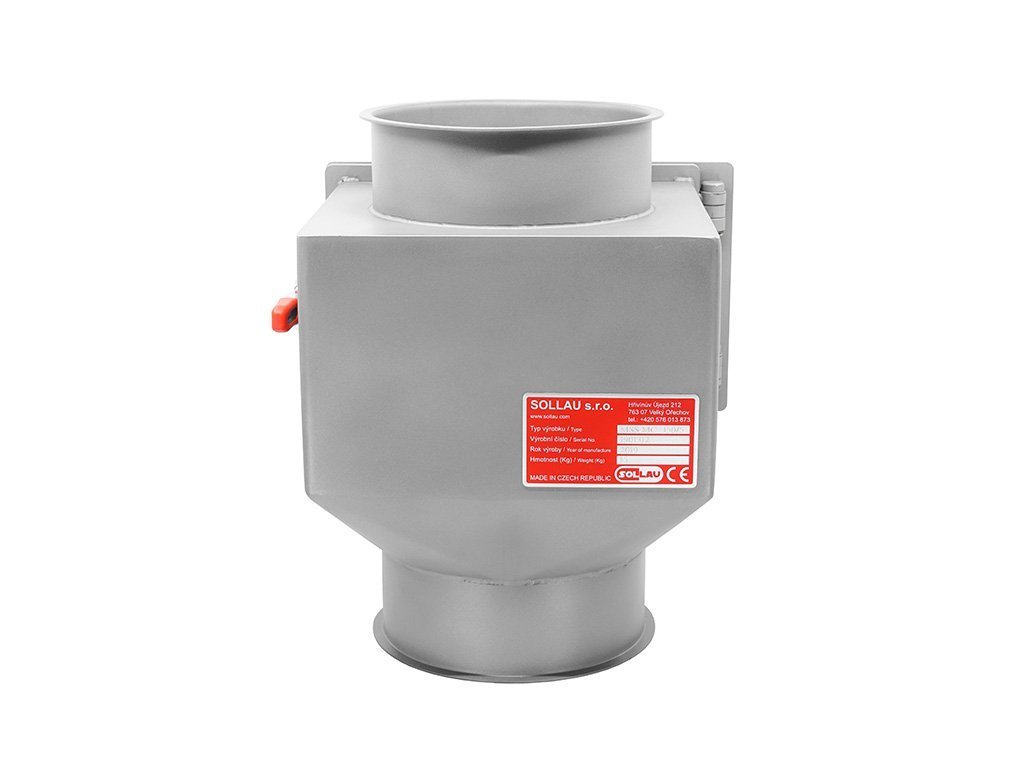

Magnetic grate separator in housing MSS-MC
Code: MSSMC150/5N-141106 MSSMC200/5N-141124 Choose variantProduct detailed description

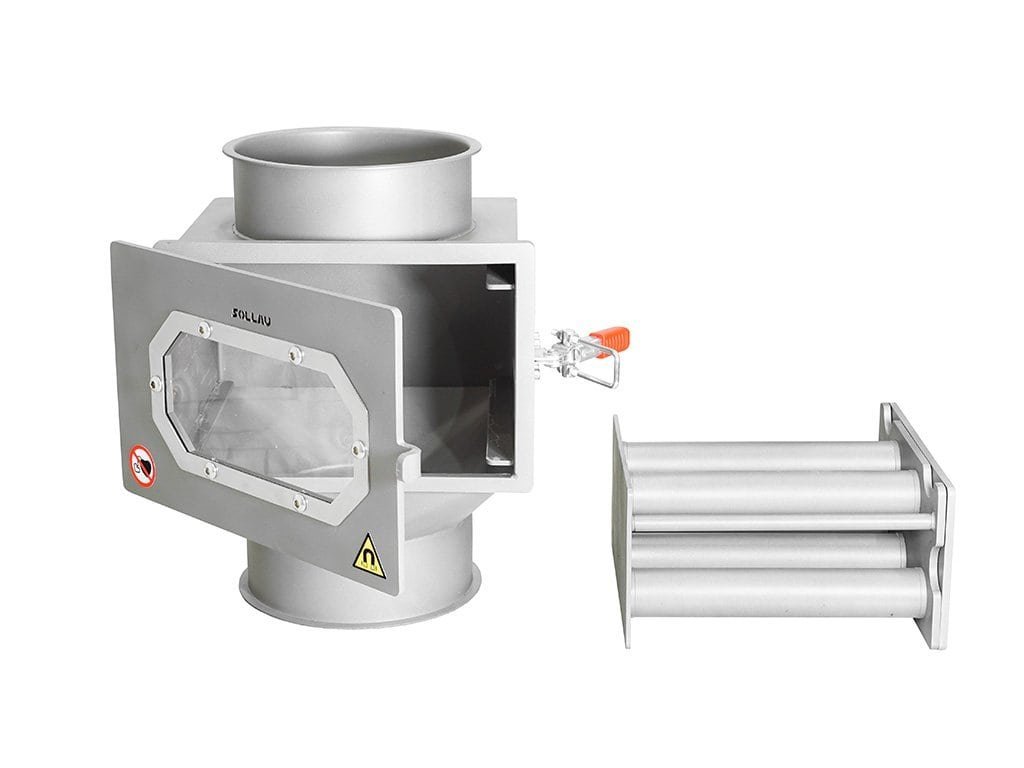

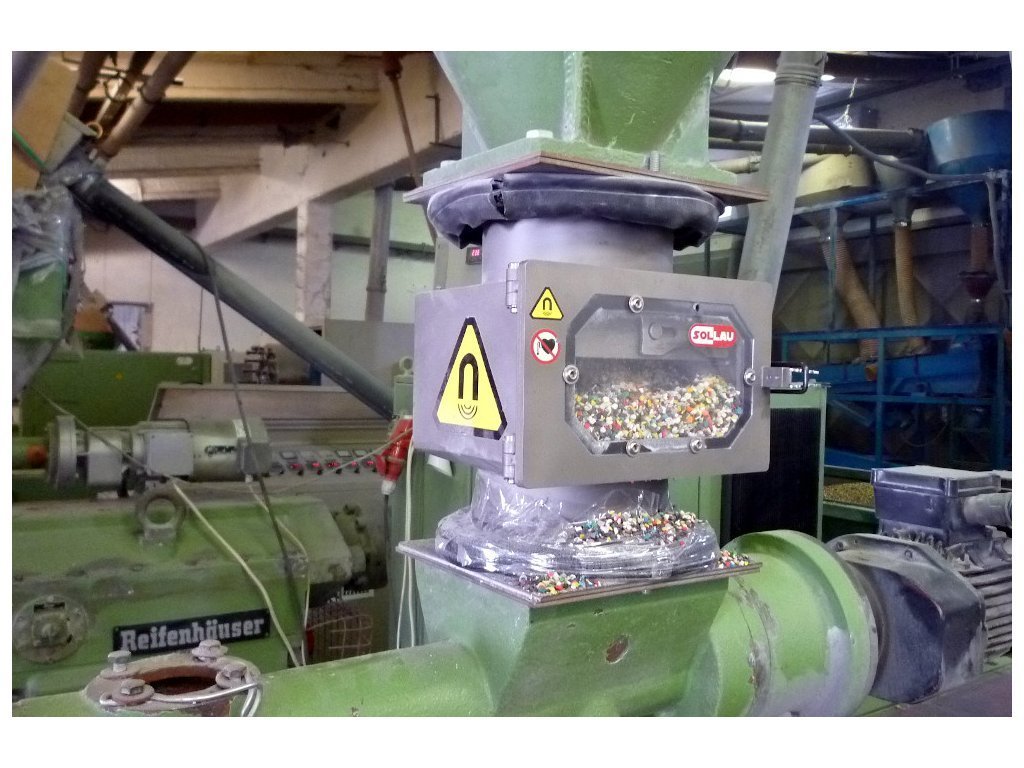

The magnetic grate separator is designed to separate in a quick and easy way magnetic iron contamination from free-flowing substances of good bulk properties.

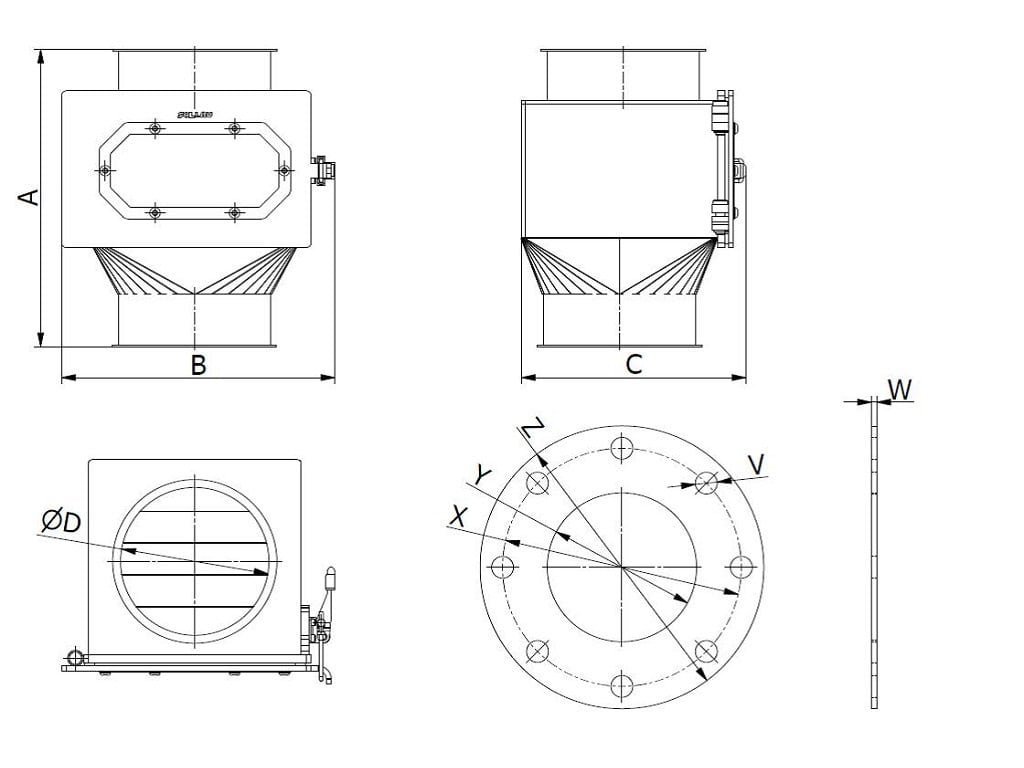

| Model | Max. flow capacity** | Weight (kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Tube diameter (mm) |
Distances between lower tubes (mm) |
Distances between upper tubes (mm) |
Distances between lower and upper tubes (mm) |
| MSS-MC 150/5 N | 7 m3/h | 20 | 300 | 275 | 225 | 149 | 32 | 32 | 32 | 23 |
| MSS-MC 200/5 N | 8 m3/h | 23 | 300 | 320 | 285 | 199 | 32 | 32 | 32 | 23 |
Comment:
** The maximum capacity depends on the type and properties of the material being cleaned
ADVANTAGES
- Easy cleaning
- Interception of Fe particles from 1 micron
- Made-to-measure production of the separator
Magnetic induction:
- 18 700 Gauss on the magnetic core and 12 200 Gauss on the lateral area
Technical parameters:

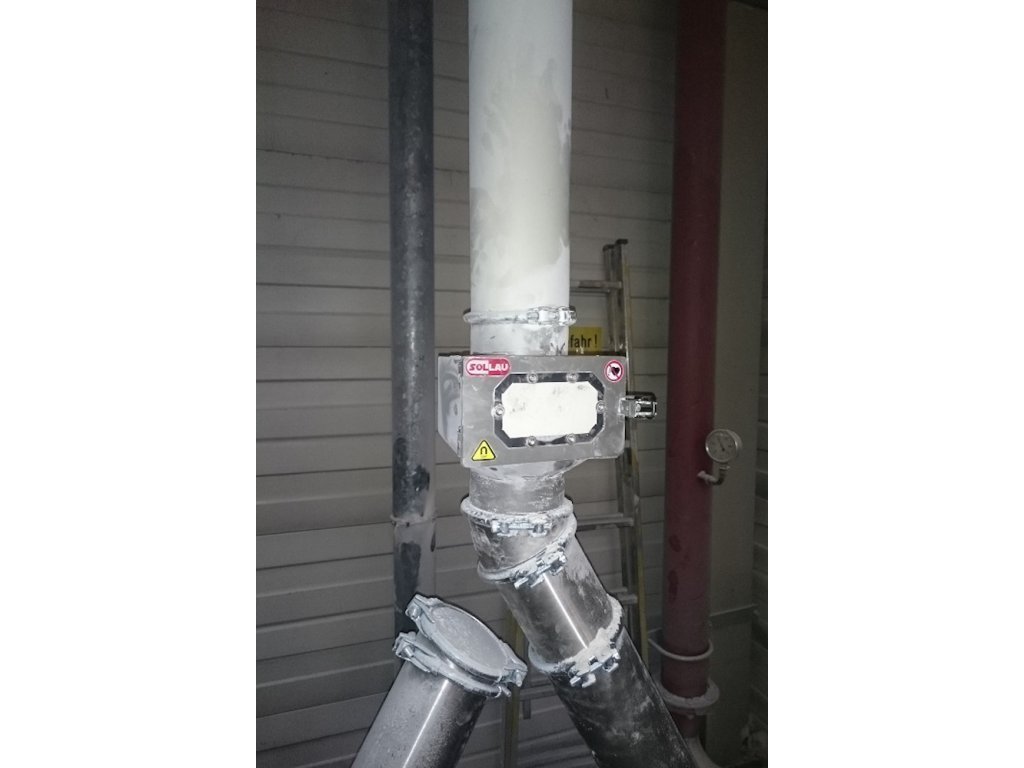

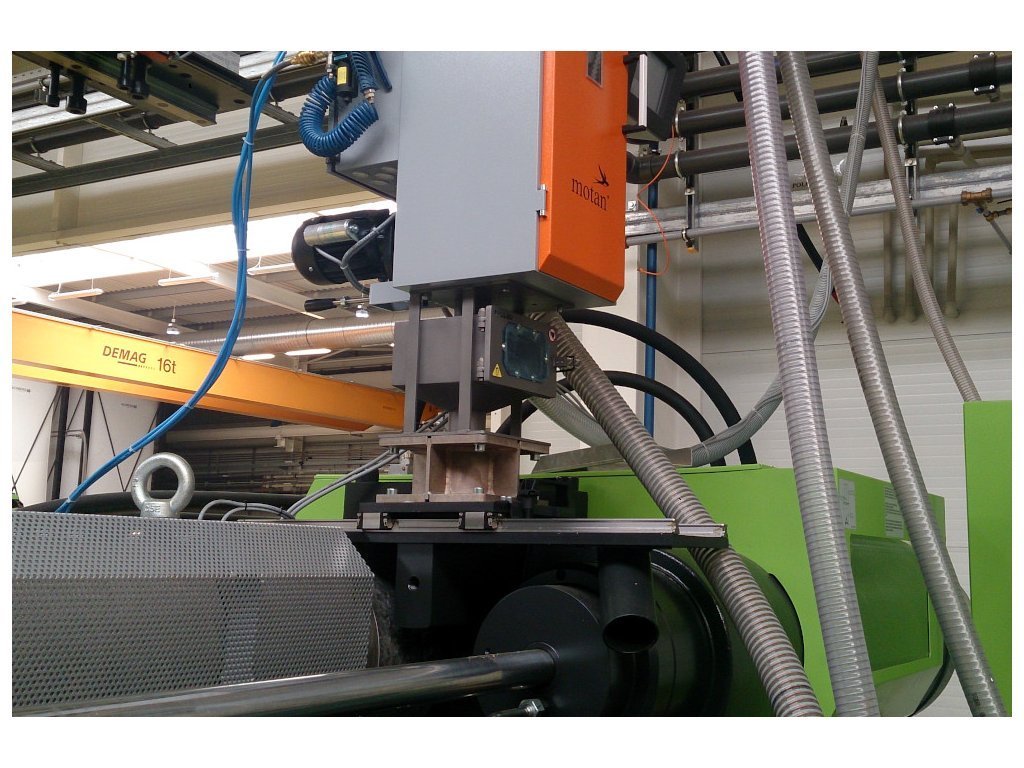

Separator placement: inside of a pipeline
Material flow direction: vertical

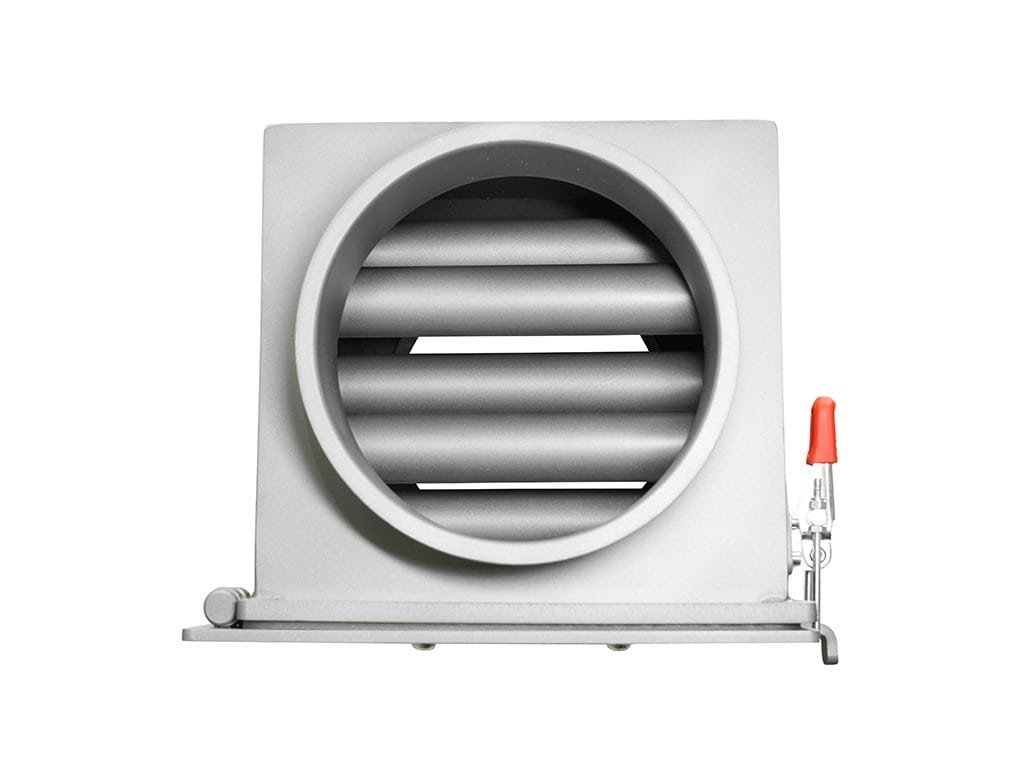

Number of magnetic tubes: 5
Max. magnetic induction (G): 18 700 G
Maximum capacity. The mentioned capacities are informative and non binding: 7 m3/h (MSS-MC 150/5 N) and 9 m3/h (MSS-MC 200/5 N)
Connecting dimension, inlet and outlet diameter of the separator: 150 mm (MSS-MC 150/5 N) and 200 mm (MSS-MC 200/5 N)
Minimum size of the particles that can be captured by the separator: 0.03 mm
Max. operating temperature: 80 °C
Weight of the product: 20 kg (MSS-MC 150/5 N) and 23 kg (MSS-MC 200/5 N)
