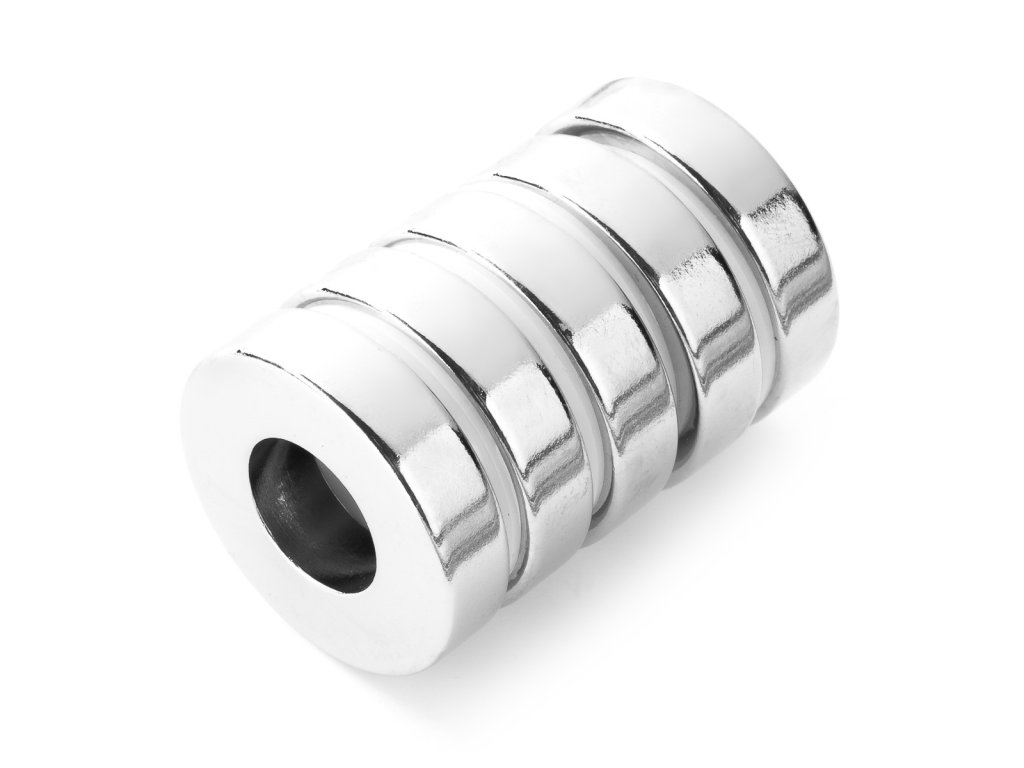

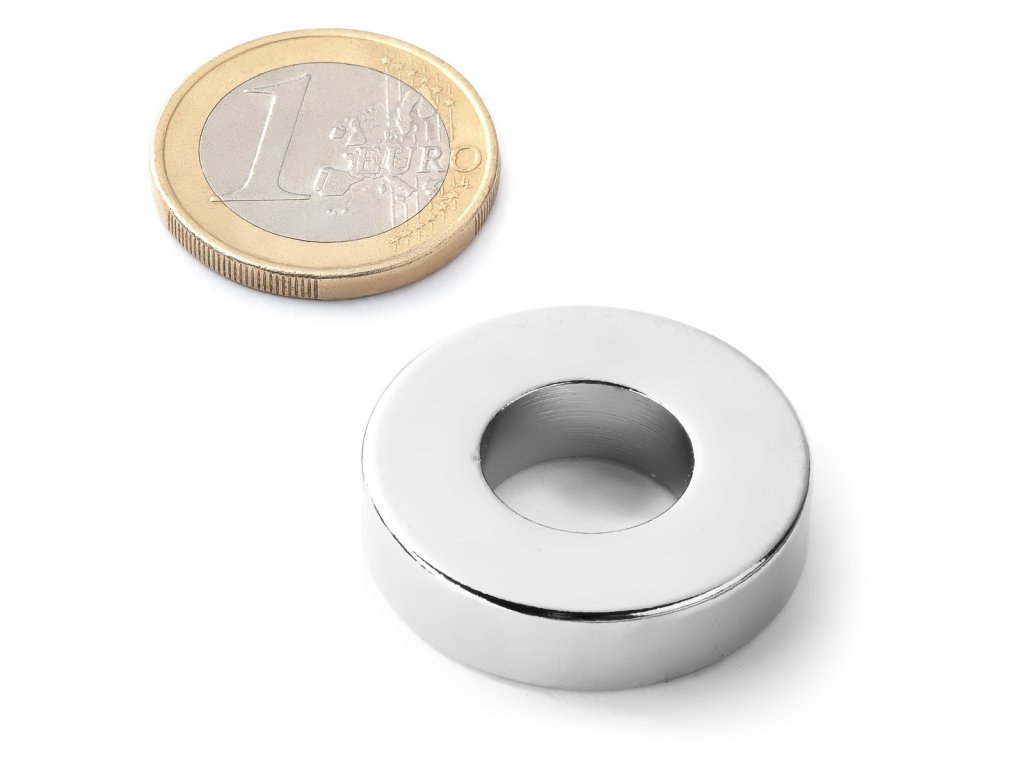

    Neodymium NdFeB ring magnet D 28/13 mm, H 7 mm, N40, nickel

    Code: E101307
    Not rated
    Neodymový magnet mezikruží
    €6,34 / pcs €5,24 excl. VAT
    In Stock
    Diameter D: 28 mm | Diameter D1: 13 mm | H: 7 mm | Pull force: approx. 12 kg (approx. 117.68 N) | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium NdFeB ring magnets
    Type: Neodymium
    Diameter D: 28 mm
    Diameter d1: 13 mm
    Height H (mm): 7 mm
    Magnetization: Axial with height
    Pull force (cca 1kg ~ 10N): 117.68 N
    Pull force 2: approx. 12 kg (approx. 117.68 N)
    Quality: N40
    Surface: nickel (Ni-Cu-Ni)
    Temperature (°C): 80 °C
    Tolerance: +/- 0,1 mm
    Weight (g): 26 g
