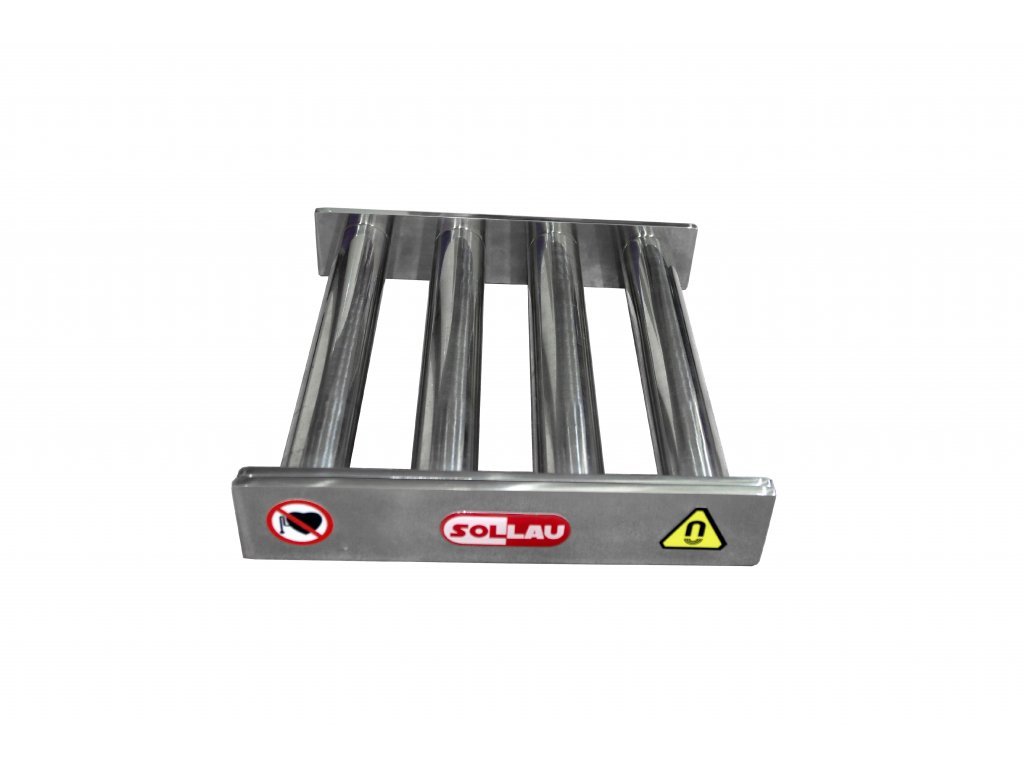

Magnetic grate MR-TT

Code: MR-TT 100X100 N MR-TT 150X150 N MR-TT 200X200 N MR-TT 250X250 N MR-TT 300X200 N MR-TT 300X300 N MR-TT 350X350 N Choose variant

Not rated

€162,41 €362,65 €656,29 €1 027,80 €992,20 – €2 013,31 from €162,41 –10 % –10 % –10 % –10 % –10 % - –10 % up to –10 %

€162,41 €362,65 €656,29 €1 027,80 €992,20 – €2 013,31 from €162,41 –10 % –10 % –10 % –10 % –10 % - –10 % up to –10 % €146,17 / pcs €326,39 / pcs €590,66 / pcs €925,02 / pcs €892,98 / pcs €1 538,57 / pcs €1 811,98 / pcs from €146,17 / pcs €120,80 excl. VAT €269,74 excl. VAT €488,15 excl. VAT €764,48 excl. VAT €738 excl. VAT €1 271,55 excl. VAT €1 497,50 excl. VAT from €120,80 excl. VAT

Choose variant

Variant

Pull-out system for easy cleaning | Temperature resistance: 80 °C | Magnetic induction: 9000 Gs

Detailed information

Description

Product detailed description

MODEL	L (mm)	W (mm)	NUMBER OF TUBES	SPACE BETWEEN TUBES (mm)	MAGNETIC INDUCTION	SURFACE TREATMENT	WORKING TEMPERATURE
MR-TT 100x100 N	100	100	2	22	9000 Gs	polishing	<80°C
MR-TT 150x150 N	150	150	3	22	9000 Gs	polishing	<80°C
MR-TT 200x200 N	200	200	4	22	9000 Gs	polishing	<80°C
MR-TT 250x250 N	250	250	5	22	9000 Gs	polishing	<80°C
MR-TT 300x200 N	300	200	4	22	9000 Gs	polishing	<80°C
MR-TT 300x300 N	300	300	6	22	9000 Gs	polishing	<80°C
MR-TT 350x350 N	350	350	7	22	9000 Gs	polishing	<80°C

Magnetic tubes with the slide-out system for easy cleaning
Magnetic cores are closed in a stainless steel case - easy maintenance and washability, prevention of damage to magnetic cores
Strong neodymium NdFeB magnets
Magnetic induction on the tube surface 9000 Gaussů
Polished surface
Heat resistance of magnets up to 80°C in standard design
Stainless steel DIN 1.4301
