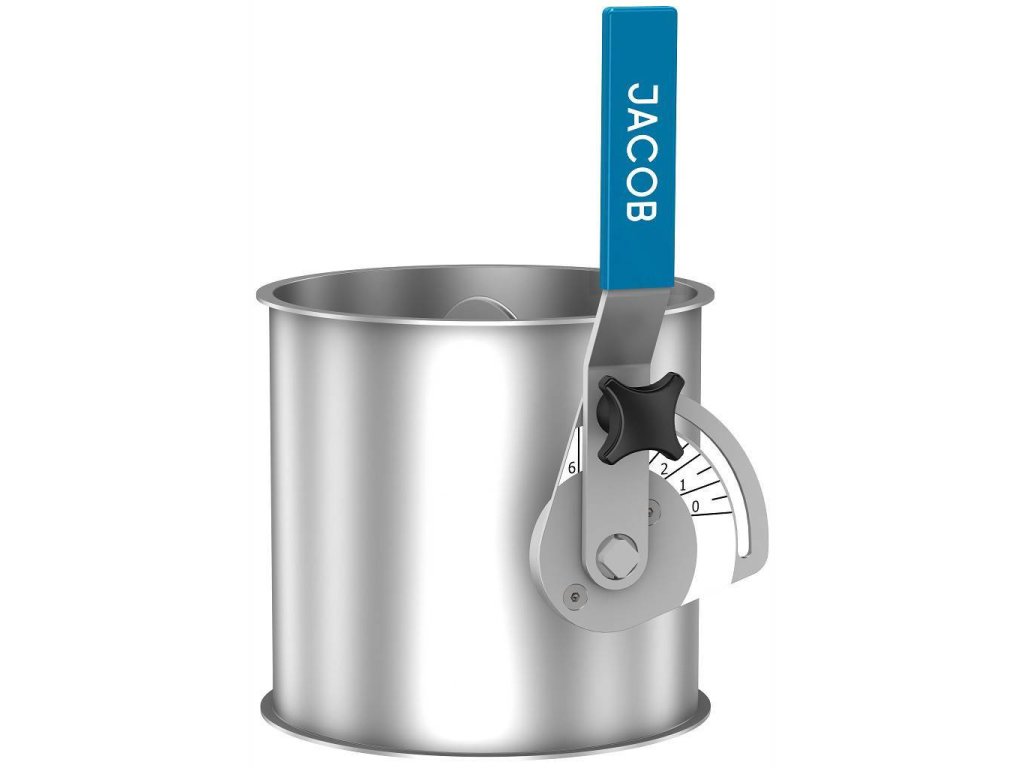

    Throttle valves JACOB, hand-operated

    Code: E915062 E915063 E915064 E915065 E915066 E915067 E915068 E915069 E915070 Choose variant
    Not rated
    Throttle valves JACOB_01
    €139,84 / pcs €161,96 / pcs €174,08 / pcs €209,80 / pcs €274,33 / pcs €274,33 / pcs €306,61 / pcs €348,98 / pcs €387,27 / pcs from €139,84 / pcs €115,57 excl. VAT €133,85 excl. VAT €143,87 excl. VAT €173,39 excl. VAT €226,72 excl. VAT €226,72 excl. VAT €253,40 excl. VAT €288,41 excl. VAT €320,06 excl. VAT from €115,57 excl. VAT
    Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.

    DN 100 | DN 120 | DN 150 | DN 200 | DN 224 | DN 250 | DN 300 | DN 350 | DN 400

    Detailed information

    Product detailed description

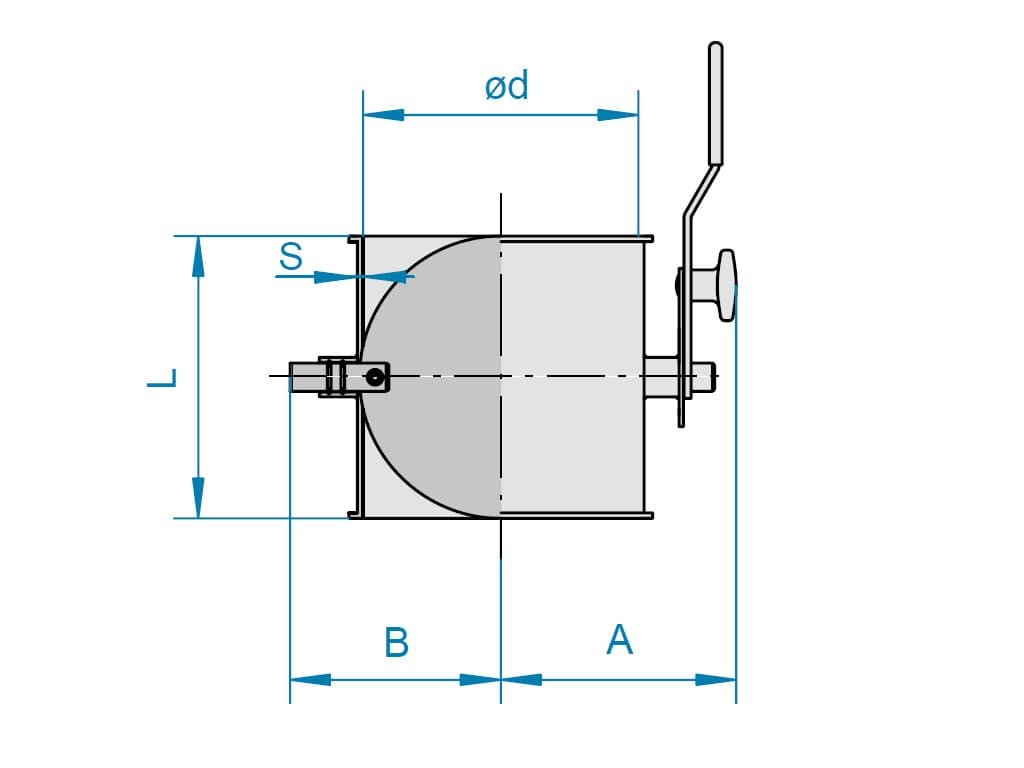

    MODELL
    Ø d (mm)
    A (mm)
    		 B (mm) L (mm) S (mm) Weight (kg)
    Item no.
    DN 100
    		 100 101 85 100 1,5 1,10 11102566
    DN 120
    		 120 124 103 120 1,5 1,90 11122560
    DN 150
    		 150 139 118 150 1,5 2,40 11152560
    DN 200
    		 200 164 143 200 1,5 3,50 11202560
    DN 224 220 174 153 200 1,5 3,90 11222560
    DN 250 250 189 168 200 1,5 1,50 11252560
    DN 300 300 214 193 200 1,5 5,50 11302560
    DN 350 350 239 218 200 1,5 7,50 11352560
    DN 400 399 264 242 200 1,5 9,00 11402560
    • Larger diameters available on request

    • For manual continuous flow regulation

    • Galvanised
