    Drilled flanges JACOB nach DIN 24154

    Code: E915029 E915030 E915031 E915032 E915033 Choose variant
    Not rated

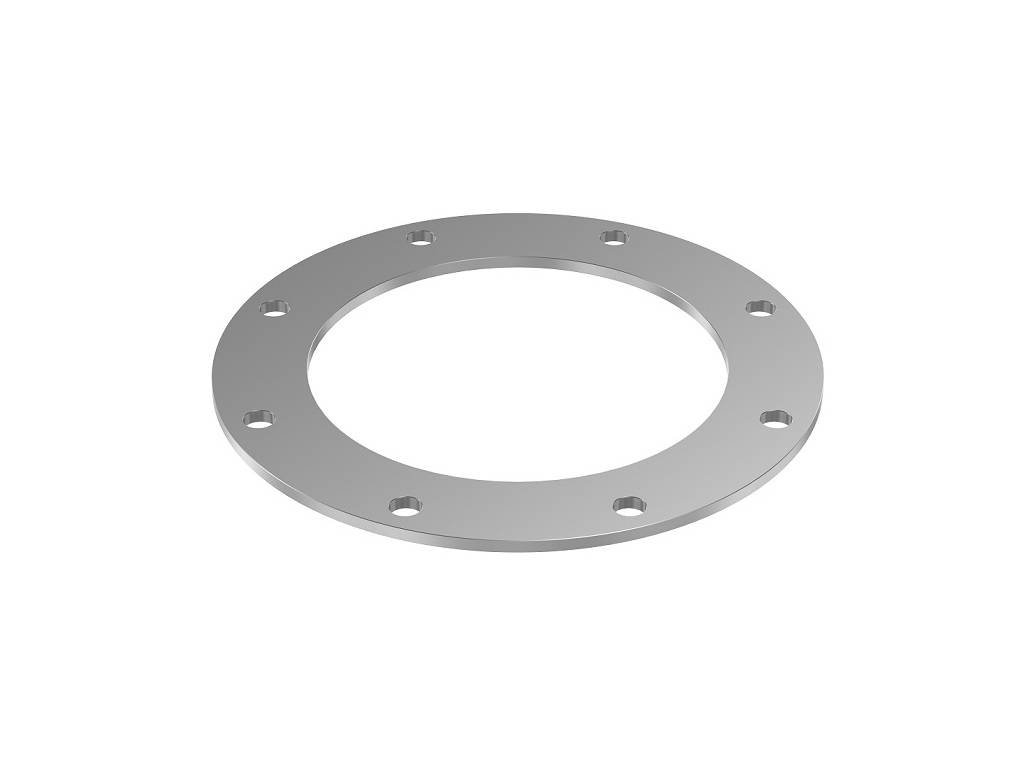

    Flanges_01
    €43,84 / pcs €45,59 / pcs €54,57 / pcs €64,57 / pcs €74,69 / pcs from €43,84 / pcs €36,23 excl. VAT €37,68 excl. VAT €45,10 excl. VAT €53,36 excl. VAT €61,73 excl. VAT from €36,23 excl. VAT
    In Stock Out of stock In Stock In Stock In Stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.
    Delivery to:
    14.11.2025 - 14.11.2025 14.11.2025 14.11.2025 Choose variant

    T2 DN 100 | T2 DN 120 | T2 DN 150 | T2 DN 200 | T2 DN 250

    Detailed information

    Product detailed description

    MODELL
    Ø d (mm)
    Ø A (mm)
    		 Ø B (mm) Ø C (mm) E (mm) S (mm) Weight (kg)
    Item no.
    T2 DN 100
    		 105 139 165
    9,5
    		 4
    5
    0,46
    		 10103711
    T2 DN 120
    		 125 165 185 9,5 4
    5
    0,57
    		 10123711
    T2 DN 150
    		 155 200 225 11,5 8
    5
    0,78
    		 10153711
    T2 DN 200
    		 205 241 275 11,5 8
    5
    0,99
    10203711
    T2 DN 250 255 292 325 11,5 8 5 1,21 10253711
    • Similar to DIN 24154-2

    • For nominal diameters DN 120, 150, 175, 300 and 350 mm, the hole diameter and number of holes have been adapted to the next higher standard diameter (120=125, 150=160, 175=180, 300=315, 350=355 mm)

    • For nominal diameters 80, 100, 140, 160, 200, 224, 250, 400, 450, 500, 560, 630, 710 and 800 the pitch circle diameter, the hole diameter and the number of holes conform to DIN 24154-2

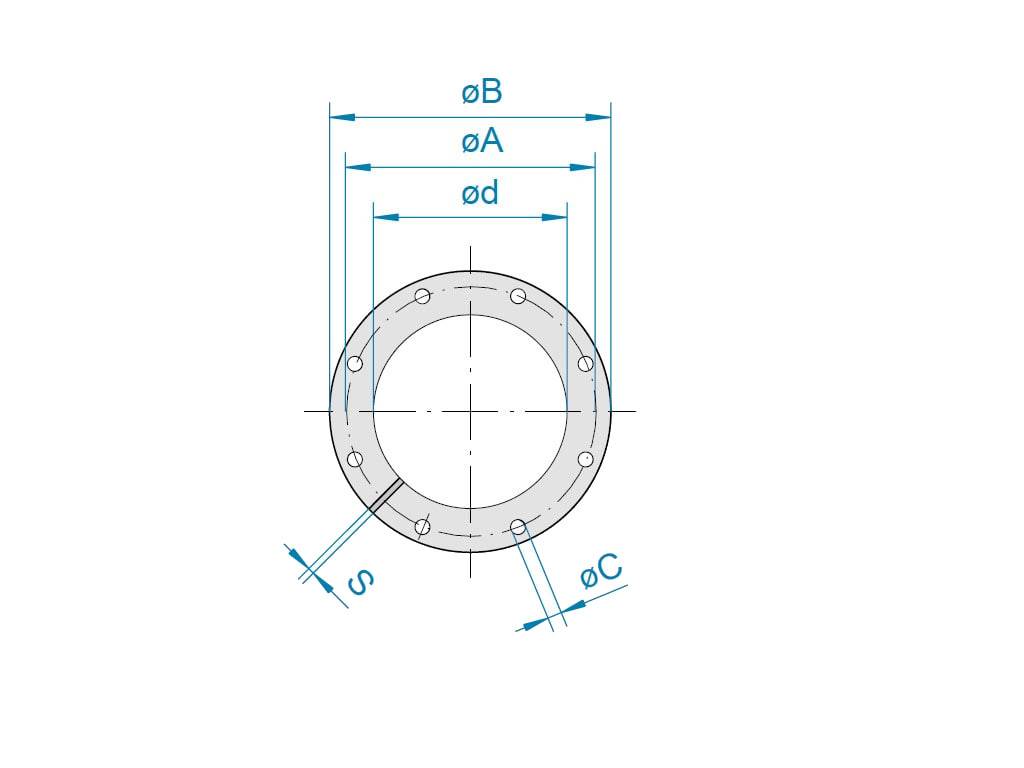

    		 vrtana-priruba-jacob-min
