Metal disc – screw-on counterpart 34x3 mm

Product detailed description

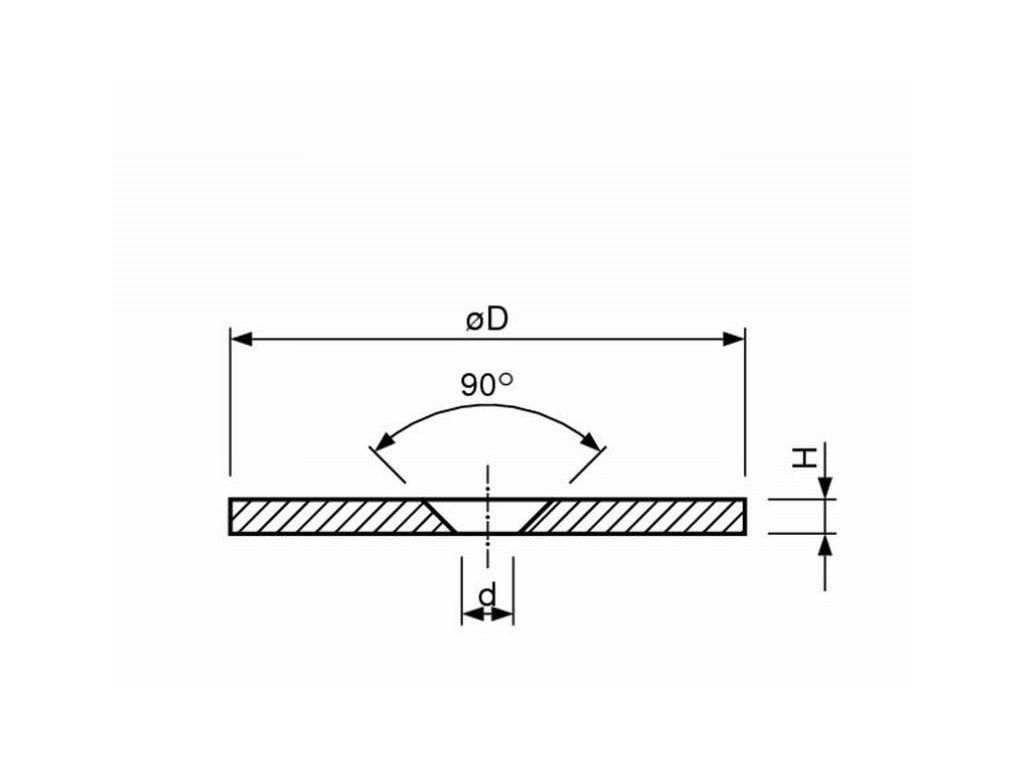

A zinc-plated steel base 34 mm in diameter and 3 mm thick, 5.5 mm inner hole, weight 20 g. A screw-on metal disc counterpart for magnets and pot magnets approximately 31–34 mm across. The combination of a larger diameter and 3 mm thickness closes the magnetic flux well even with stronger neodymium magnets.

1. Which magnets is the 34x3 mm size intended for?
   Magnets and pot magnets roughly 31–34 mm in diameter, for example 32 mm brass pot magnets or plastic magnets with a 31 mm rubber-coated contact face.

2. Is it a magnet?
   No. It is a zinc-plated steel disc counterpart with no magnetic field of its own.

3. How much does the 34x3 mm steel base weigh and why does it matter?
   20 g. On fixed installations the weight is irrelevant, but on portable and pivoting parts it counts towards the total load on the structure.

4. How do you fit the 34x3 mm metal disc counterpart correctly?
   Pre-drill the substrate, position the disc and screw it down with a countersunk screw so that the head sits in the countersink and the steel base seats over its whole area.

5. Can this steel disc counterpart be glued instead of screwed?
   It is designed for a screw. If you need a bonded joint, choose the version with double-sided adhesive tape in the matching diameter.

6. Can the 34x3 mm size be used on furniture doors?
   Yes, that is one of its typical uses — the steel base is screwed to the door and the magnet into the carcass, or the other way round. Always check that the screw does not come through to the visible side.
