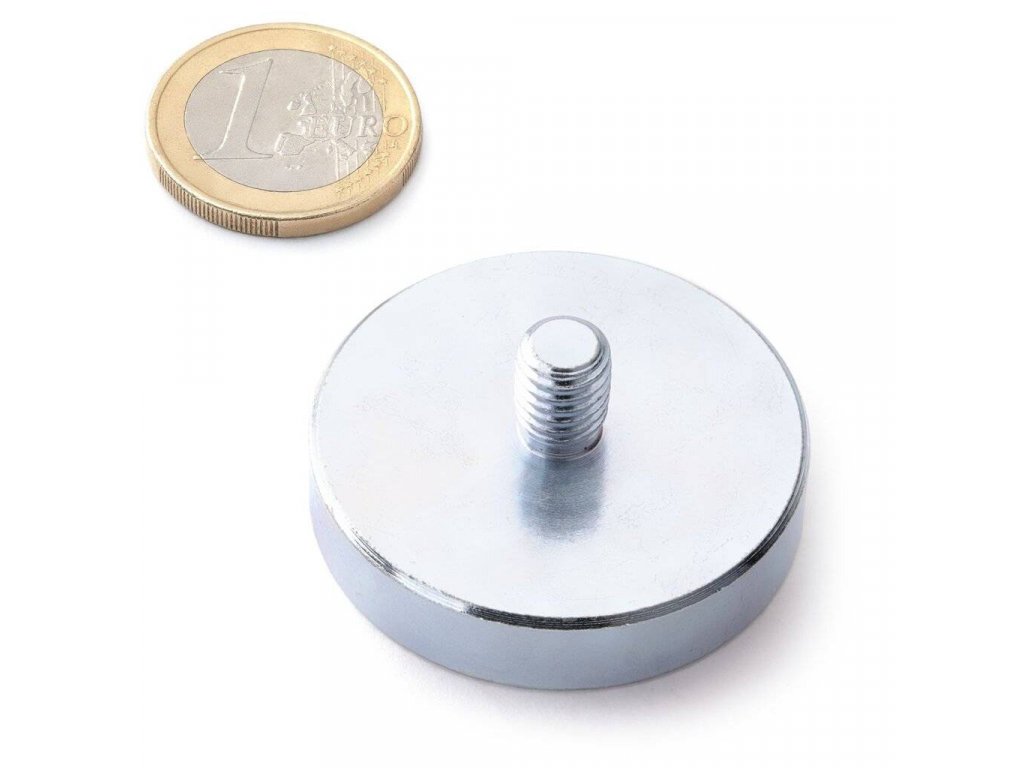

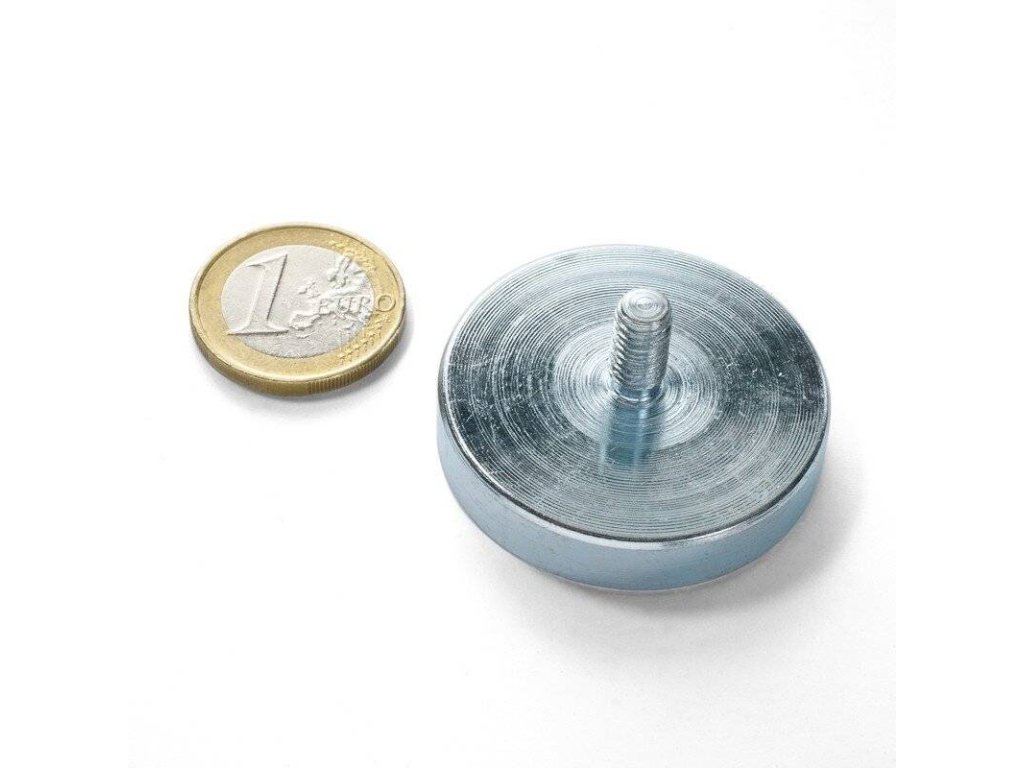

NdFeB pot magnet with external thread 40x20x8 mm
Code: E101369Product detailed description
.Additional parameters
| Category: | Neodymium pot magnets with external thread |
|---|---|
| Weight: | 0.085 kg |
| Diameter D: | 40 mm |
| Height H: | 8 mm |
| Pull force (cca 1kg ~ 10N): | 800 N |
| Shape: | Disc |
| Pull force (kg): | 80 kg |
| Dimensions: | Ø 40 mm, Výška 8/20 mm |
| D: | 40 mm |
| H1: | 8 mm |
| H2: | 20 mm |
| M: | M8 |
| Tolerance: | +/- 0,1 mm |
| Magnetization: | Axial with height |
| Quality: | N38 |
| Max. operating temperature: | 80 °C |
| Surface: | Nickel Plated (Ni-Cu-Ni) |
| Material: | Neodymium NdFeB |
