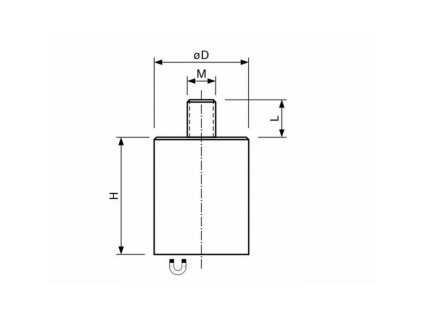

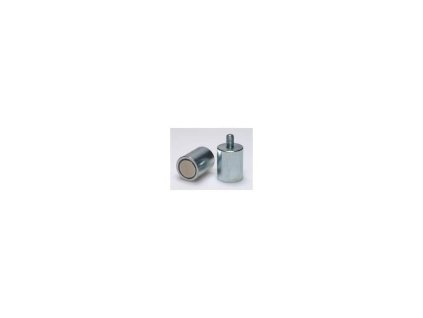

Neodymium deep pot magnets with external thread

Diameter D: 6 mm | H: 20 mm | Pull force: 6 N | Temperature: 80 °C

Diameter D: 8 mm | H: 20 mm | Pull force: 12 N | Temperature: 80 °C

Diameter D: 10 mm | H: 20 mm | Pull force: 24 N | Temperature: 80 °C

Diameter D: 13 mm | H: 20 mm | Pull force: 60 N | Temperature: 80 °C

Diameter D: 16 mm | H: 20 mm | Pull force: 90 N | Temperature: 80 °C

Diameter D: 20 mm | H: 25 mm | Pull force: 135 N | Temperature: 80 °C

Diameter D: 25 mm | H: 35 mm | Pull force: 190 N | Temperature: 80 °C

Diameter D: 32 mm | H: 40 mm | Pull force: 340 N | Temperature: 80 °C

Diameter D: 40 mm | H: 50 mm | Pull force: 700 N | Temperature: 80 °C

Diameter D: 50 mm | H: 60 mm | Pull force: 1000 N | Temperature: 80 °C

Diameter D: 63 mm | H: 65 mm | Pull force: 1700 N | Temperature: 80 °C
