Neodymium rare earth NdFeB magnets, Page 11

Diameter D: 22 mm | H: 2 mm | Pull force: approx. 2,8 kg (approx. 27.46 N) | Temperature: 80°C

Dimensions: 30x15x2 mm | Pull force: approx. 3,3 kg (approx. 32.36 N) | Temperature: 80°C

Diameter D: 15 mm | H: 5 mm | Pull force: approx. 4,3 kg (approx. 42.17 N) | Temperature: 80°C

Diameter D: 14 mm | Diameter D1: 3 mm | H: 7 mm | Pull force: approx. 5,2 kg (approx. 51 N) | Temperature: 80 °C

Dimensions: 10x5x20 mm | Pull force: approx. 2,9 kg (approx. 28.44 N) | Temperature: 80°C

Dimensions: 20x10x5 mm | Pull force: approx. 6,4 kg (approx. 62.76 N) | Temperature: 80°C

Dimensions: 40x7x3 mm | Pull force: approx. 4,8 kg (approx. 47.07 N) | Temperature: 80°C

Diameter D: 12 mm | H: 10 mm | Pull force: approx. 5,1 kg (approx. 50.01 N) | Temperature: 80°C

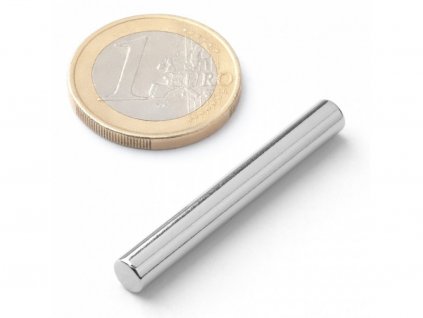

Diameter D: 5 mm | H: 40 mm | Pull force: approx. 1200 g | Temperature: 80°C

Dimensions: 20x10x5 mm with hole M3.5 | Pull force: approx. 5,4 kg (approx. 52.96 N) | Temperature: 80°C

Diameter D: 12 mm | Diameter D1: 5 mm | H: 10 mm | Pull force: approx. 4,5 kg (approx. 44.13 N) | Temperature: 80 °C

Diameter D: 25 mm | H: 2 mm | Pull force: approx. 3,2 kg (approx. 31.38 N) | Temperature: 80°C

Dimensions: 15x15x5 mm | Pull force: approx. 5,1 kg (approx. 50.01 N) | Temperature: 80°C

Diameter D: 17 mm | Diameter D1: 6 mm | H: 5 mm | Pull force: approx. 5,9 kg (approx. 57.86 N) | Temperature: 80 °C

Dimensions: 15x15x5 mm with hole M4 | Pull force: approx. 4,9 kg (approx. 48.05 N) | Temperature: 80°C

Diameter D: 18 mm | H: 5 mm | Pull force: approx. 6,2 kg (approx. 60.80 N) | Temperature: 80°C

Dimensions: 25x20x3 mm | Pull force: approx. 4 kg (approx. 39.23 N) | Temperature: 80°C

Dimensions: 25x10x5 mm | Pull force: approx. 6,9 kg (approx. 67.67 N) | Temperature: 80°C
