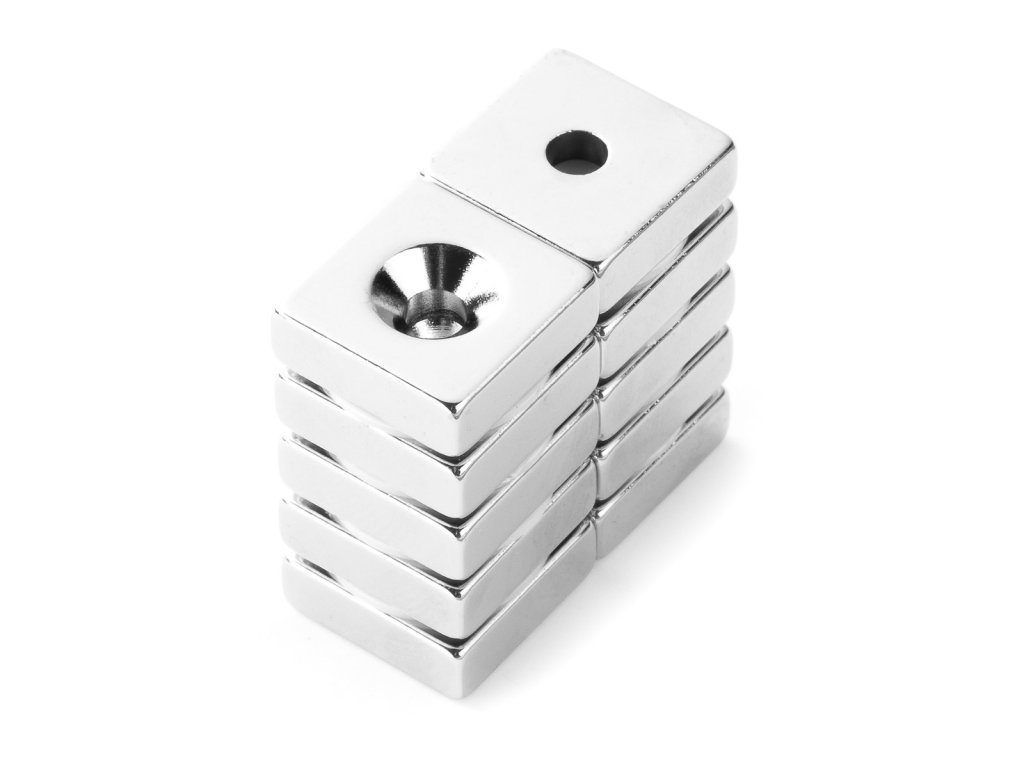

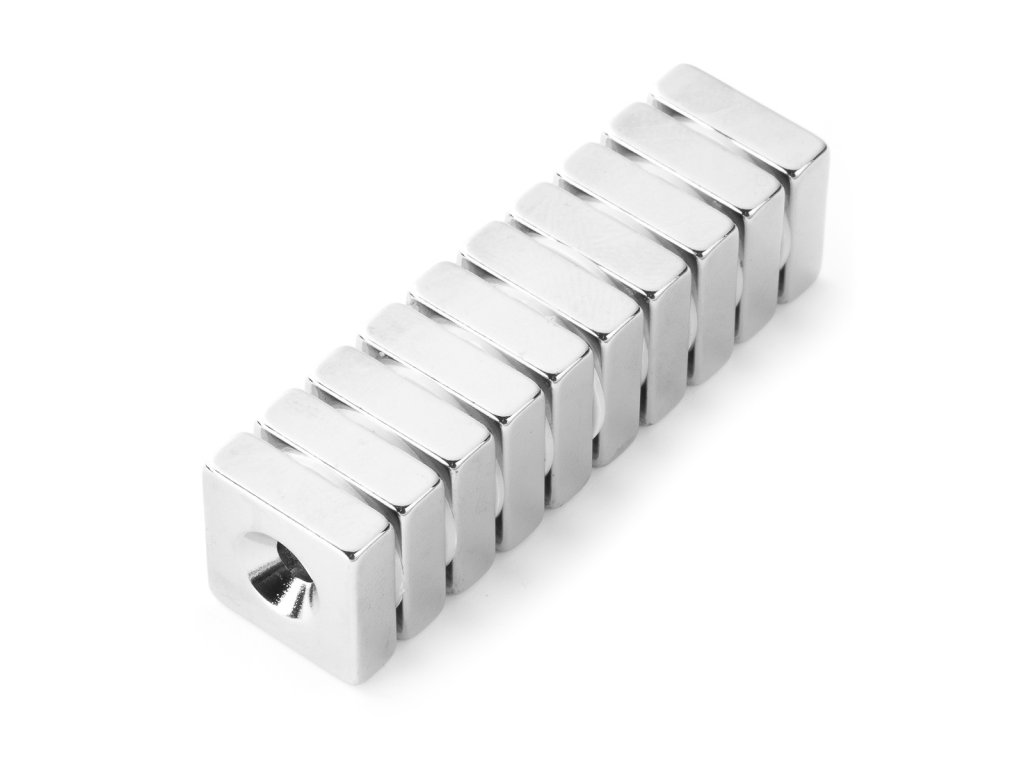

Neodymium NdFeB block magnet (with hole) 15x15x5 mm M4, N40, nickel

Code: E101186
Not rated
€1,73 / pcs €1,43 excl. VAT
In Stock
Dimensions: 15x15x5 mm with hole M4 | Pull force: approx. 4,9 kg (approx. 48.05 N) | Temperature: 80°C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB block magnets
Type: Neodymium
Height H (mm): 5 mm
Length B (mm): 15 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 48.05 N
Pull force 2: approx. 4,9 kg (approx. 48.05 N)
Quality: N40
Shape: Block
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80°C
Threaded hole: M4
Tolerance: +/- 0,1 mm
Weight (g): 7,5 g
Width L (mm): 15 mm
