    Permanent magnetic chuck Neostar

    Code: NEOS150 NEOS200 NEOS250 NEOS300 NEOS350 NEOS400 Choose variant
    Not rated
    NEOS150 01 min
    €1 080,49 / pcs €1 483,25 / pcs €1 816,76 / pcs €2 348,35 / pcs €3 380,17 / pcs €4 588,75 / pcs from €1 080,49 / pcs €892,97 excl. VAT €1 225,83 excl. VAT €1 501,45 excl. VAT €1 940,79 excl. VAT €2 793,53 excl. VAT €3 792,36 excl. VAT from €892,97 excl. VAT
    In Stock In Stock In Stock Out of stock Out of stock Out of stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.

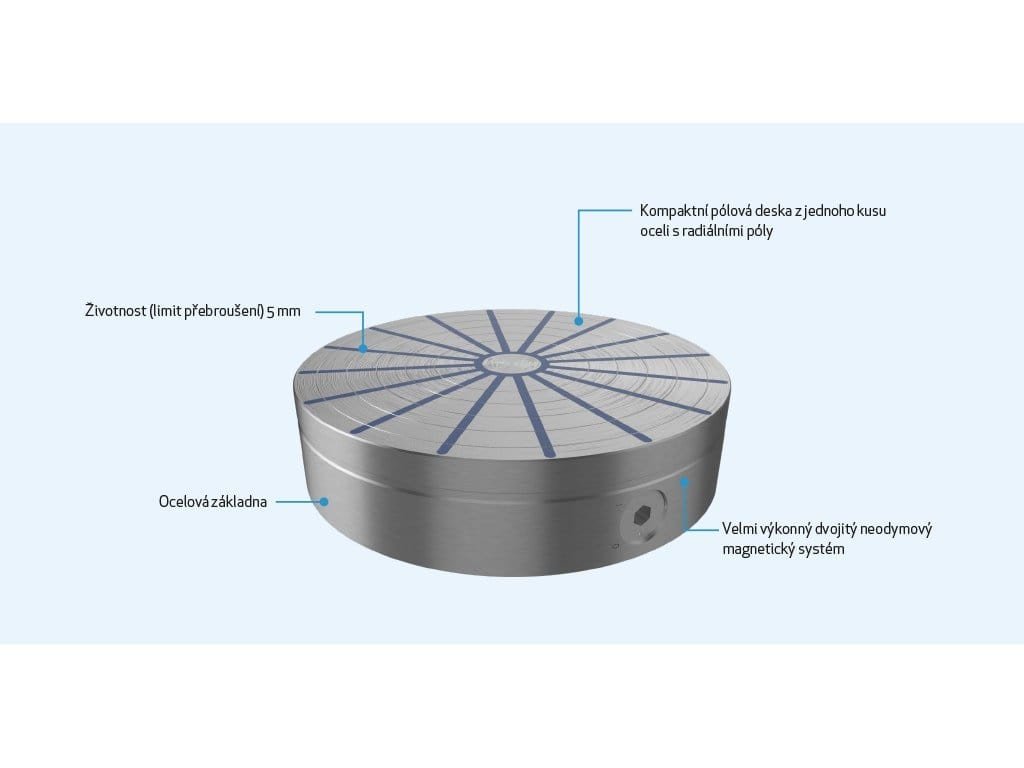

    • Compact top plate made of one piece of steel with radial poles
    • Suitable for turning and circular grinding
    • Very powerful double magnetic system with neodymium magnets
    • Steel base

    Detailed information

    Product detailed description

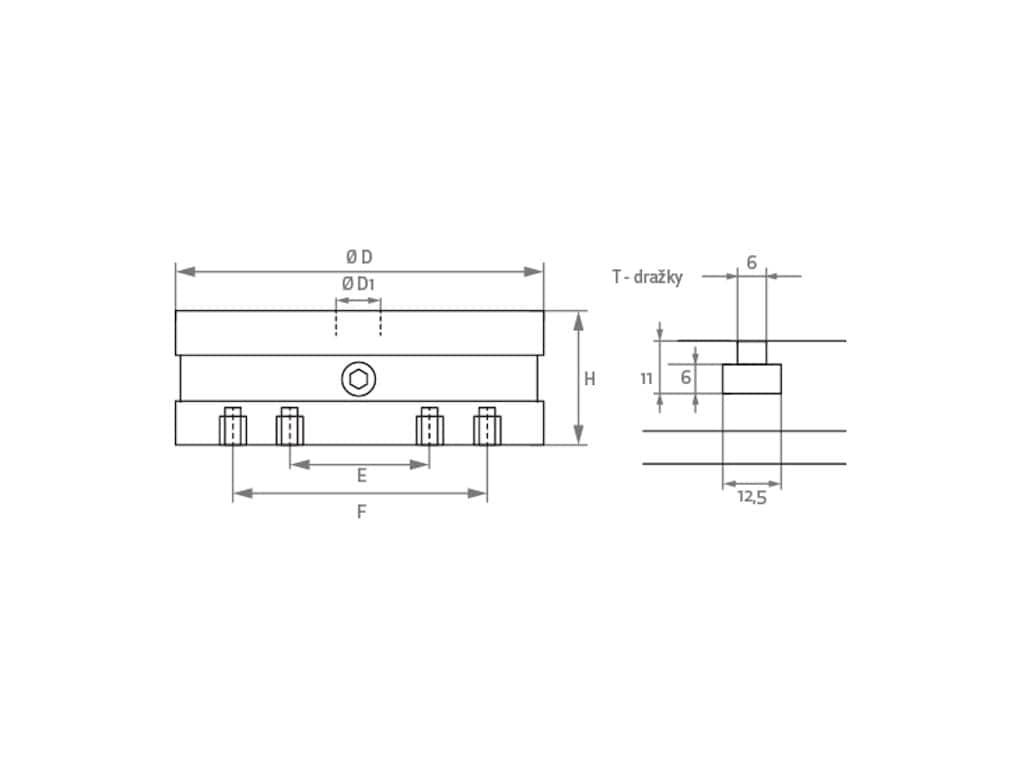

    Model
    Chuck dimension (mm)
    H (mm)
    		 D1 (mm) E (mm) F (mm) Weight (kg) Number of poles
    NEOS150 D150 57 15 80 120 7,3 10
    NEOS200 D200 57 20 110 180 13 12
    NEOS250 D250 70 30 140 220 25 16
    NEOS300 D300
    73
    		 38 180 260 37 16
    NEOS350 D350 73 40
    220
    		 300 49 20
    NEOS400 D400 74 40 260 340 68 20
    Important parameters:
    • Application: Turning, circular grinding
    • Technology: Permanent
    • Poles: Radial
    • Min. workpiece diameter: 35 mm
    • Regrinding limit: 5 mm
    • Holding force: 140 N/cm2

    Use:

    • Turning and grinding of round and ring-shaped workpieces
    • Facing work, internal and external diameter machining is possible separately or in one operation

    Scope of supply:

    • Magnetic chuck
    • Allen key
    • Certificate
    • Instructions for use

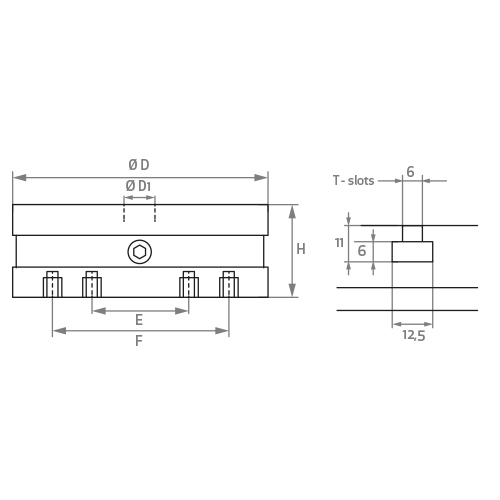

    neostar_EN 1024
    Additional information:

    You can select centre drilling, a precise centre hole, an additional top plate with T-slots or a set of pole extensions. If you have any questions or if anything is unclear, we will be happy to advise you.
    Detailed description:


    The Neostar permanent magnetic chuck is especially designed for clamping workpieces for turning and circular grinding. The top plate with radial poles allows easy and efficient machining of the front, inner and outer diameter of the workpiece in one operation – without the need to release and re-clamp it.

    It features a maximum holding force up to 140 N/cm2 – depending on the chuck size and dimensions of the workpieces to be machined. The robust steel base is provided with 2 – 4 threads on the bottom for attachment to a suitable flange.
