    Pipe clamps for wall mounting

    Code: E915191 E915192 E915193 E915194 E915195 E915196 E915197 E915198 E915199 E915200 E915201 E915202 E915203 Choose variant
    Not rated

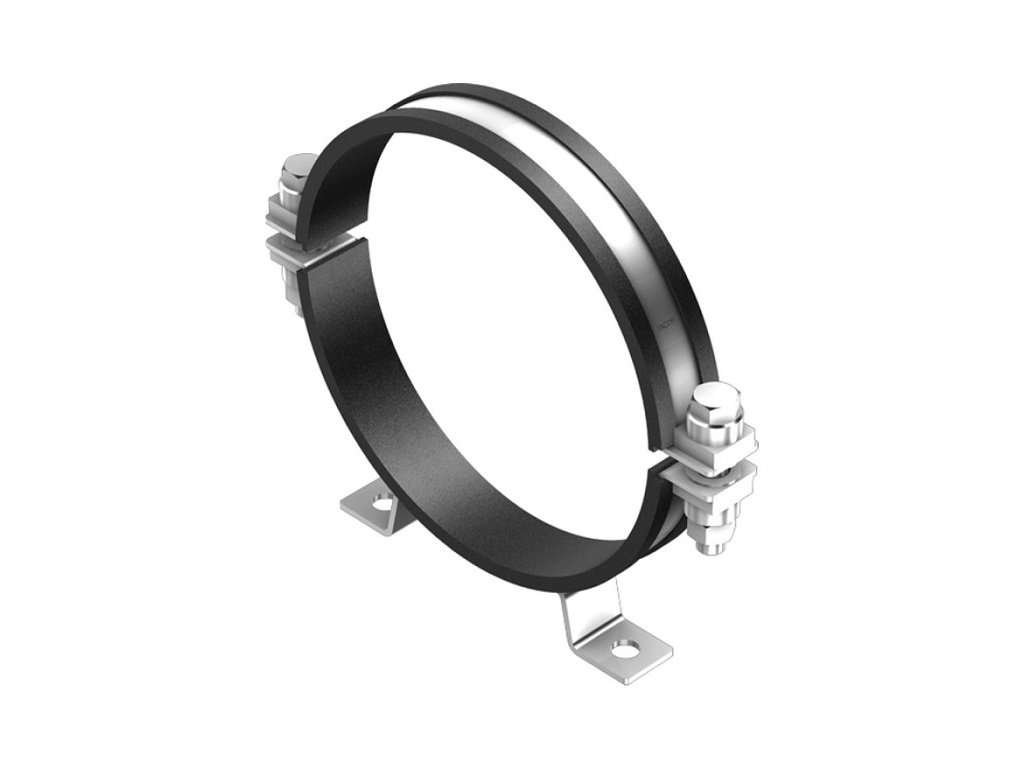

    Pipe clamps for wall mounting_01
    €89,63 / pcs €92,24 / pcs €100,16 / pcs €114,20 / pcs €126,29 / pcs €133,80 / pcs €146,08 / pcs €146,08 / pcs €160,69 / pcs €198,90 / pcs €209,80 / pcs €259,27 / pcs €290,90 / pcs from €89,63 / pcs €74,07 excl. VAT €76,23 excl. VAT €82,78 excl. VAT €94,38 excl. VAT €104,37 excl. VAT €110,58 excl. VAT €120,73 excl. VAT €120,73 excl. VAT €132,80 excl. VAT €164,38 excl. VAT €173,39 excl. VAT €214,27 excl. VAT €240,41 excl. VAT from €74,07 excl. VAT
    Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Out of stock Choose variant
    Modell
    Chosen variant is not available. Reset selected parameters.

    DN 80 | DN 100 | DN 120 | DN 150 | DN 175 | DN 200 | DN 224 | DN 250 | DN 300 | DN 350 | DN 400 | DN 450 | DN 500

    Detailed information

    Product detailed description

    MODELL
    Ø A (mm)
    B (mm)
    		 C (mm) E (mm) F (mm) Load T1 (kN) Load T2 (kN) Weight (kg)
    Item no.
    DN 80
    		 80 64 138 30x2,5 3 2,0 1,0 0,70 10083780
    DN 100
    		 102 75 138 30x2,5 3 2,5 1,0 0,80 10103780
    DN 120
    		 123 86 138 30x2,5 3 2,5 1,0 0,85 10123780
    DN 150
    		 153 101 148 30x2,5 3 3,0 1,2 0,95 10153780
    DN 175 178 113 148 30x2,5 3 3,0 1,2 1,00 10173780
    DN 200 203 126 148 30x2,5 3 3,0 1,2 1,05 10203780
    DN 224 223 136 148 30x2,5 3 3,0 1,2 1,10 10223780
    DN 250 253 151 230 30x2,5 3 3,0 1,2 1,25 10253780
    DN 300 303 176 230 30x2,5 3 3,0 1,2 1,40 10303780
    DN 350 353 204 260 30x3 4 3,5 1,2 1,55 10353780
    DN 400 402 228 260 30x3 4 3,5 1,2 2,10 10403780
    DN 450 452 254 300 30x3 4 4,5 1,5 2,95 10453780
    DN 500 502 279 300 30x3 4 4,5 1,5 3,05 10503780
    • With EPDM insert, -40 °C to +120 °C

    • Silicone insert, -60 °C to +170 °C, on request

    • Stainless steel

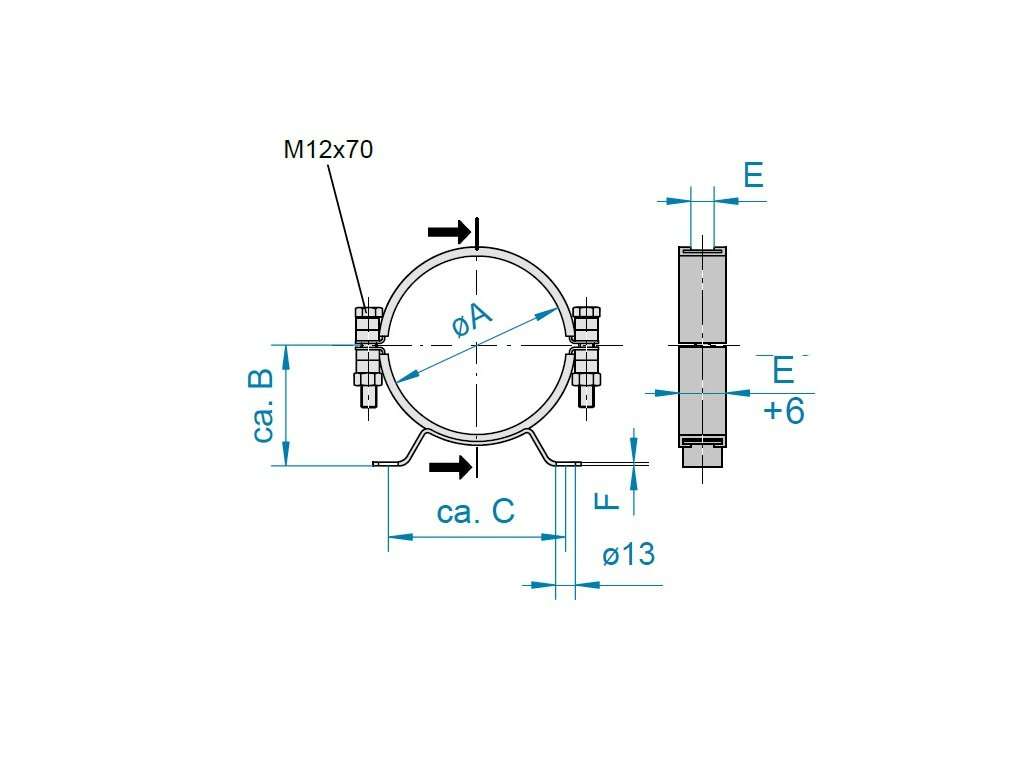

    		  Trubkový závěs pro montáž na stěnu 02
