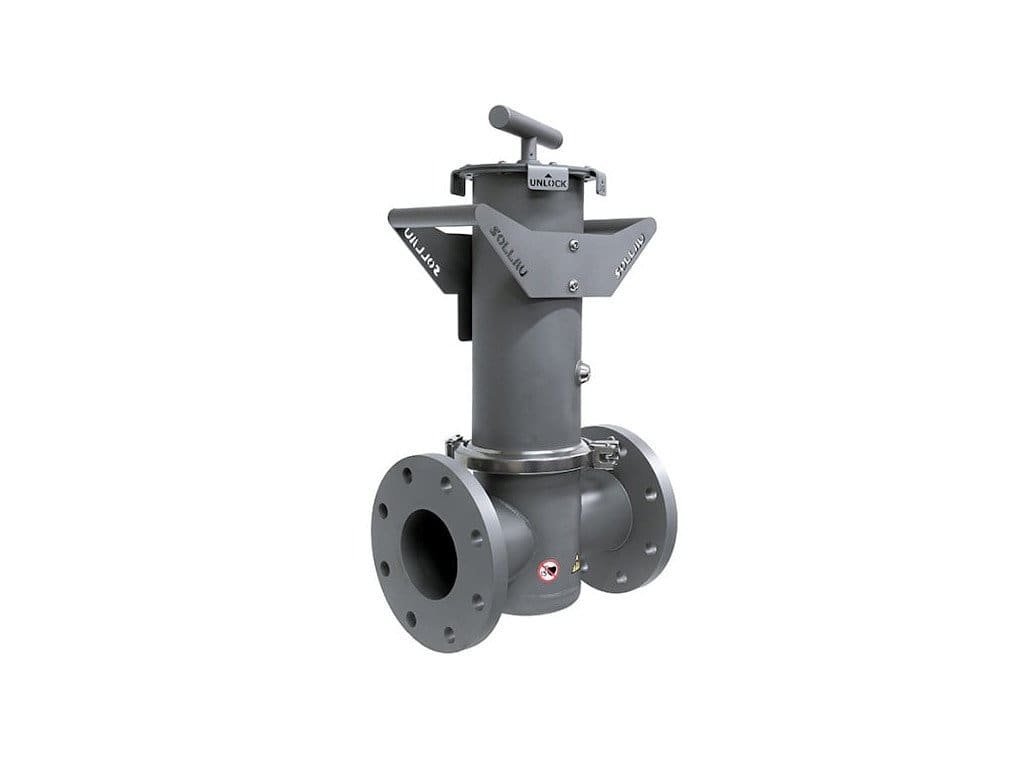

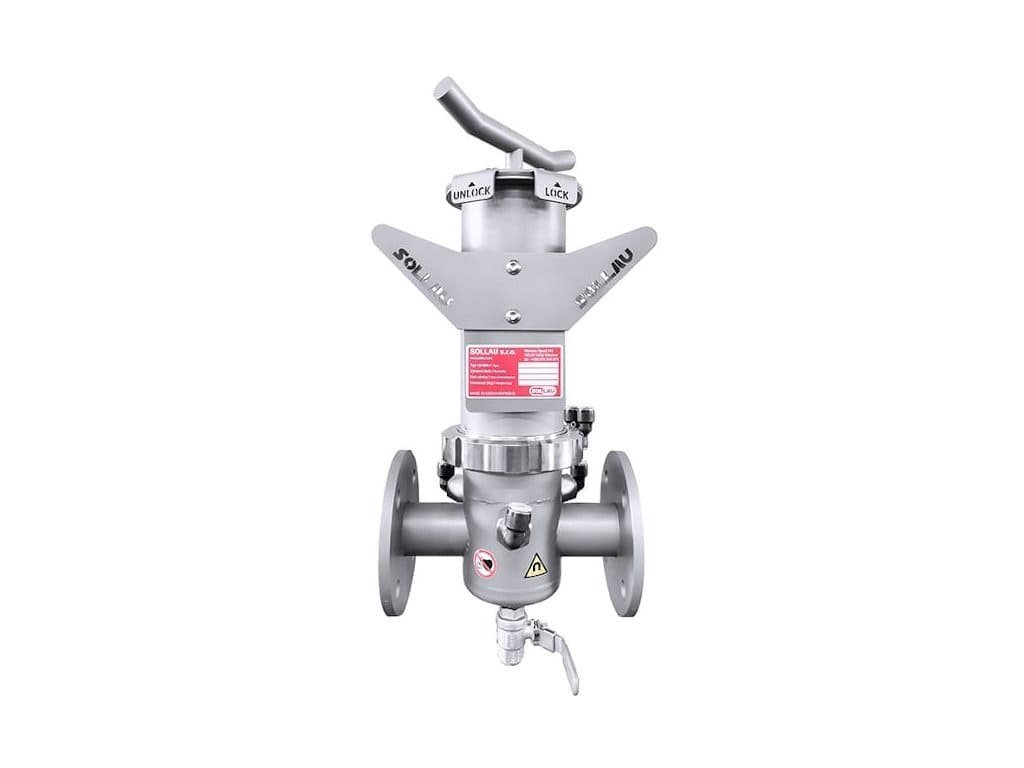

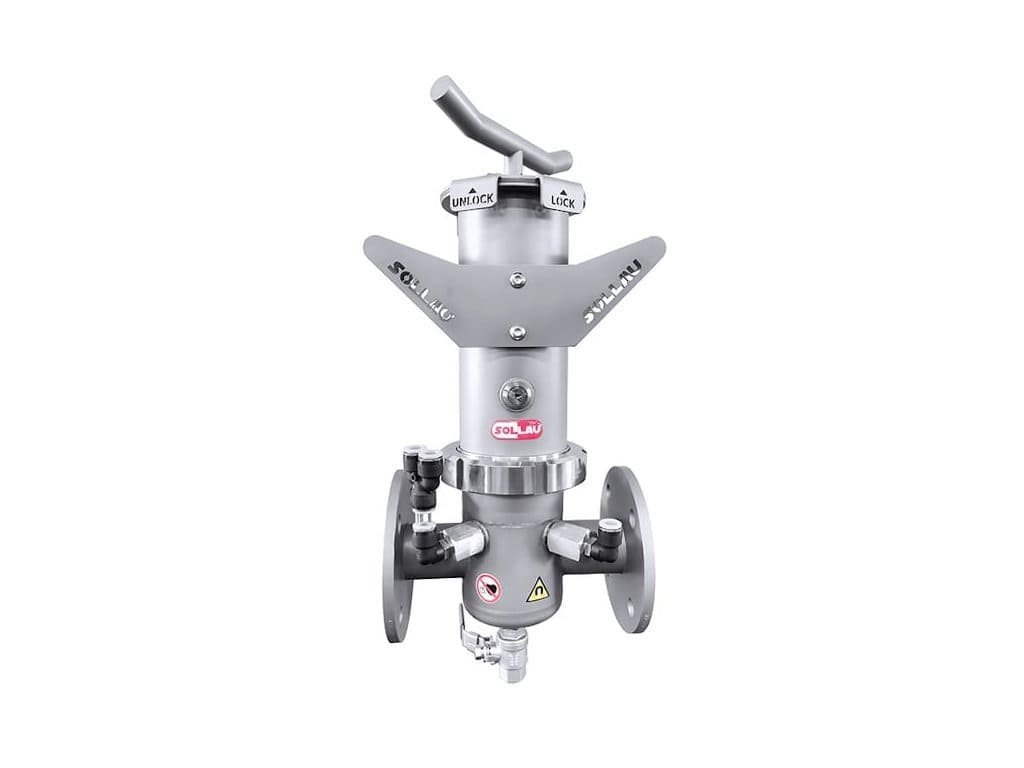

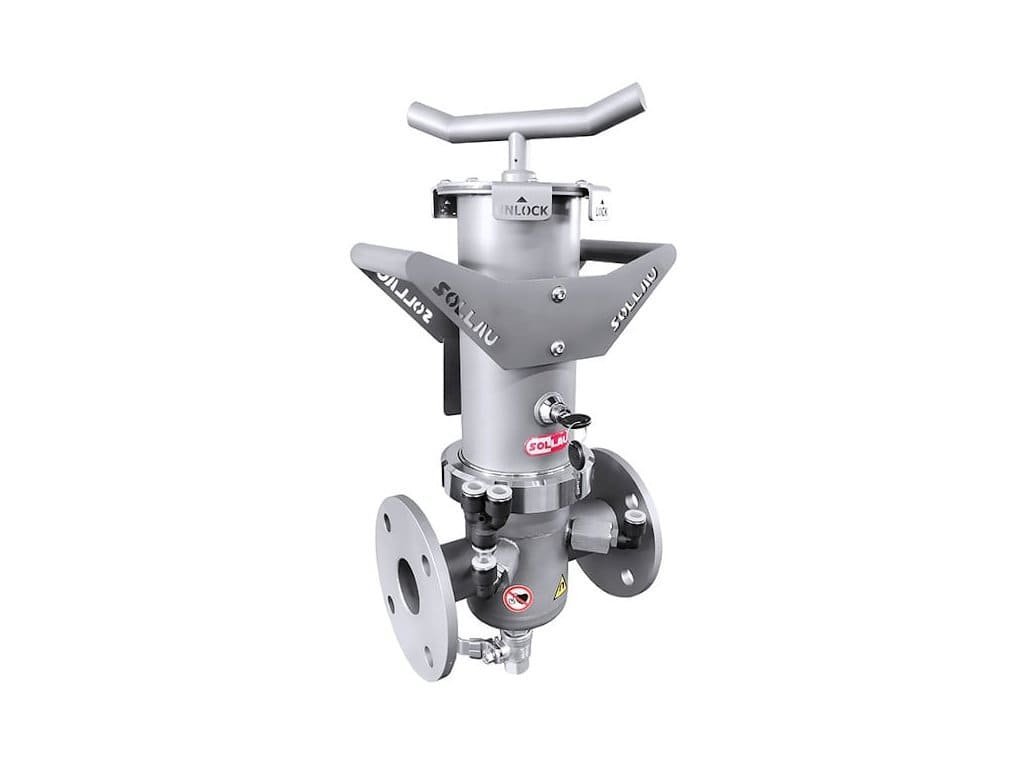

Pipeline magnetic separator MSP-MC
Code: MSP-MC50N-141153 Z MSP-MC100N-102494 Choose variantProduct detailed description
Pipeline magnetic separator (magnetic filter) MSP-MC is designed to separate iron contamination from liquids (or dry substances of good bulk properties).

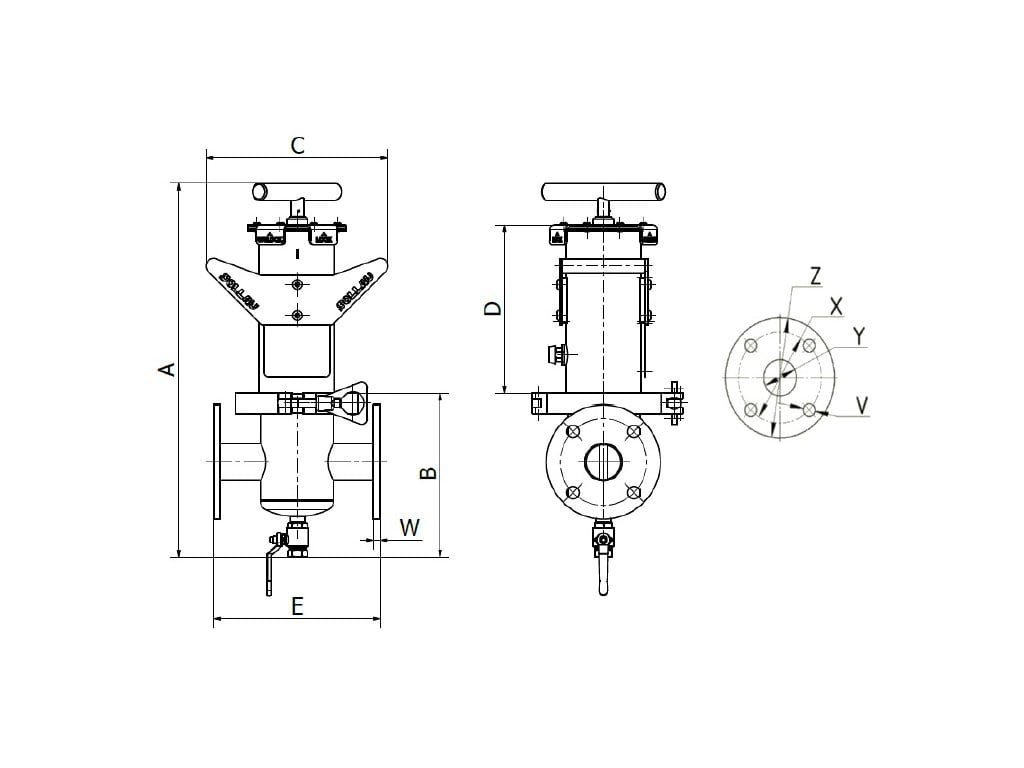

| Model | Weight (kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E incl. flange (mm) |
E incl. screw fittings (mm) |
Number of tubes | Material č. 1 (Max. capacity l/m) |
Material č. 2 (Max. capacity l/m) |
Material č. 3 (Max. capacity l/m) |
Material č. 4 (Max. capacity l/m) |
| MSP-MC 50 N | 16 | 505 | 200 | 265 | 245 | 240 | 240 | 3 x 32 mm | 500 | 350 | 170 | 70 |
| MSP-MC 100 N | 23 | 610 | 230 | 290 | 315 | 300 | 300 | 5 x 32 mm | 1100 | 800 | 400 | 150 |
| Typ příruby | Počet děr | V (mm) |
W (mm) |
X (mm) |
Y (mm) |
Z (mm) |
| DN 50 | 4 | 18 | 10 | 125 | 50 | 165 |
| DN 100 | 8 | 18 | 10 | 180 | 100 | 220 |
ADVANTAGES

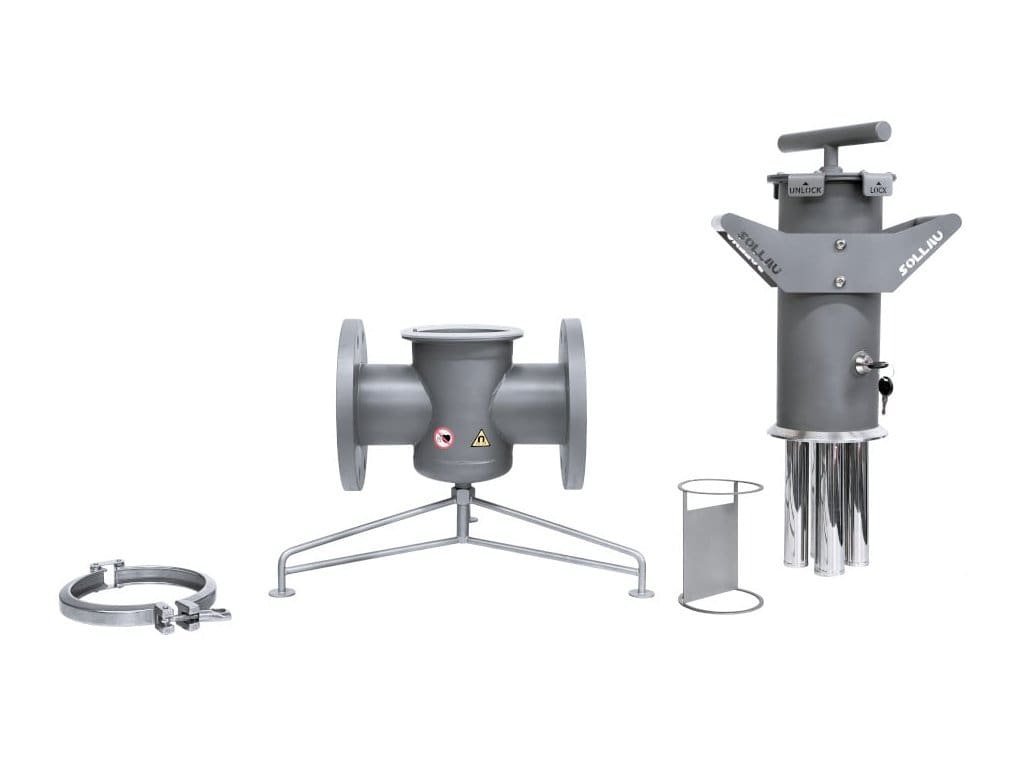

- Easy cleaning

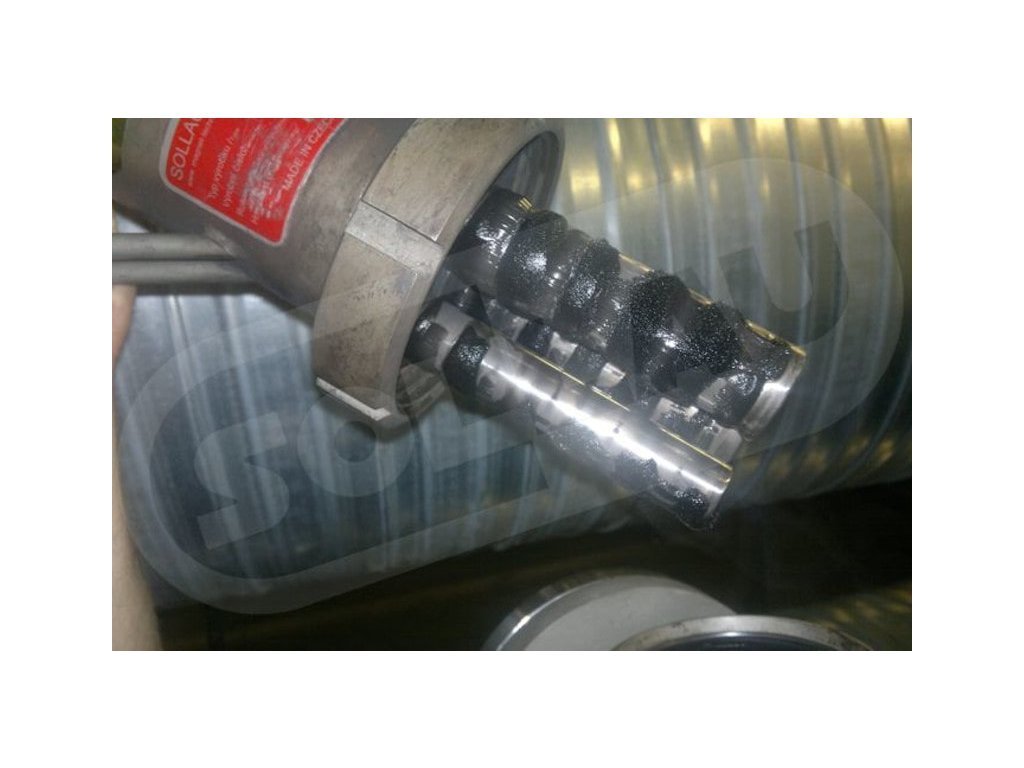

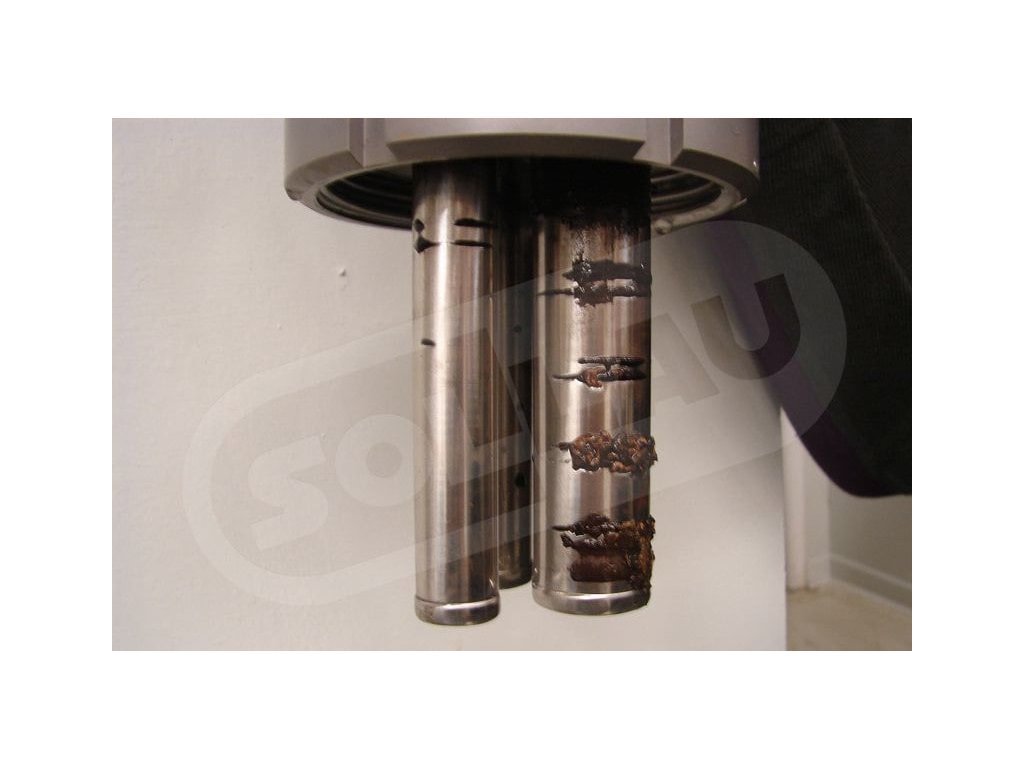

- Capturing Fe particles in size from 1 micron
- Double-sheathed protection of magnets
- Made to measure separator production
Magnetic induction:
18 700 G
Technical parameters:
Application: liquid material, bulk material

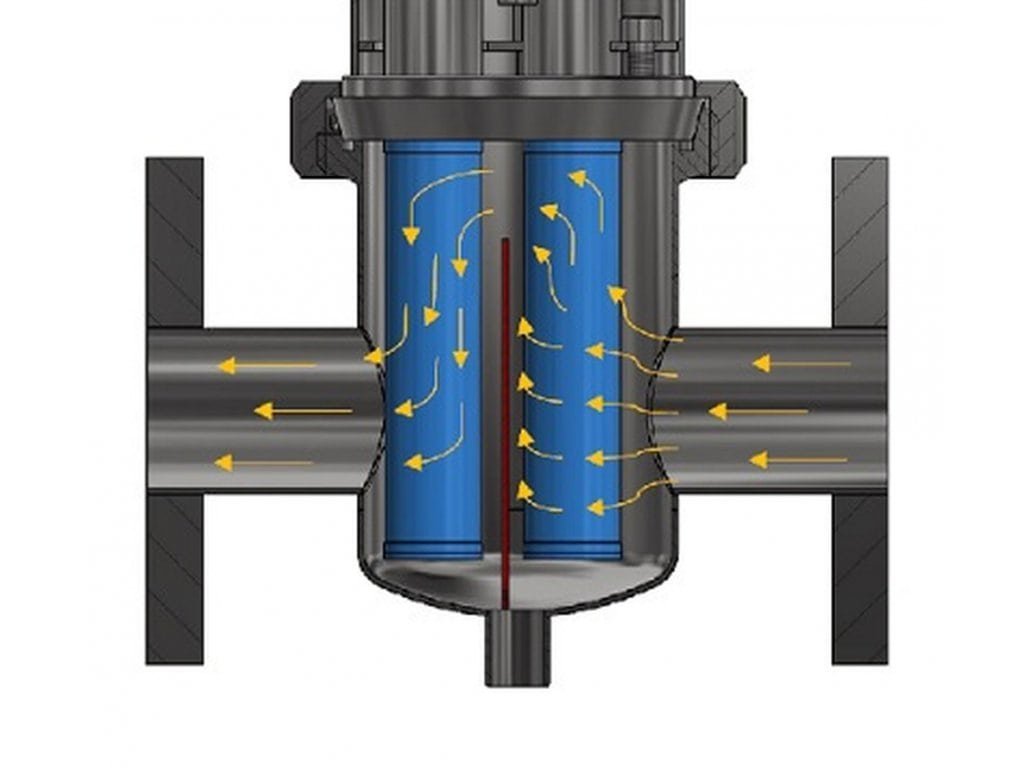

Material flow direction: vertical, horizontal
Operating pressure: max. 10 bar
Max. magnetic induction (G): 18 700 G
Number of magnetic tubes: 3 (MSP-MC 50 N) and 5 (MSP-MC 100 N)
Maximum capacity. The mentioned capacities are informative and non binding: 30 m3/h (MSP-MC 50 N) and 66 m3/h (MSP-MC 100 N)
Connecting dimension, inlet and outlet diameter of the separator: 50 mm (MSP-MC 50 N) and 100 mm (MSP-MC 100 N)
Minimum size of the particles that can be captured by the separator: 0.03 mm
Max. operating temperature: 80 °C
