    Electropermanent magnetic chuck Mastermill

    Code: MM50420600 MM50420800 MM50480600 MM50480800 MM50580990 Choose variant
    Not rated
    MM50420600 01 min
    €7 137,74 / pcs €9 013,10 / pcs €8 045,18 / pcs €9 860,02 / pcs €12 461,38 / pcs from €7 137,74 / pcs €5 898,96 excl. VAT €7 448,84 excl. VAT €6 648,91 excl. VAT €8 148,78 excl. VAT €10 298,66 excl. VAT from €5 898,96 excl. VAT
    In Stock In Stock Out of stock In Stock Out of stock Choose variant
    Variant
    • Possibility to machine the workpiece from 5 sides, drill through or machine uneven workpieces
    • The stop blocks can be moved freely to any side
    • Slot round the entire perimeter – for easy attachment to the machine table
    • Possibility to perform through going holes for additional fixing to table
    • Low compact design
    • 6 m-long armoured power supply cable
    • Possibility to connect a set of several magnets to a single control unit
    • Top plate in steel/stainless steel combination guarantees high mechanical durability and thermal resistence.

    Detailed information

    Product detailed description

    Model

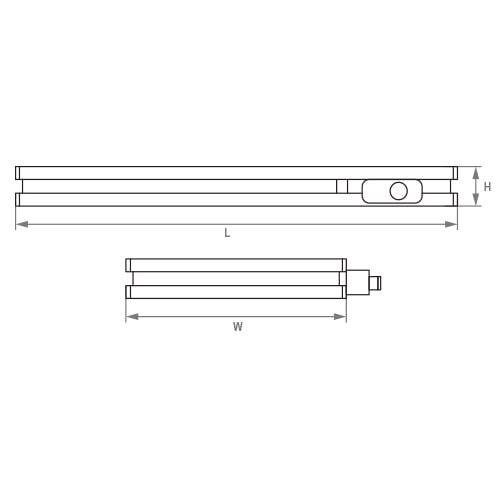

    Chuck dimension (mm)
    		 Number of poles W (mm) L (mm) H (mm) Weight (kg)
    MM50420600 420x600 48 420 600 51 86
    MM50420800 420x800 60 420 800 51 114
    MM50480600 480x600 56 480 600 51 97
    MM50480800 480x800
    70
    		 480 800 51 130
    MM50580990 580x990 96 580
    990
    		 51 194
    Important parameters:
    • Application: Milling
    • Technology: Electropermanent
    • Poles: Square
    • Min. workpiece size: 50 x 110 x 20 mm
    • Regrinding limit: 6 mm
    • Holding force: 170 N/cm2
    • Pole size: 50 x 50 mm
    • Top plate: steel/stainless steel combination

    Use:

    • Rough grinding of large parts
    • Machining of uneven parts up to 5 sides
    • Clamping of a wide range of workpiece sizes during milling
    • Clamping of large forms, castings, blocks, structures, etc.during drilling operations

    Scope of supply:

    • Magnetic chuck
    • Side stop blocks
    • Armoured power supply cable
    • Certificate
    • Instructions for use
    mastermill_CZ
    Additional information:

    Beyond the standard design, the customer can choose:

    • different cable outlet location parts
    • through going holes for fastening the magnet to the table
    • a top plate with a corrosion resistant gaps between the poles
    Detailed description:

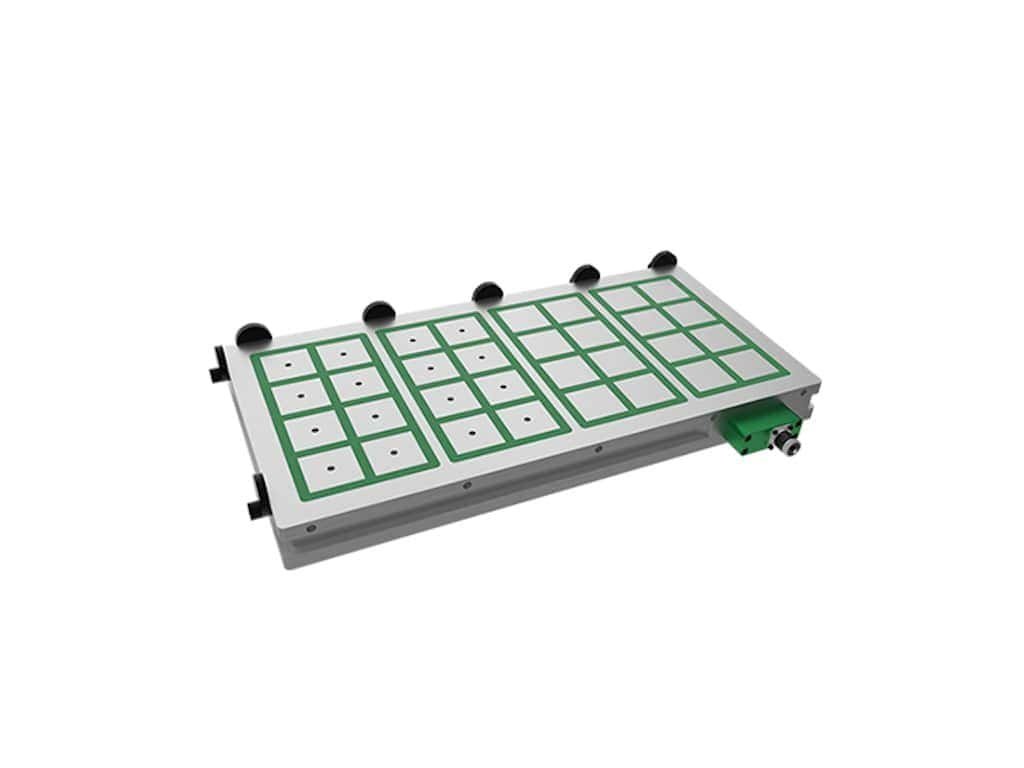

    The Mastermill electropermanent magnetic chuck is a chuck with 50×50 mm square poles, a compact low design (only 51 mm high) and a nominal holding force of 170 N/cm2. The electromagnet has a practical offset (slot) around its entire perimeter for clamps and there is also enough space on the magnet to perform through clamping holes.

    The standard delivery includes magnet with a quick “bayonet” coupling connector, stop blocks on 2 sides, and with a 6 metre-long armoured cable.
