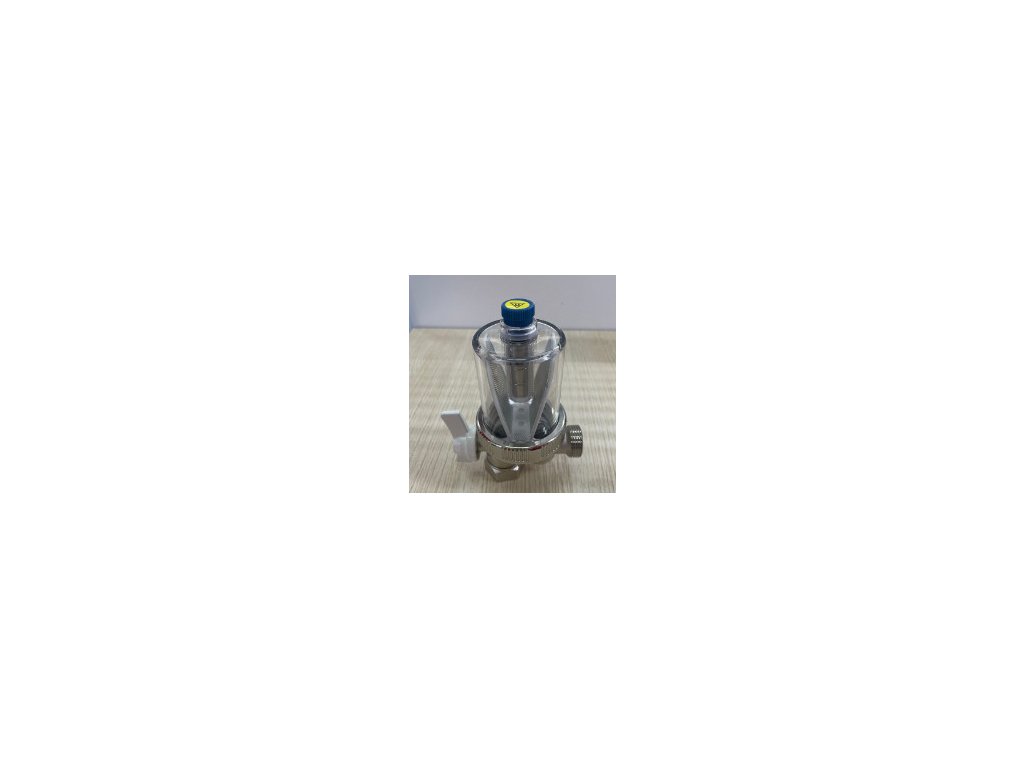

Magnetic Filter for Heating - with a transparent cover ¾" / 7,000 G / 3 bar
Code: E904023Product detailed description
The magnetic filter for heating removes iron, nickel and cobalt particles from the water. This type is additionally equipped with a transparent cover, which allows visual inspection of the amount of captured impurities.
The ¾" magnetic filter is a compact device suitable for installation on the bottom part of wall-mounted boilers. Its small size makes it easy to install in a limited space. To ensure effective filtration of magnetic particles, it is recommended to place it in front of the circulation pump.
It is equipped with an 800-µm eye size sieve - thus can capture very small even non-magnetic contaminants. Metal impurities are captured by a magnetic rod fitted with very strong neodymium magnets whose magnetic induction is 7,000 G. The magnetic rod can perfectly capture even very fine ferromagnetic dirt, leading to a lifetime extension of circulatory pumps used in the heating system.
Nowadays, magnetic filters for heating systems are an essential part of each installation.
Connection dimensions:
- On the boiler side: 3/4"F (ISO 228-1)
- On the side of return water: 3/4"M (ISO 228-1)
What material are the individual magnetic filter components made of?
Magnetic filter body: Chromium-plated brass EN 12165 CW617N
Spherical valve: Chromium-plated brass EN 12165 CW617N
Additional parameters
| Category: | Magnetic filters for heaters |
|---|---|
| Medium: | water and ethylene glycol solution |
| Pressure resistance: | 3 bar |
| Temperature resistance: | 0-90°C |
| Diameter of filter holes: | 800 µm |
| Magnetic induction: | 0,7 T = 7,000 G |
| Seals: | EPDM |
| Filter: | Stainless steel |
| Filter cover: | Polyamide 66 (PA66) with glass fiber content |
