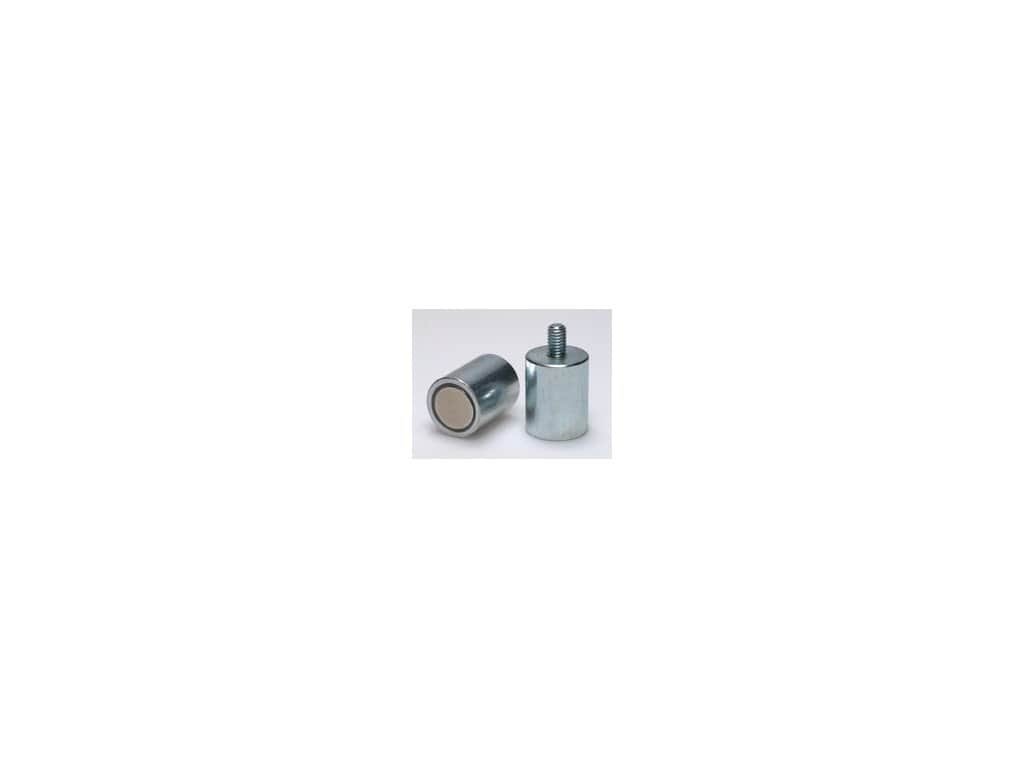

NdFeB deep pot magnet with external thread 13x20 mm
Code: MC10170Product detailed description
.Additional parameters
| Category: | Neodymium deep pot magnets with external thread |
|---|---|
| Weight: | 0.02 kg |
| EAN: | S13AGNdvM4x8 |
| Type: | Neodymium |

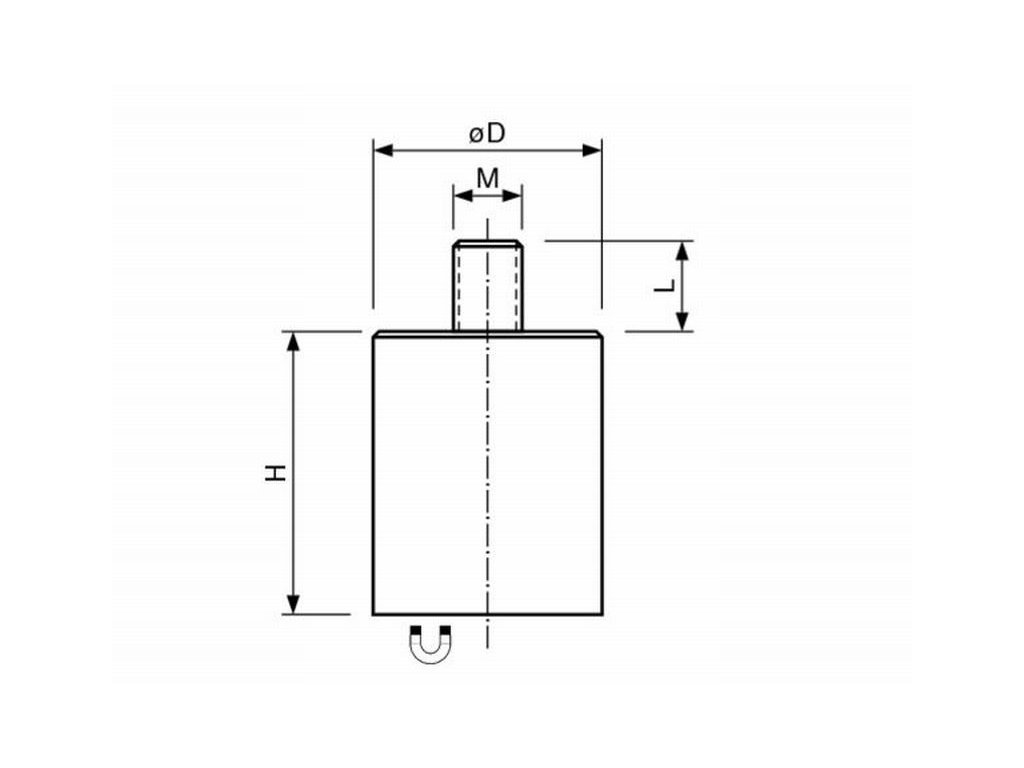

| H: | 20 mm |
| MxL: | M4x8 mm |
| DK: | 0 mm |
| Diameter D: | 13 mm |
| Pull force (cca 1kg ~ 10N): | 60 N |
| Shape: | With external thread |
| Temperature (°C): | 80 °C |
| Tolerance: | +0.1/-0.1 mm |
| Weight: | 20 g |
