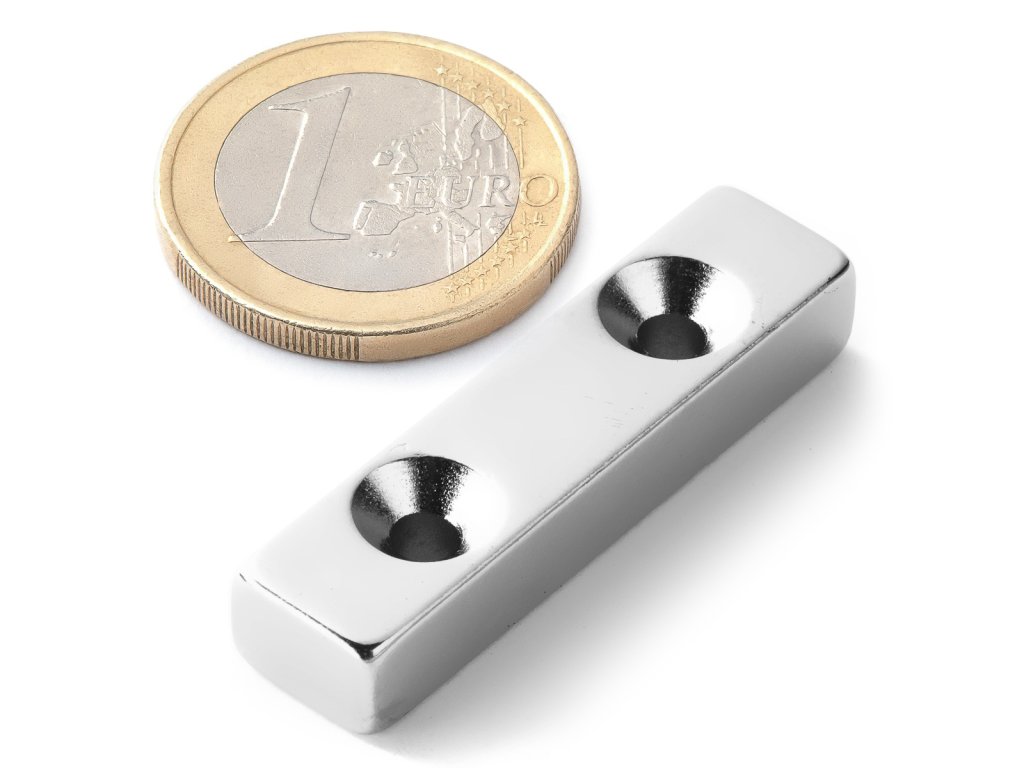

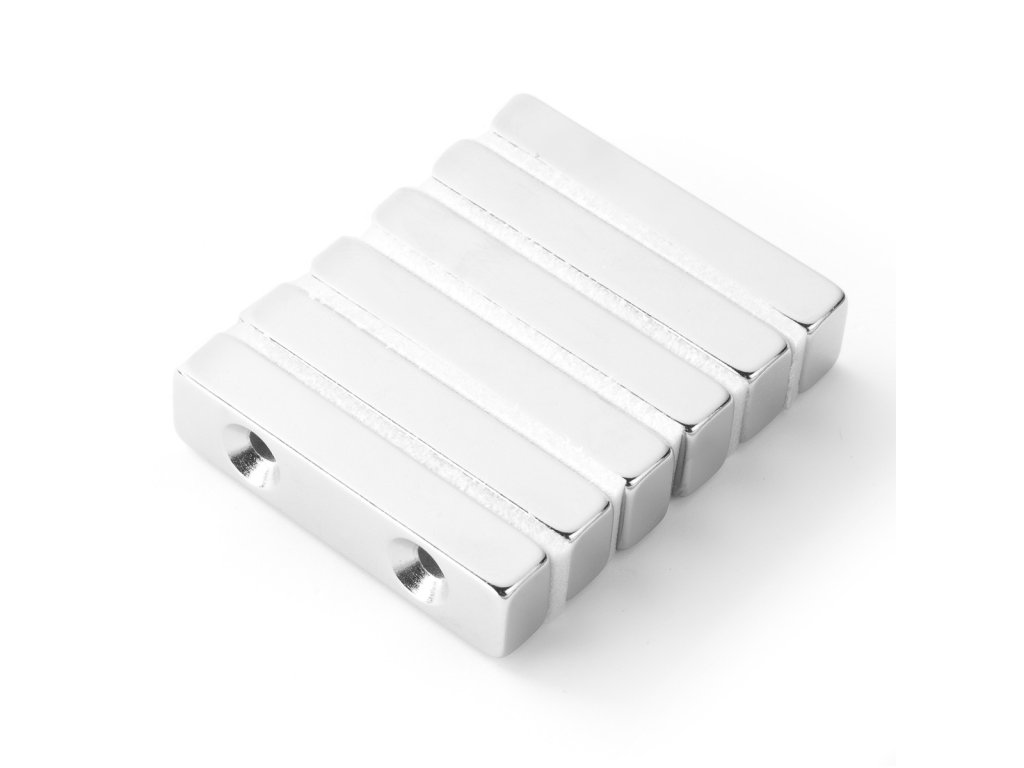

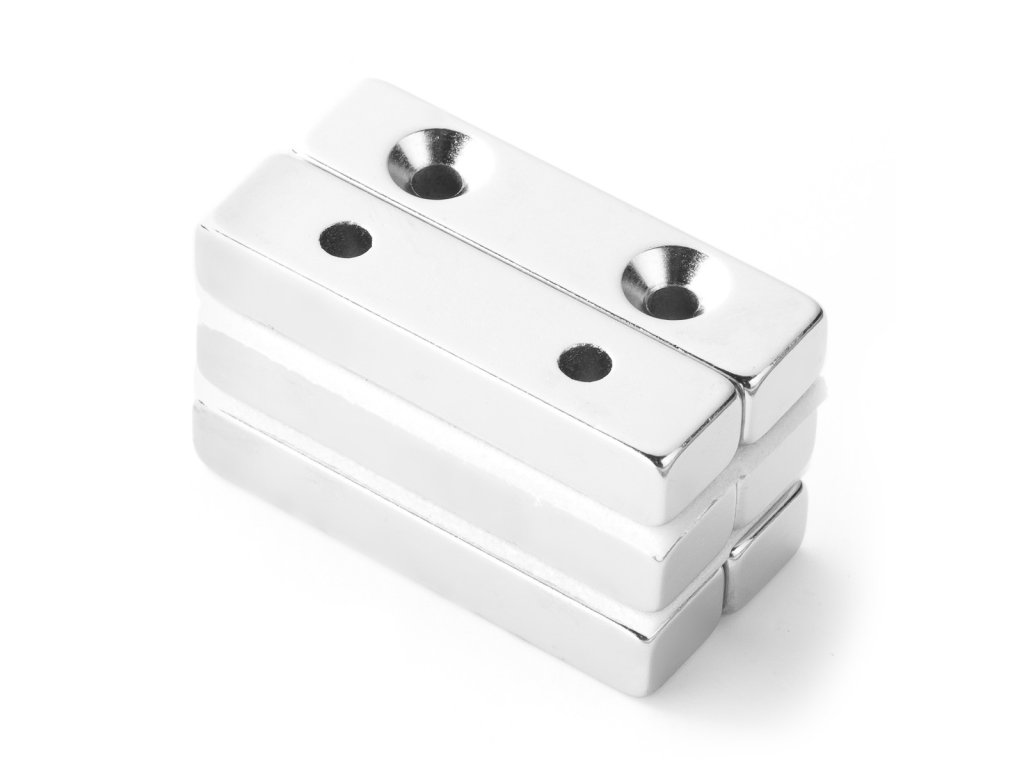

Neodymium NdFeB block magnet 40x10x7 mm with hole 2xM3.5, N42, nickel

Code: E101224
Not rated
€4,42 / pcs €3,65 excl. VAT
In Stock
Dimensions: 40x10x7 mm with hole 2xM3.5 | Pull force: approx. 9,2 kg (approx. 90.22 N) | Temperature: 80°C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB block magnets
Type: Neodymium
Height H (mm): 7 mm
Length B (mm): 40 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 90.22 N
Pull force 2: approx. 9,2 kg (approx. 90.22 N)
Quality: N42
Shape: Block
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80°C
Threaded hole: 2 × M3.5 (pitch 20 mm)
Tolerance: +/- 0,1 mm
Weight (g): 19 g
Width L (mm): 10 mm
