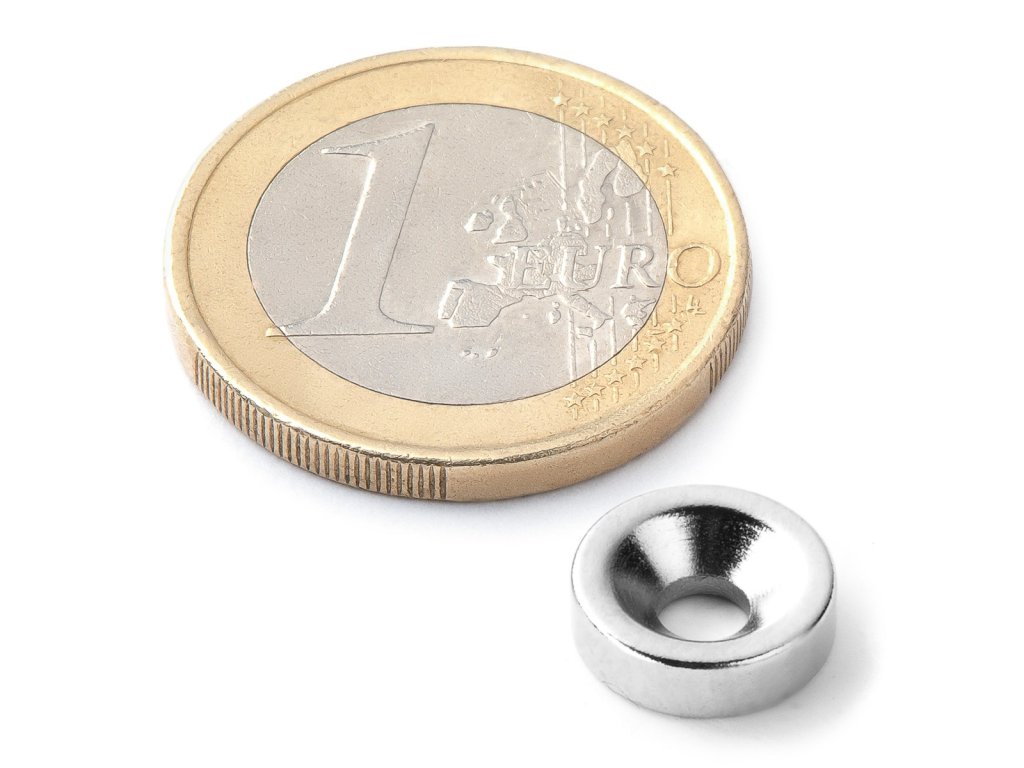

Neodymium NdFeB ring magnet D 10/3.5 mm, H 3 mm, N38, nickel, countersunk

Code: E101267
Not rated
€0,48 / pcs €0,40 excl. VAT
In Stock
Diameter D: 10 mm | Diameter D1: 3.5 mm | H: 3 mm | Pull force: approx. 1,6 kg (approx. 15.69 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Countersunk t: 7 mm
Description: Circle with recess for M3
Diameter D: 10 mm
Diameter d1: 3.5 mm
Height H (mm): 3 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 15.69 N
Pull force 2: approx. 1,6 kg (approx. 15.69 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 1,5 g
