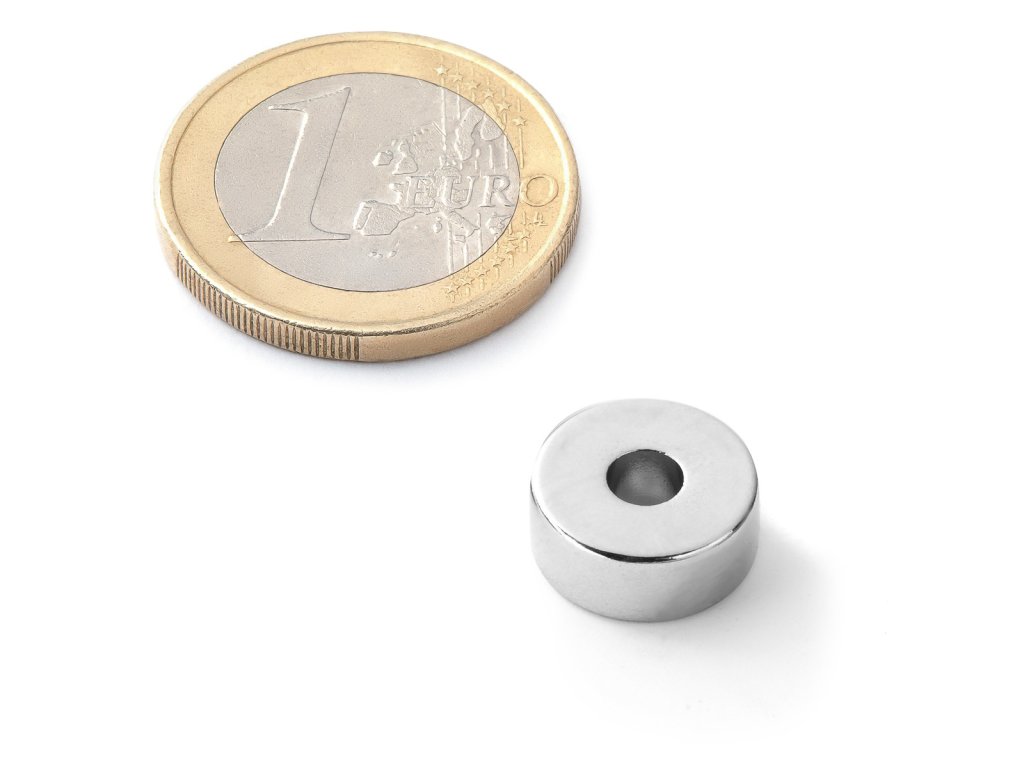

    Neodymium NdFeB ring magnet D 12/4 mm, H 5 mm, N40, nickel

    Code: E101272
    Not rated
    Neodymový magnet mezikruží
    €0,76 / pcs €0,63 excl. VAT
    In Stock
    Diameter D: 12 mm | Diameter D1: 4 mm | H: 5 mm | Pull force: approx. 3,3 kg (approx. 32.36 N) | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium NdFeB ring magnets
    Type: Neodymium
    Diameter D: 12 mm
    Diameter d1: 4 mm
    Height H (mm): 5 mm
    Magnetization: Axial with height
    Pull force (cca 1kg ~ 10N): 32.36 N
    Pull force 2: approx. 3,3 kg (approx. 32.36 N)
    Quality: N40
    Surface: nickel (Ni-Cu-Ni)
    Temperature (°C): 80 °C
    Tolerance: +/- 0,1 mm
    Weight (g): 3,8 g
