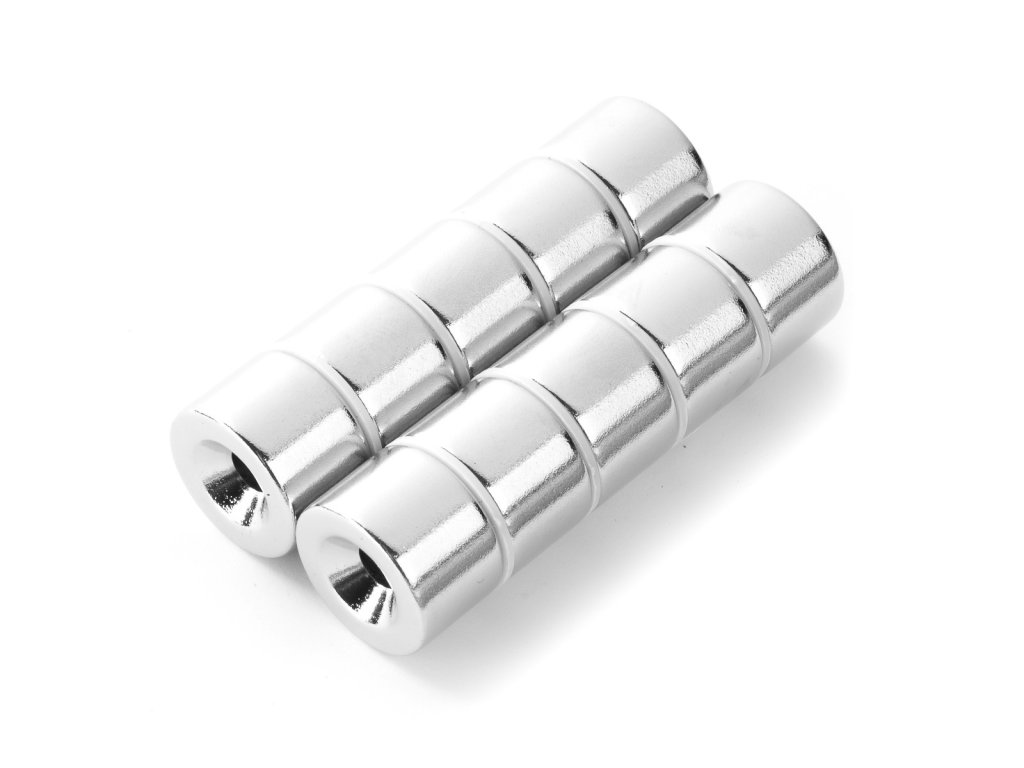

Neodymium NdFeB ring magnet D 15/4.5 mm, H 10 mm, N42, nickel, countersunk

Code: E101280
Not rated
€2,15 / pcs €1,78 excl. VAT
In Stock
Diameter D: 15 mm | Diameter D1: 4.5 mm | H: 10 mm | Pull force: approx. 7,2 kg (approx. 70.61 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Countersunk t: 9 mm
Description: Circle with recess for M4
Diameter D: 15 mm
Diameter d1: 4.5 mm
Height H (mm): 10 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 70.61 N
Pull force 2: approx. 7,2 kg (approx. 70.61 N)
Quality: N42
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 12 g
