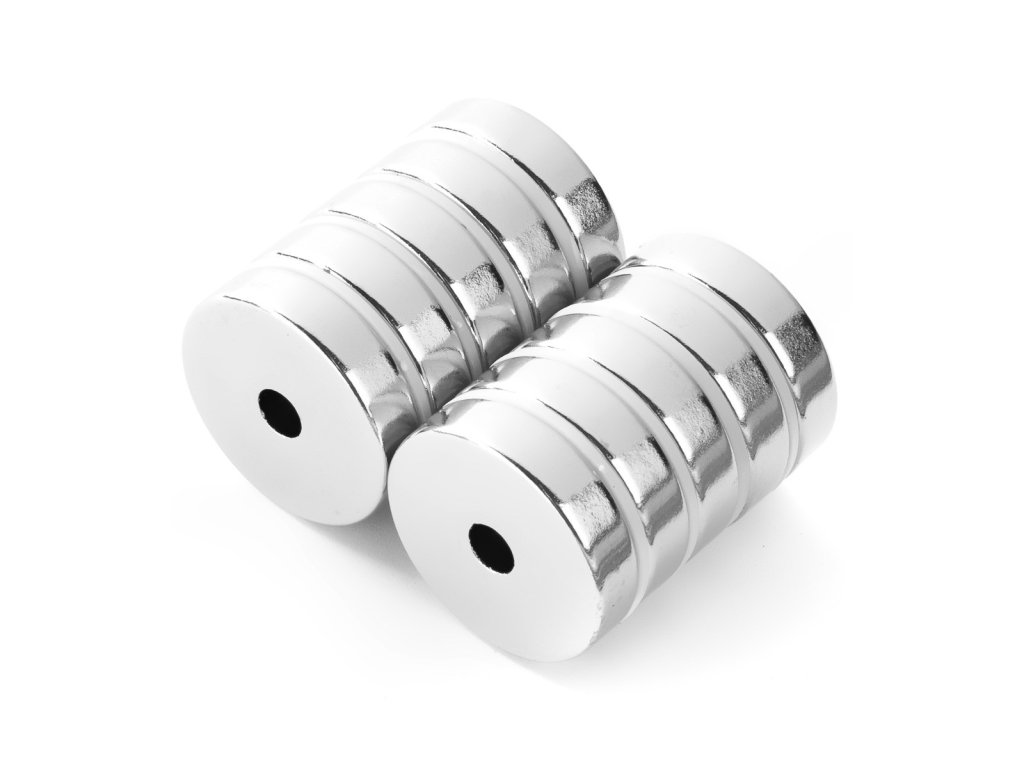

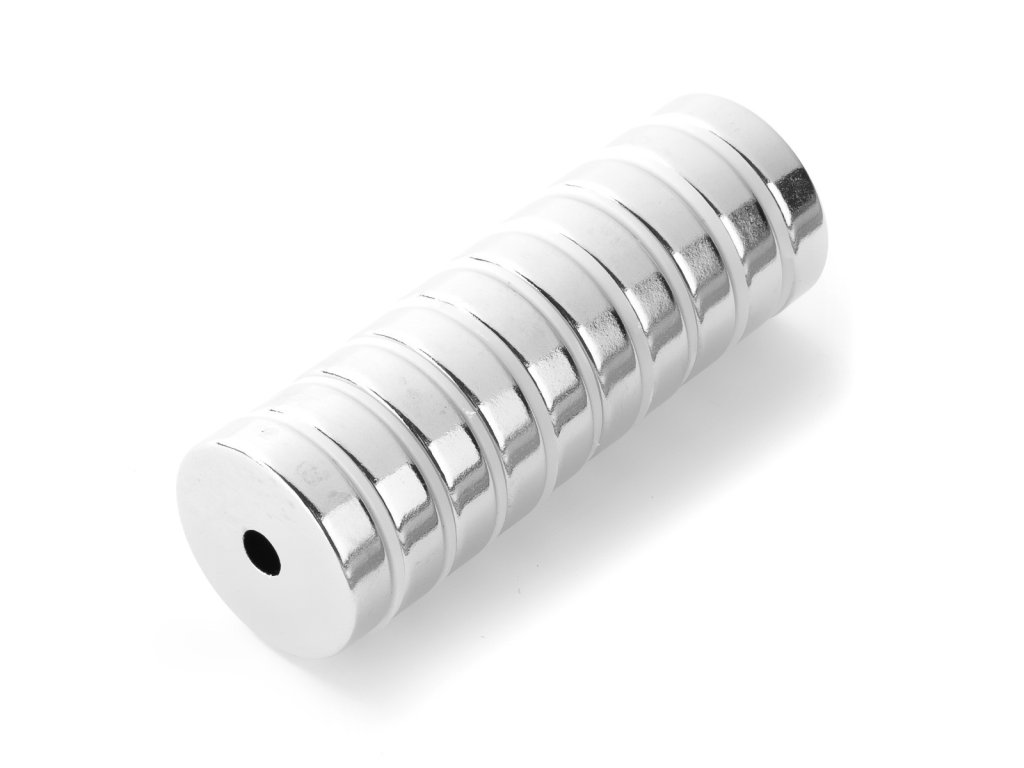

Neodymium NdFeB ring magnet D 20/4.2 mm, H 5 mm, N38, nickel

Code: E101287
Not rated
€1,50 / pcs €1,24 excl. VAT
In Stock
Diameter D: 20 mm | Diameter D1: 4.2 mm | H: 5 mm | Pull force: approx. 6,8 kg (approx. 66.69 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 20 mm
Diameter d1: 4.2 mm
Height H (mm): 5 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 66.69 N
Pull force 2: approx. 6,8 kg (approx. 66.69 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 11 g
