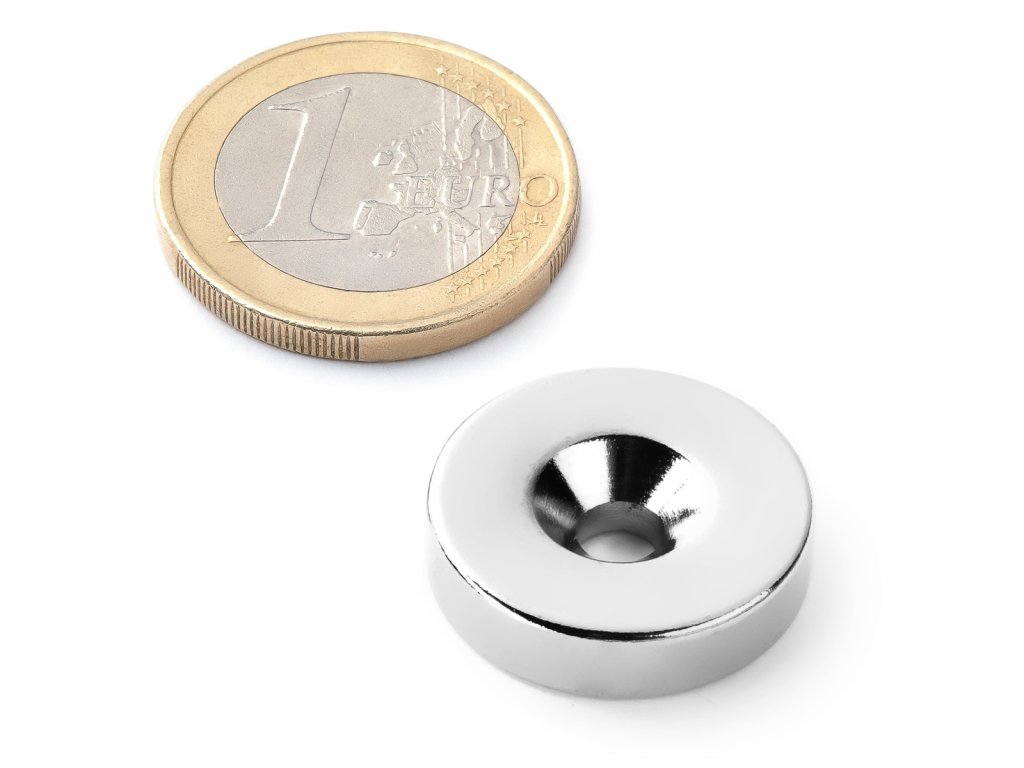

    Neodymium NdFeB ring magnet D 20/4.5 mm, H 5 mm, N38, nickel, countersunk

    Code: E101288
    Not rated
    Neodymový magnet mezikruží
    €2,79 / pcs €2,31 excl. VAT
    In Stock
    Diameter D: 20 mm | Diameter D1: 4.5 mm | H: 5 mm | Pull force: approx. 6,5 kg (approx. 63.74 N) | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium NdFeB ring magnets
    Type: Neodymium
    Countersunk t: 9 mm
    Description: Circle with recess for M4
    Diameter D: 20 mm
    Diameter d1: 4.5 mm
    Height H (mm): 5 mm
    Magnetization: Axial with height
    Pull force (cca 1kg ~ 10N): 63.74 N
    Pull force 2: approx. 6,5 kg (approx. 63.74 N)
    Quality: N38
    Surface: nickel (Ni-Cu-Ni)
    Temperature (°C): 80 °C
    Tolerance: +/- 0,1 mm
    Weight (g): 11 g
