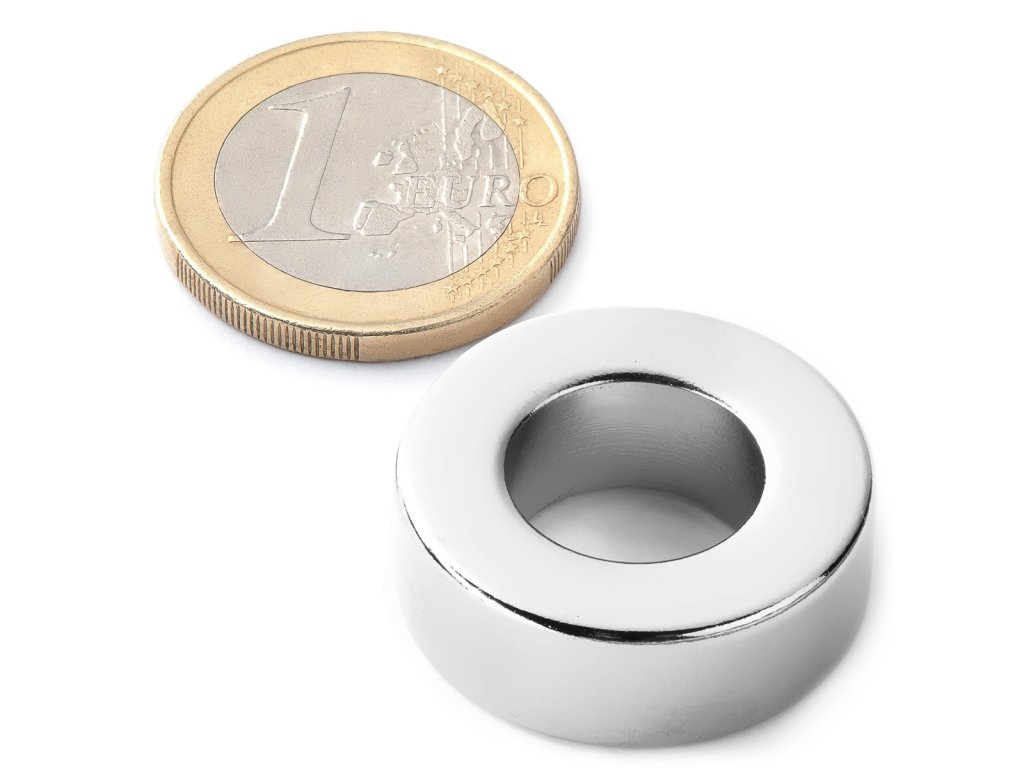

    Neodymium NdFeB ring magnet D 24.5/13 mm, H 8.5 mm, N38, nickel

    Code: E101301
    Not rated
    Neodymový magnet mezikruží
    €5,52 / pcs €4,56 excl. VAT
    In Stock

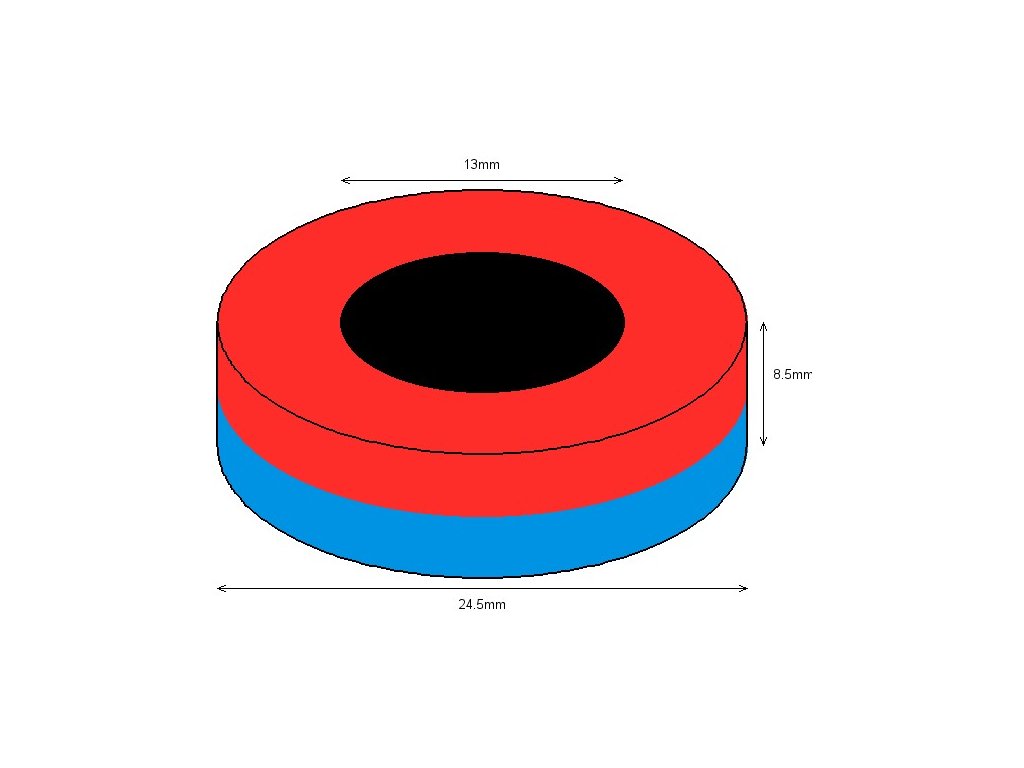

    Diameter D: 24.5 mm | Diameter D1: 13 mm | H: 8.5 mm | Pull force: approx. 11 kg (approx. 107.87 N) | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium NdFeB ring magnets
    Type: Neodymium
    Diameter D: 24.5 mm
    Diameter d1: 13 mm
    Height H (mm): 8.5 mm
    Magnetization: Axial with height
    Pull force (cca 1kg ~ 10N): 107.87 N
    Pull force 2: approx. 11 kg (approx. 107.87 N)
    Quality: N38
    Surface: nickel (Ni-Cu-Ni)
    Temperature (°C): 80 °C
    Tolerance: +/- 0,1 mm
    Weight (g): 20 g
