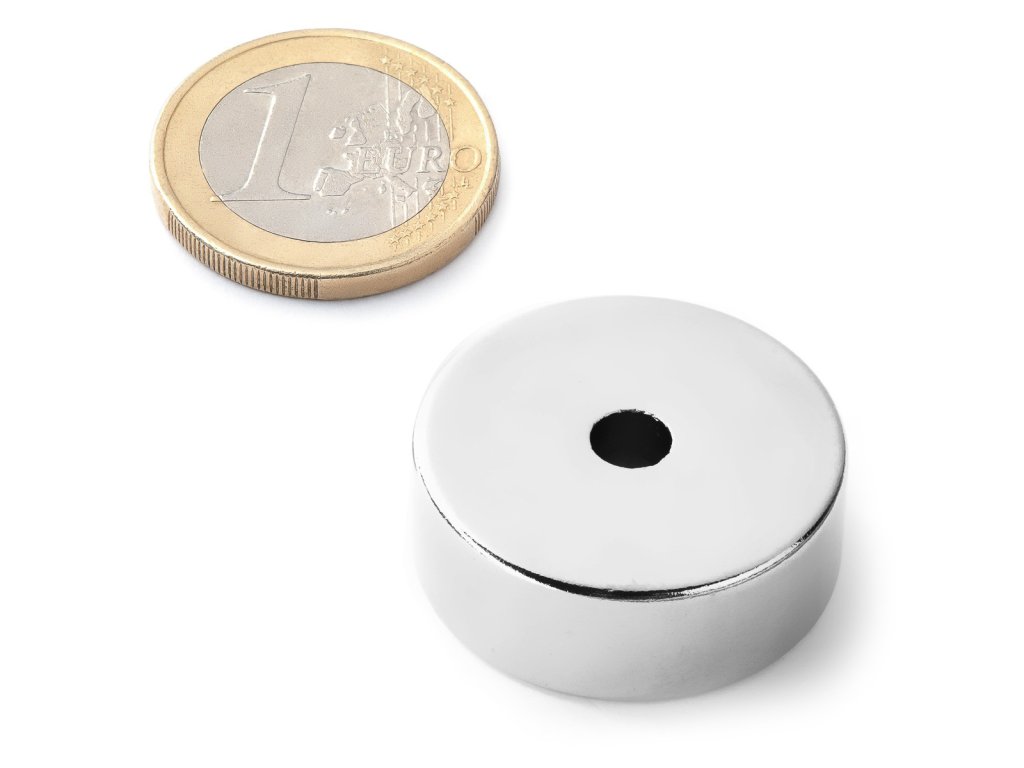

Neodymium NdFeB ring magnet D 27/5 mm, H 10 mm, N38, nickel

Code: E101305
Not rated
€8,74 / pcs €7,22 excl. VAT
In Stock
Diameter D: 27 mm | Diameter D1: 5 mm | H: 10 mm | Pull force: approx. 17 kg (approx. 166.71 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 27 mm
Diameter d1: 5 mm
Height H (mm): 10 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 166.71 N
Pull force 2: approx. 17 kg (approx. 166.71 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 42 g
