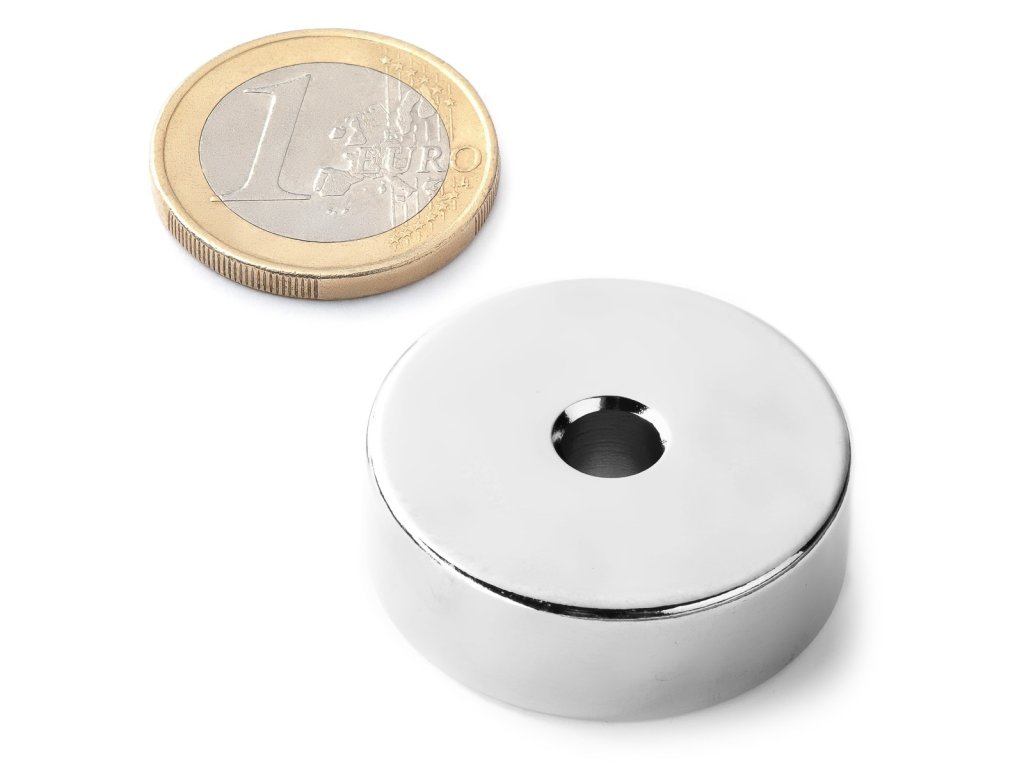

Neodymium NdFeB ring magnet D 30/6 mm, H 10 mm, N38, nickel

Code: E101308
Not rated
€9,75 / pcs €8,06 excl. VAT
In Stock
Diameter D: 30 mm | Diameter D1: 6 mm | H: 10 mm | Pull force: approx. 19 kg (approx. 186.33 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 30 mm
Diameter d1: 6 mm
Height H (mm): 10 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 186.33 N
Pull force 2: approx. 19 kg (approx. 186.33 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 52 g
