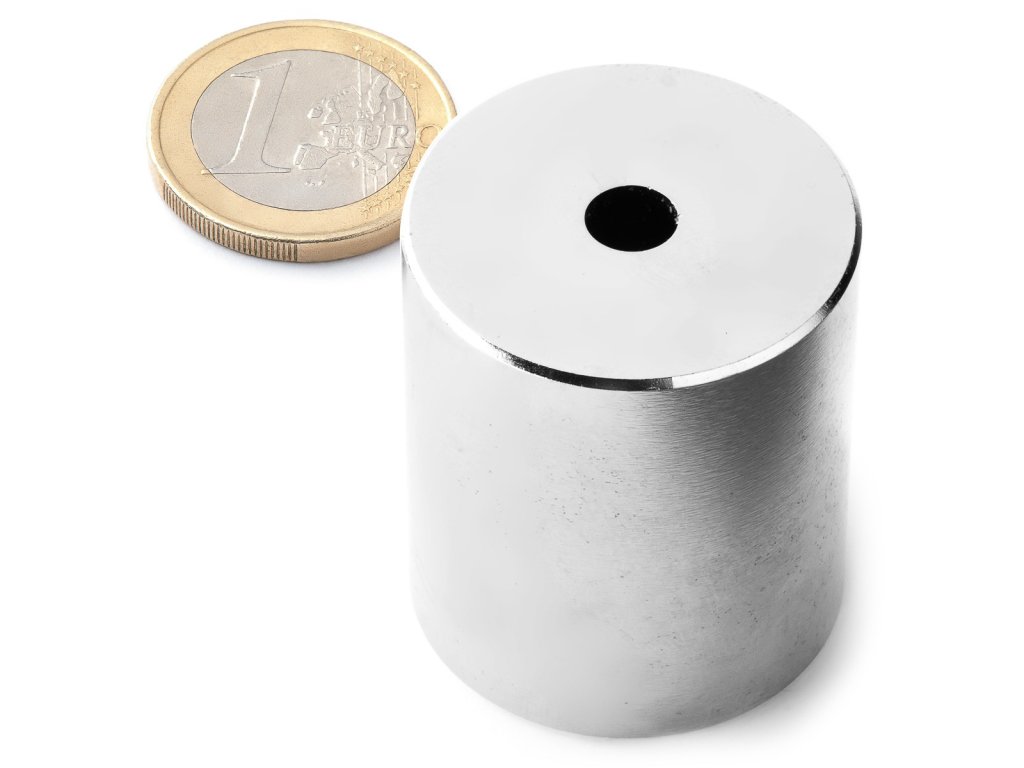

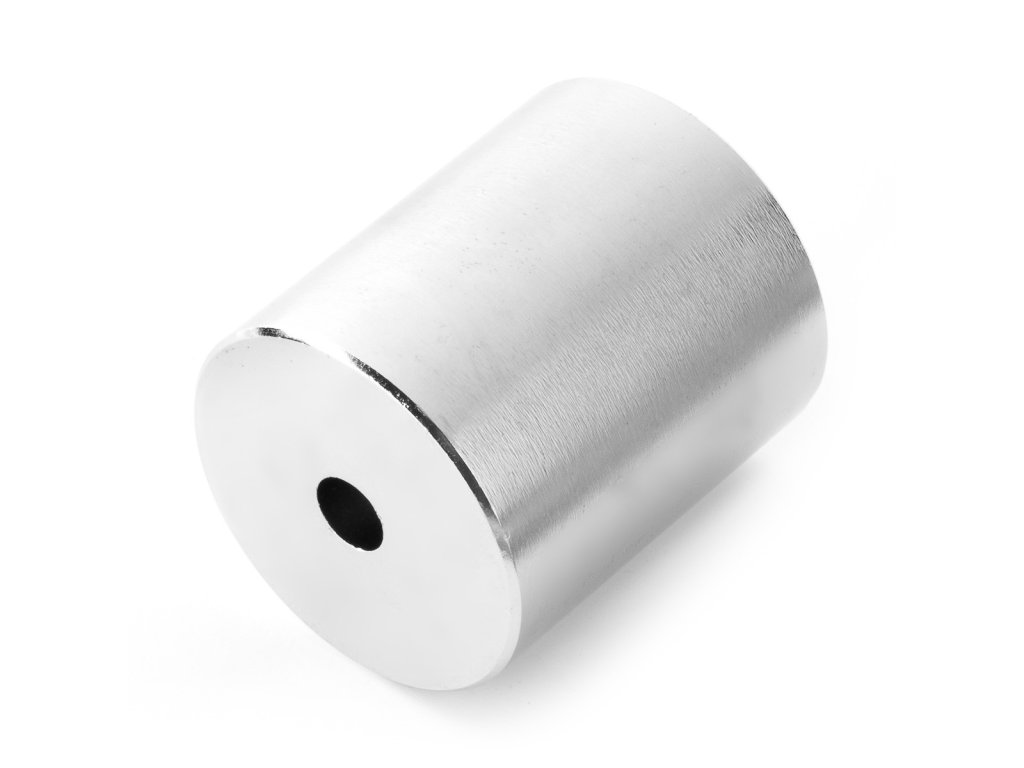

Neodymium NdFeB ring magnet D 30/6 mm, H 35 mm, N38, nickel

Code: E101309
Not rated
€21,31 / pcs €17,61 excl. VAT
In Stock
Diameter D: 30 mm | Diameter D1: 6 mm | H: 35 mm | Pull force: approx. 36 kg (approx. 353.04 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 30 mm
Diameter d1: 6 mm
Height H (mm): 35 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 353.04 N
Pull force 2: approx. 36 kg (approx. 353.04 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 180 g
