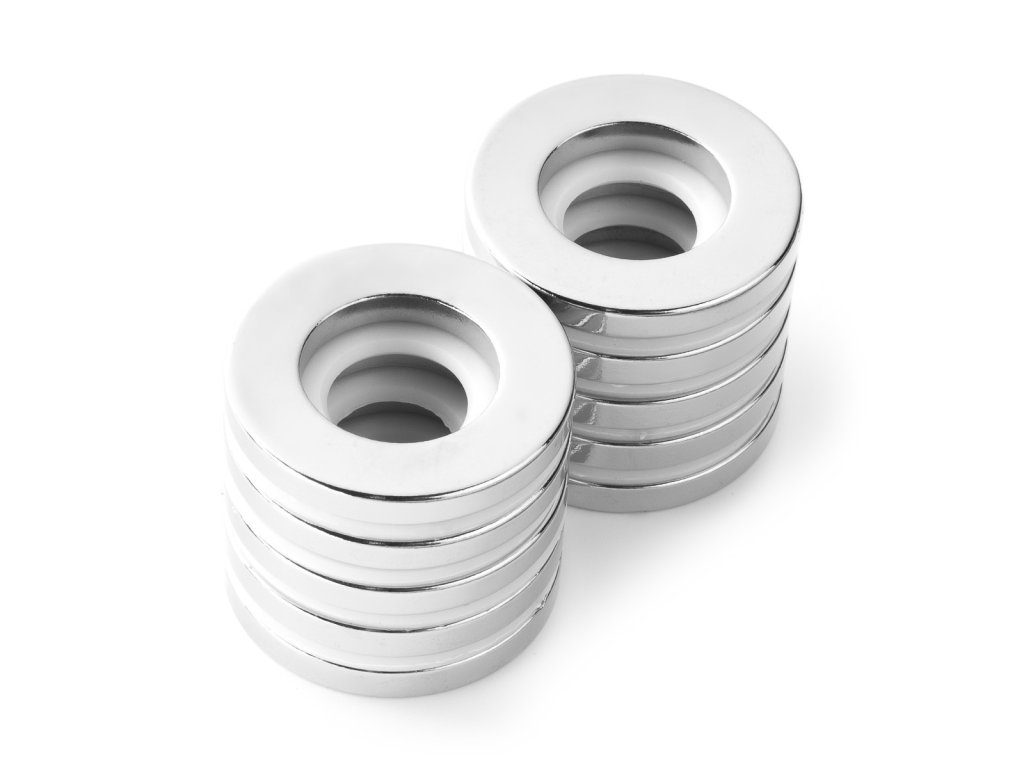

Neodymium NdFeB ring magnet D 32/18 mm, H 4 mm, N42, nickel

Code: E101312
Not rated
€5,52 / pcs €4,56 excl. VAT
In Stock
Diameter D: 32 mm | Diameter D1: 18 mm | H: 4 mm | Pull force: approx. 7,5 kg (approx. 73.55 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 32 mm
Diameter d1: 18 mm
Height H (mm): 4 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 73.55 N
Pull force 2: approx. 7,5 kg (approx. 73.55 N)
Quality: N42
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 12 g
