Permanent lifting magnet NEO

Code: SLM0150 SLM0300 SLM0600 SLM1000 SLM1500 SLM2000 Choose variant
New
Not rated
€300,50 / pcs €435,23 / pcs €649,96 / pcs €972,12 / pcs €1 488,38 / pcs €1 692,58 / pcs from €300,50 / pcs €248,35 excl. VAT €359,69 excl. VAT €537,16 excl. VAT €803,40 excl. VAT €1 230,07 excl. VAT €1 398,83 excl. VAT from €248,35 excl. VAT
In Stock In Stock In Stock In Stock In Stock In Stock Choose variant
Variant

Make use of neodymium magnets that have a higher bearing capacity than other suspension lifting magnets of the same size. NEO is suitable for lifting and handling.

Detailed information

Product detailed description

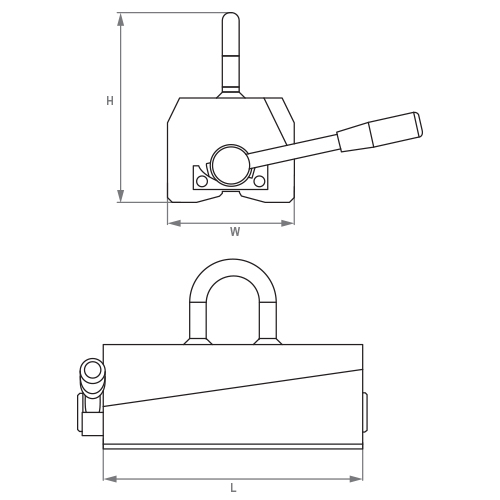

MODEL
W (mm)
L (mm)
H (mm) Eye diameter
(mm)
Weight
(kg)
Max. tested capacity
(kg)
Workload limit flat materials (kg) Workload limit round materials (kg) Min/max diameter (mm)
NEOL150 60 93 120 10 3 450 150
65
40/100
NEOL300 100 152 180 16 10 900 300
150
60/200
NEOL600 120 246 180 20 21 1800 600
300
65/270
NEOL1000 146
306
236 20 40 3200 1000
500
100/300
NEOL1500 165 374 273
20
69 4700 1500
750
150/350
NEOL2000 165 478 273 20 90 6200 2000
1000
150/350
Important parameters:
  • Application: Lifting
  • Technology: Permanent
  • Nominal lifting capacity for flat material: up to 2000 kg
  • Nominal lifting capacity for round material: up to 1000 kg
  • Temperature: max. 80 °C
  • Safety factor: 3+ (tested according to EN 13155)

Use:

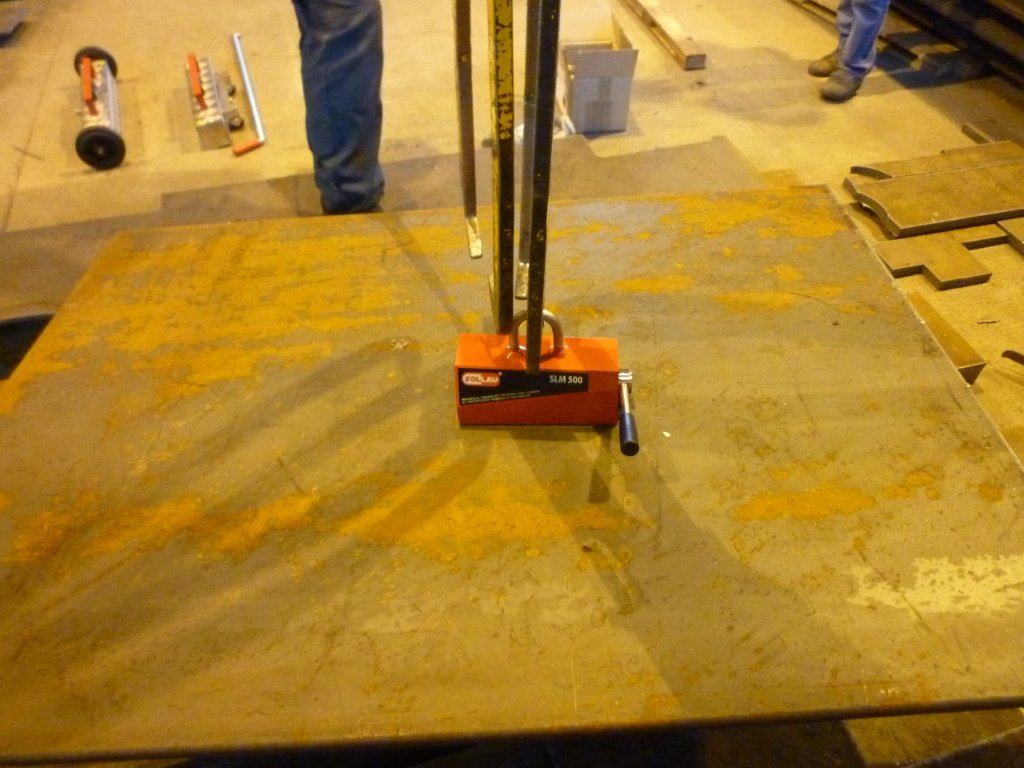

  • Handling flat, round, and cylindrical workpieces

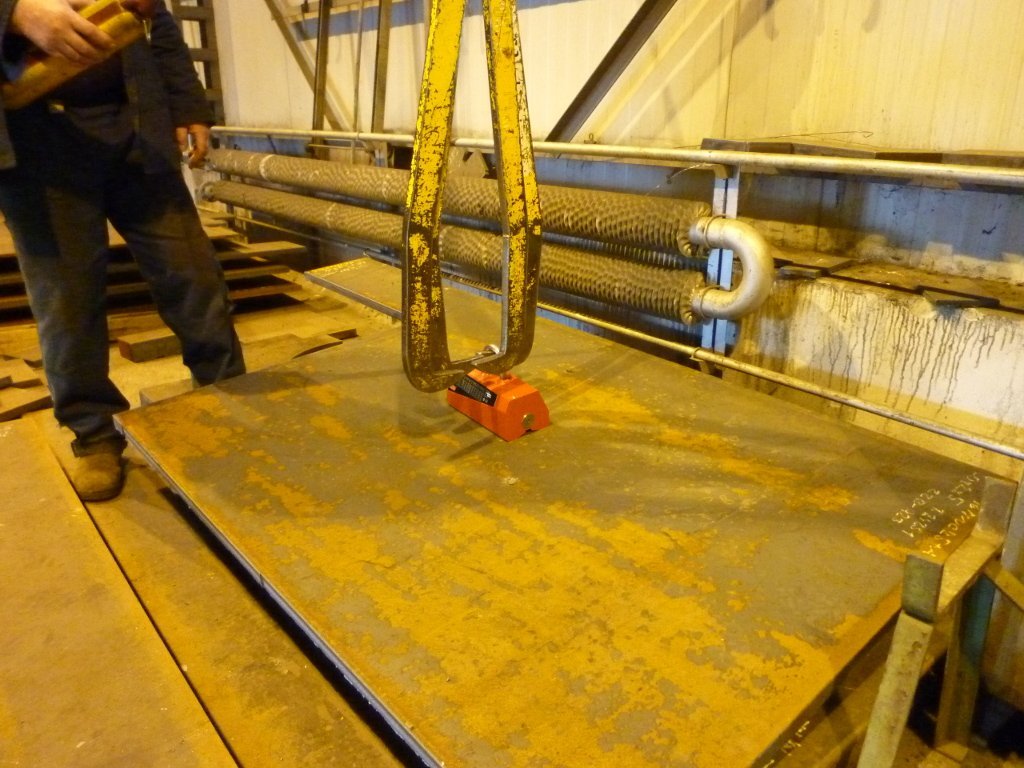

  • Lifting of profiled sections and sheets

Scope of supply:

  • Magnet with label
  • Instructions for use
  • Certificate
Detailed description:

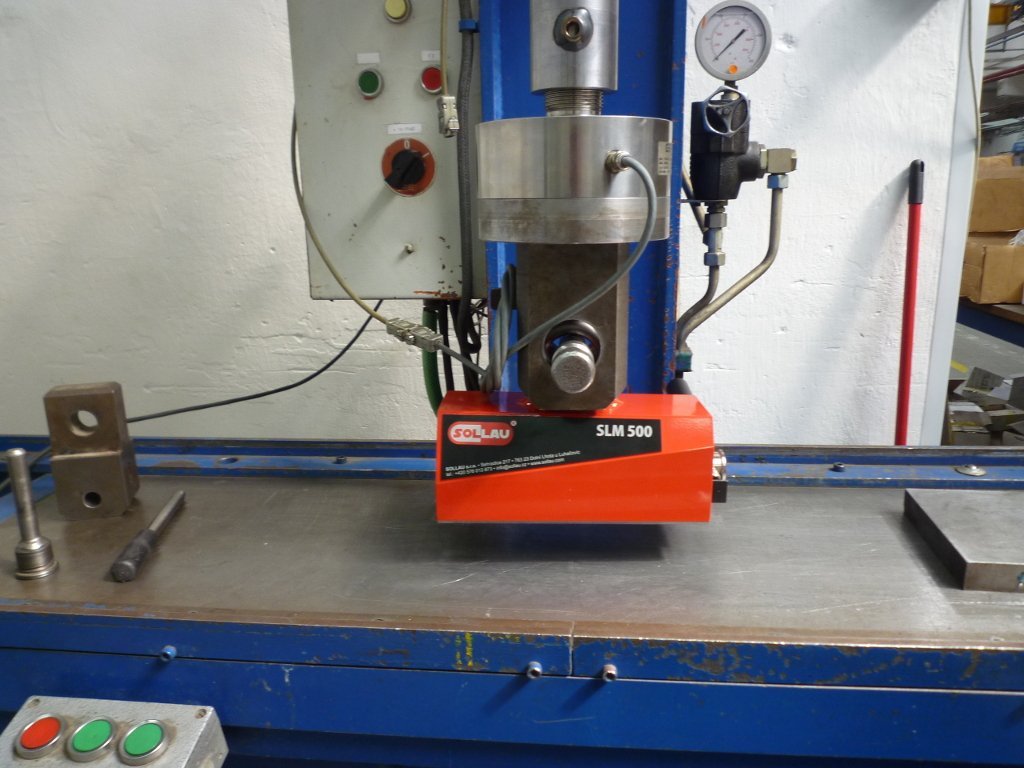

It easily handles flat, round, and cylindrical loads with emphasis on safety and convenience. We test each individual magnet for break-away force with an air gap to simulate real operating conditions. The magnet body is highly resistant to mechanical damage, the bearings are secured, so their life span is longer. The magnet features a versatile lifting eye design for easy suspension. The magnet enables load handling at a maximum temperature of 80°C.
