Permanent magnetic chuck Neomicro

Code: NEOC100175 NEOC100250 NEOC150250 NEOC150450 NEOC200400 Choose variant
Not rated
€564,19 / pcs €663,81 / pcs €759,46 / pcs €1 088,62 / pcs €1 232,31 / pcs from €564,19 / pcs €466,27 excl. VAT €548,60 excl. VAT €627,65 excl. VAT €899,69 excl. VAT €1 018,44 excl. VAT from €466,27 excl. VAT
In Stock Out of stock In Stock In Stock In Stock Choose variant
Variant
  • Solid and waterproof design
  • High stability and accuracy of the chuck during surface grinding
  • Possibility to clamp even the thinnest parts
  • Long life span thanks to the fixed top plate, which can be reground many times Easy operation and low maintenance
  • Durable switching mechanism

Detailed information

Product detailed description

Model

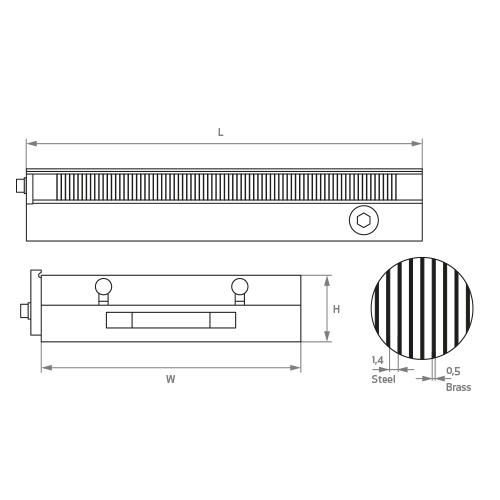

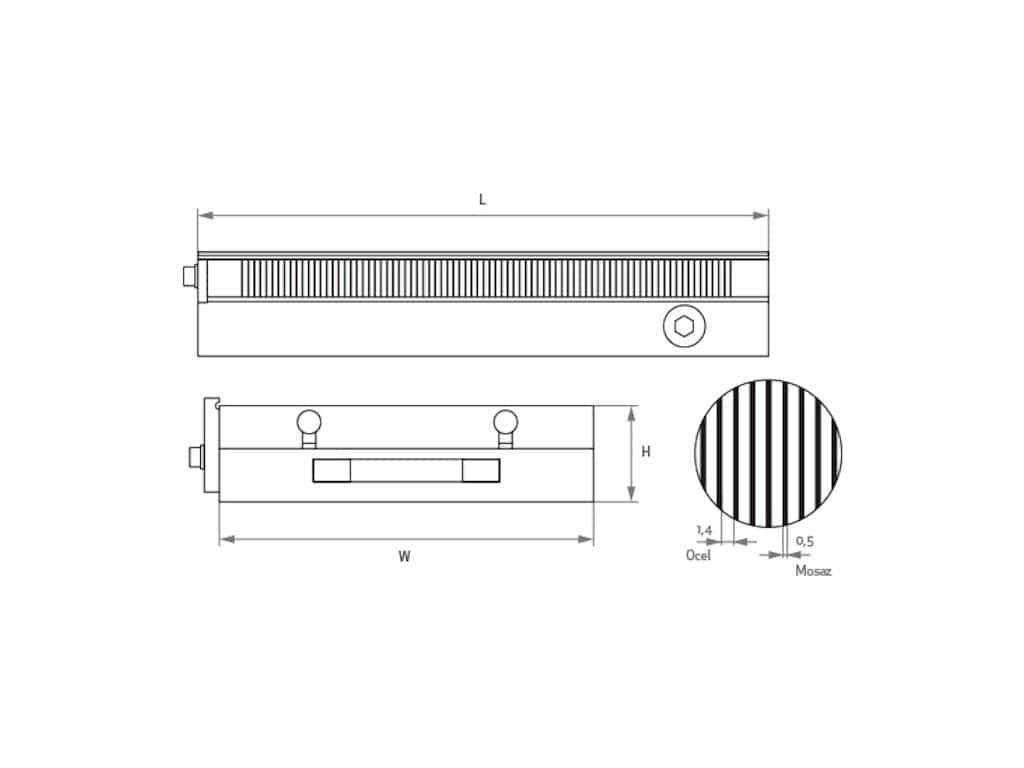

Chuck dimension (mm)
W (mm)
L (mm) H (mm) Weight (kg)
NEOC100175 100x175 100 175 49 7
NEOC100250 100x250 100 250 49 10
NEOC150250 150x250 150 250 51 15
NEOC150450 150x450 150 450 51 28
NEOC200400 200x400 200 400 51 34
Important parameters:
  • Application: Grinding, EDM
  • Technology: Permanent
  • Poles: Transverse
  • Min. workpiece size: 4 x 4 x 1 mm
  • Regrinding limit: 7 mm
  • Holding force: 100 N/cm2
  • Pole pitch: T1.9 1.4+0.5 mm - steel/brass

Use:

  • Precise surface grinding of small and thin, as well as large parts
  • Also suitable for electrical discharge machining (EDM)

Scope of supply:

  • Magnetic chuck
  • Set of clamps
  • Allen key
  • Rear and side stop blocks
  • Instructions for use
Detailed description:

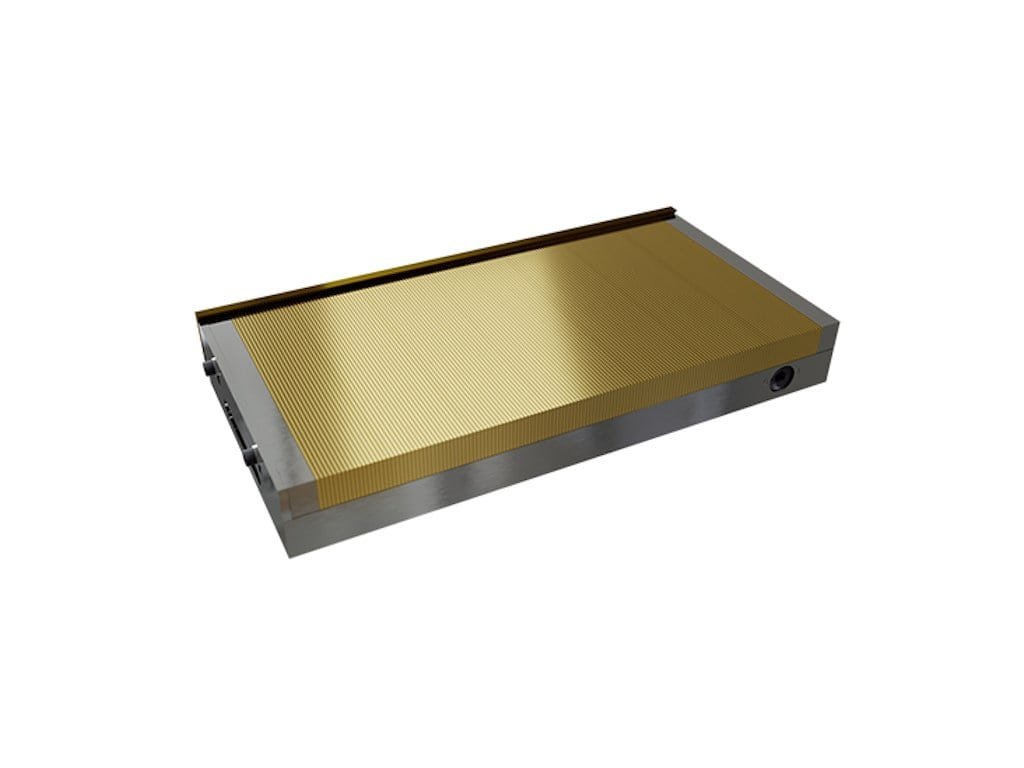

The Neomicro permanent magnetic chuck is ideal for precise grinding of small and thin as well as large pieces or for electrical discharge machining (EDM). Its structure is waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate composed of brass and steel lamellae ensures high stability, accuracy, and efficiency of clamping using the maximum concentration of magnetic force into the workpiece. A long life span is ensured by the top plate with a regrinding limit up to 7 mm.
