Permanent magnetic chuck Neomill Compact

Code: NEOMC150250 NEOMC150450 NEOMC200400 NEOMC200500 NEOMC200600 NEOMC250400 NEOMC300500 NEOMC300600 Choose variant
Not rated
€774,62 / pcs €1 207,38 / pcs €1 303,92 / pcs €1 549,31 / pcs €1 812,42 / pcs €1 602,12 / pcs €1 933,38 / pcs €2 180,50 / pcs from €774,62 / pcs €640,18 excl. VAT €997,83 excl. VAT €1 077,62 excl. VAT €1 280,42 excl. VAT €1 497,87 excl. VAT €1 324,07 excl. VAT €1 597,83 excl. VAT €1 802,07 excl. VAT from €640,18 excl. VAT
In Stock Out of stock In Stock Out of stock Out of stock Out of stock Out of stock In Stock Choose variant
Variant
  • Compact dimensions and a high holding force - 160 N/cm2
  • Long life span thanks to an unparalleled regrinding limit for the top plate up to 10 mm
  • Holding surface with uniform distribution of the magnetic force right up to the edges
  • Waterproof design

Detailed information

Product detailed description

Model
Chuck dimension (mm)
W (mm)
L (mm) H (mm) Weight (kg)
NEOMC150250 150x250 150 250 50 14
NEOMC150450 150x450 150 450 50 25
NEOMC200400 200x400 200 400 55 33
NEOMC200500 200x500
200
500 55 41
NEOMC200600 200x600 200 600
55
49
NEOMC250400 250x400 250 400 60 45
NEOMC300500 300x500 300 500 60 67
NEOMC300600 300x600 300 600 60 81
Important parameters:
  • Application: Milling
  • Technology: Permanent
  • Poles: Transverse
  • Min. workpiece size: 25 x 25 x 6 mm
  • Regrinding limit: 10 mm
  • Holding force: 160 N/cm2
  • Pole pitch: T15 11+4 mm - steel/epoxy resin

Use:

  • Milling
  • Drilling
  • Planing
  • Heavy grinding

Scope of supply:

  • Magnetic chuck
  • Stop bars
  • Allen key
  • Operating and maintenance instructions
Detailed description:

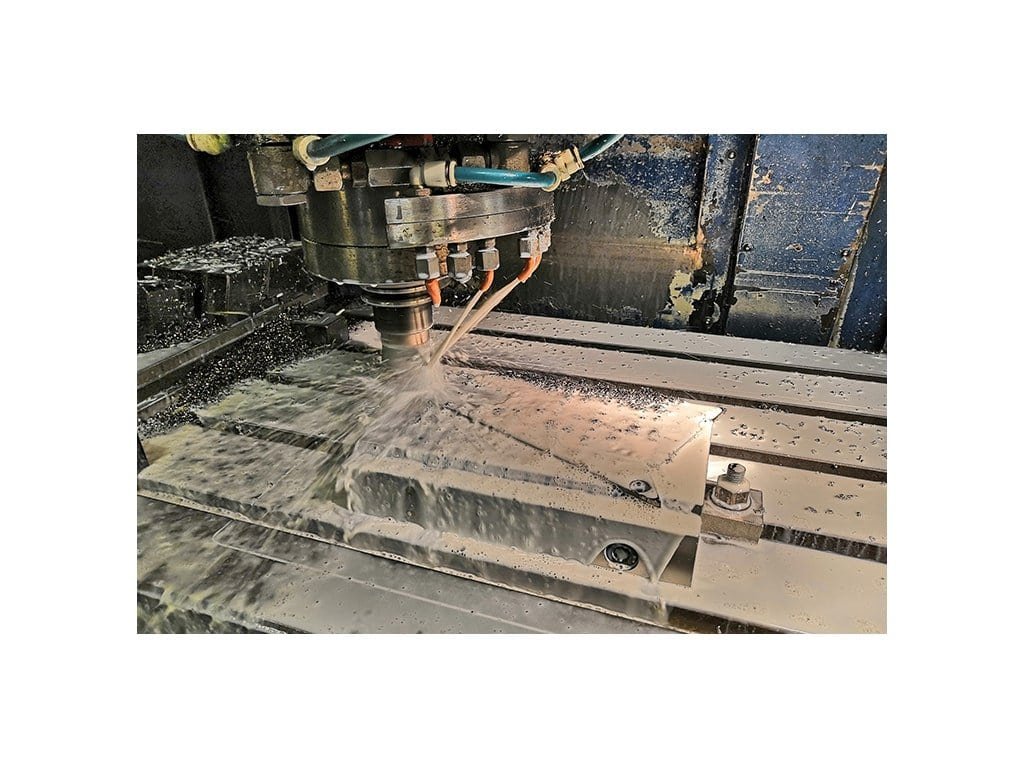

Neomill Compact is a permanent magnetic chuck with a unique waterproof design.The body (base) is made of durable and rigid material. The top plate is made of one piece of steel. The customer can prepare e.g. pockets and other auxiliary provisions for mass production anywhere on the top plate without slackening or disintegration of the top plate.
