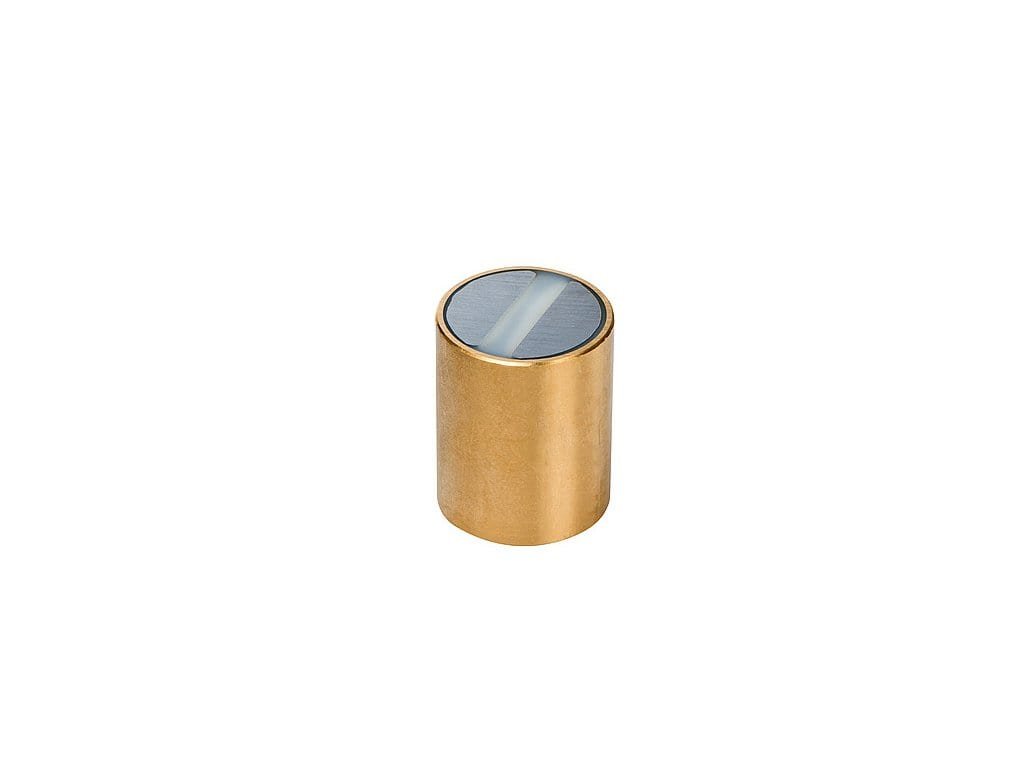

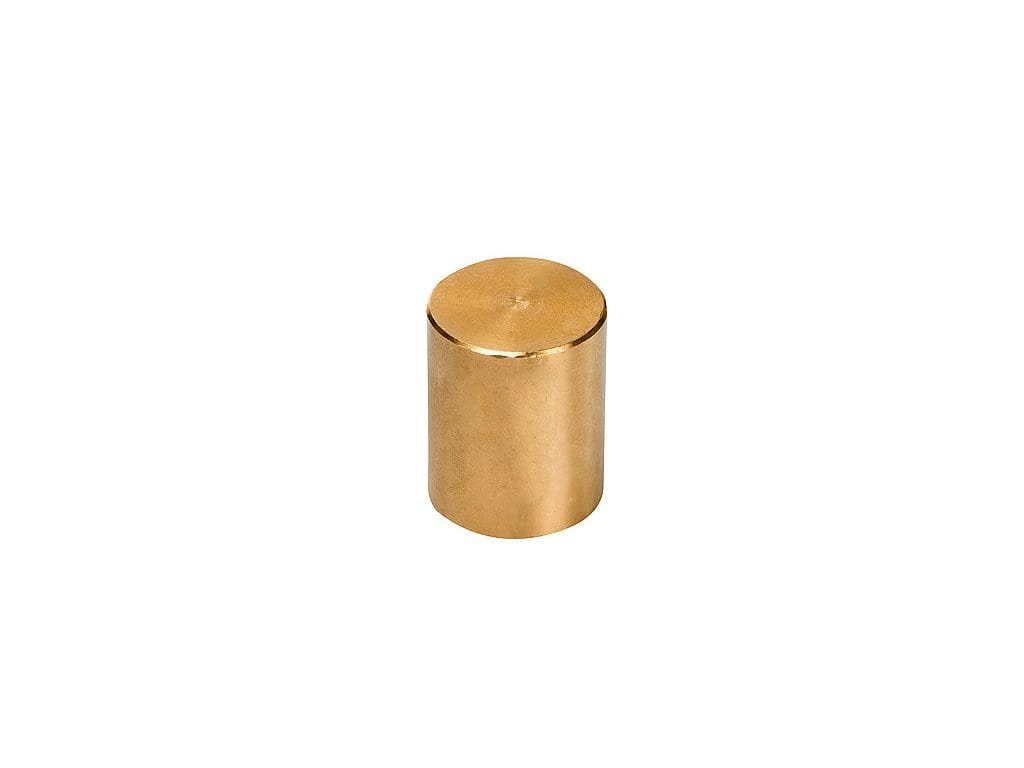

    SmCo brass body deep pot magnet tolerance h6 16x20 mm

    Code: BNC16-MTH6-02
    Not rated
    BNC16 MTH6 02 01 min
    €16,28 / pcs €13,45 excl. VAT
    In Stock

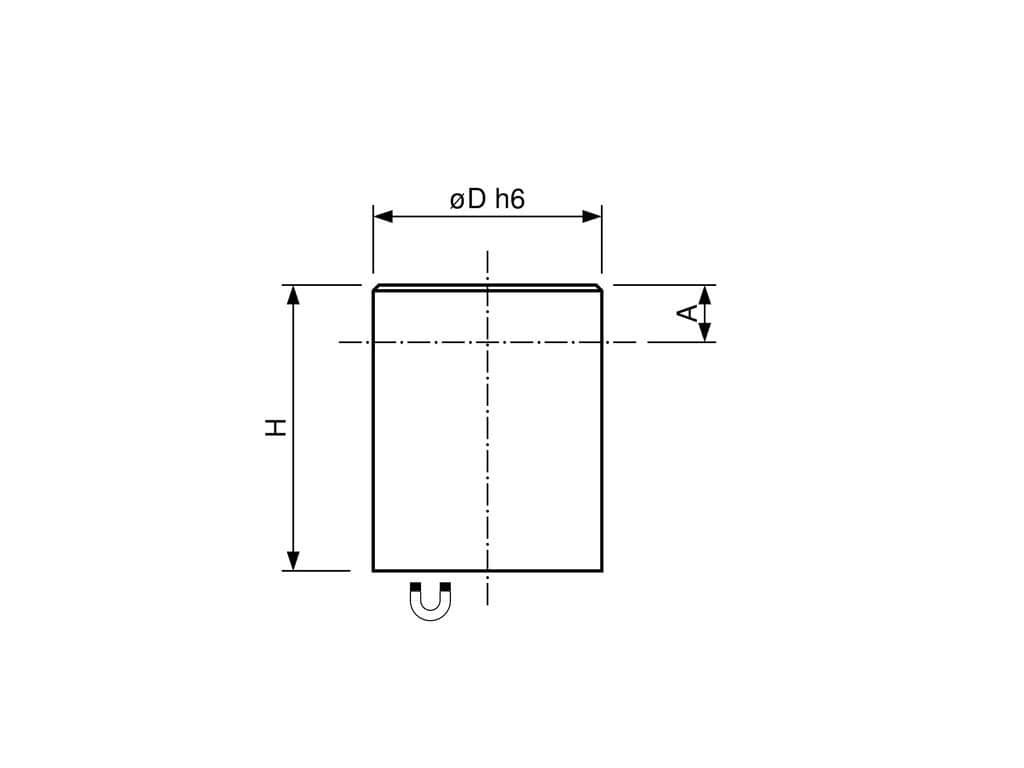

    Diameter D: 16 mm | H: 20 mm | Pull force: 125 N | Temperature: 200 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: SmCo brass body deep pot magnets
    Type: SmCo
    H: 20 mm
    A1: 2 mm
    Diameter D: 16 mm
    Pull force (cca 1kg ~ 10N): 125 N
    Shape: Without thread
    Spacing: 3 mm
    Temperature (°C): 200 °C
    Tolerance: +0.1/-0.1 mm
    Weight: 30 g
