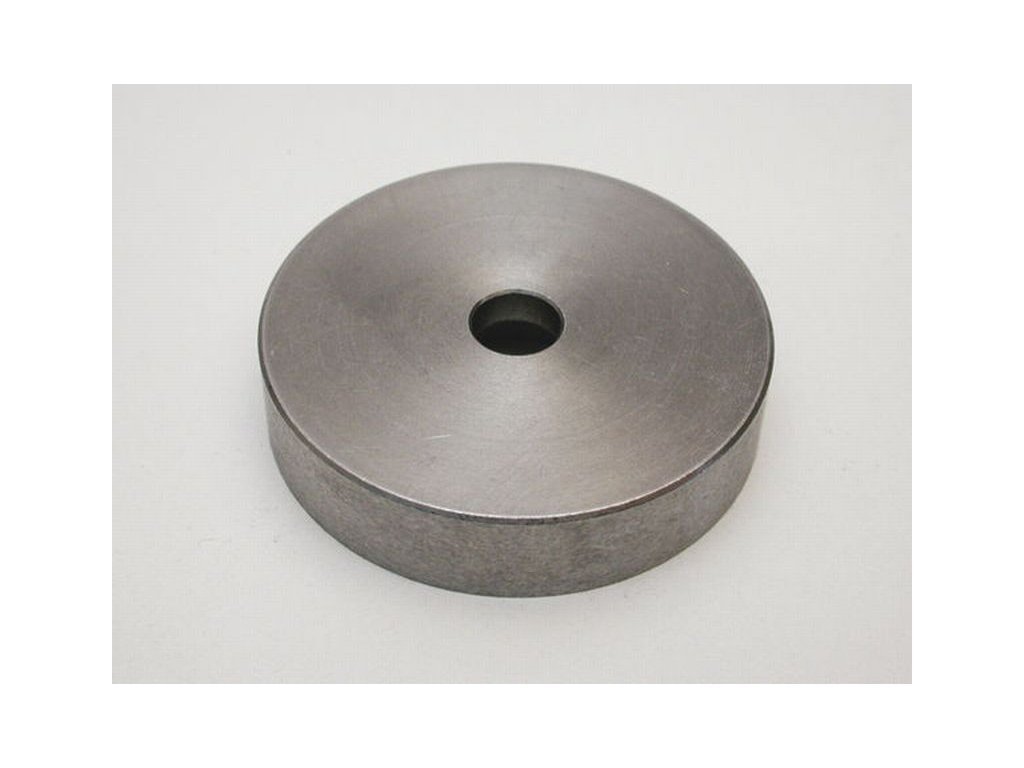

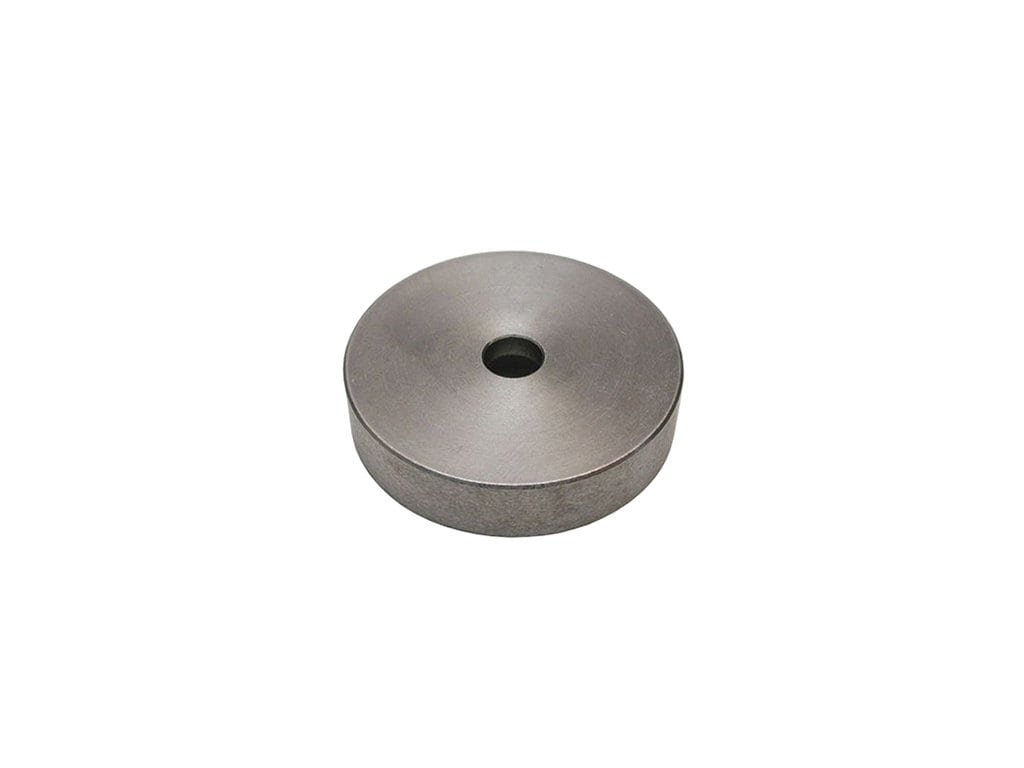

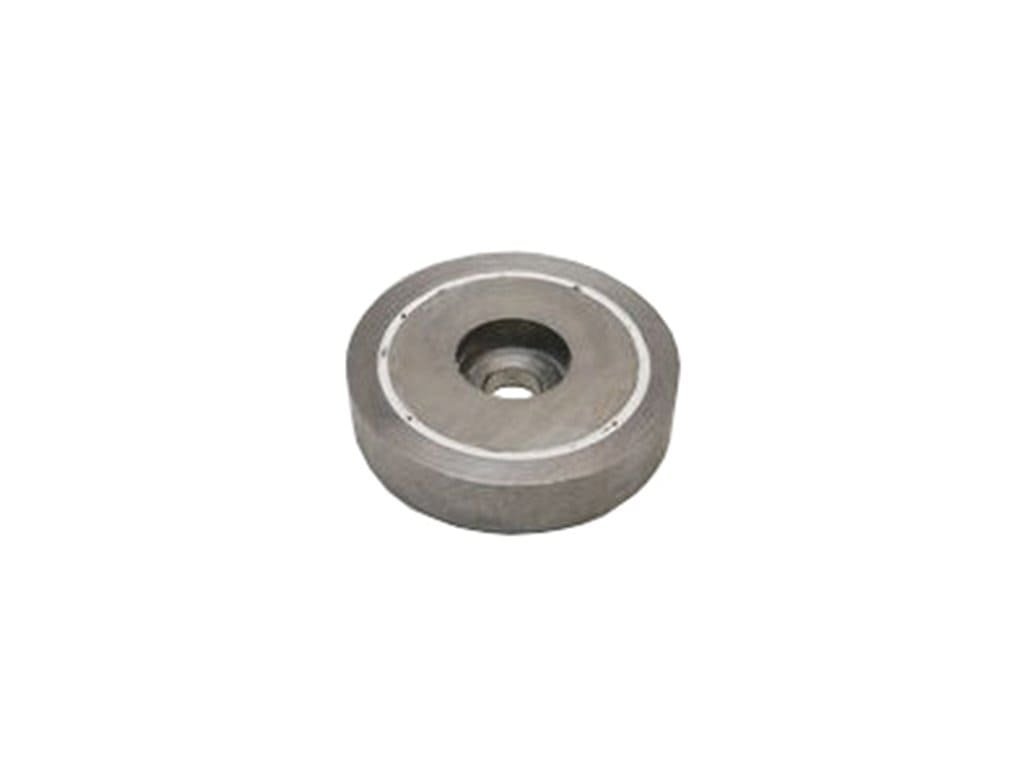

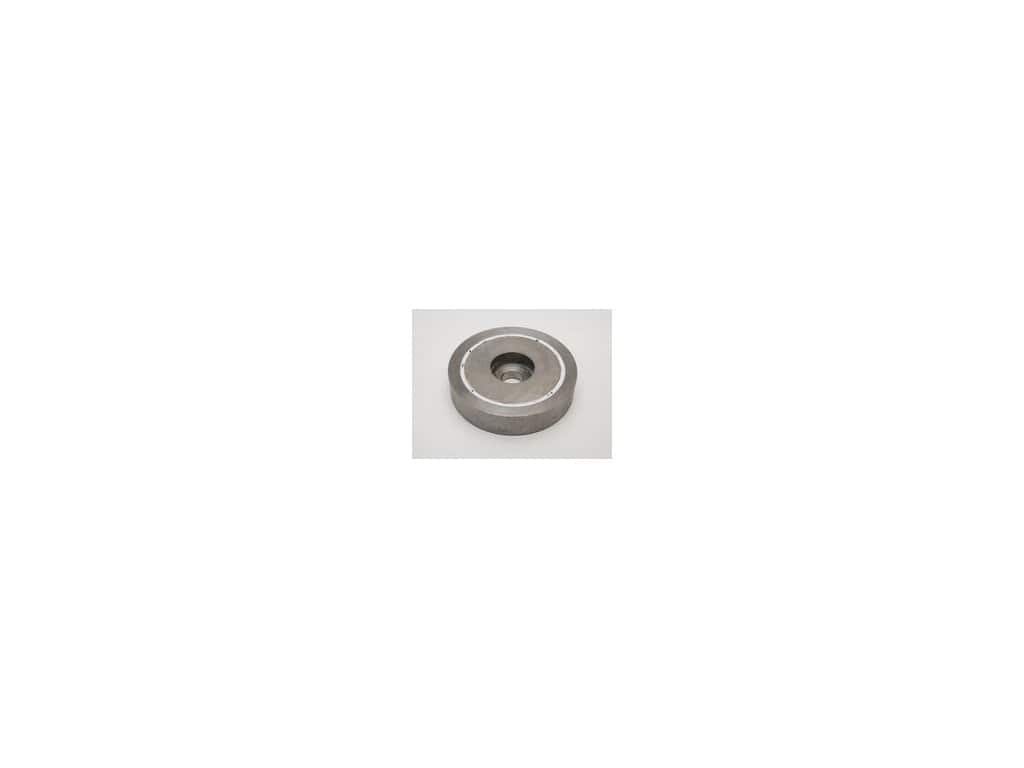

SmCo countersunk pot magnet 25x4.5x7 mm

Code: MC10150
Not rated
€19,35 / pcs €15,99 excl. VAT
In Stock

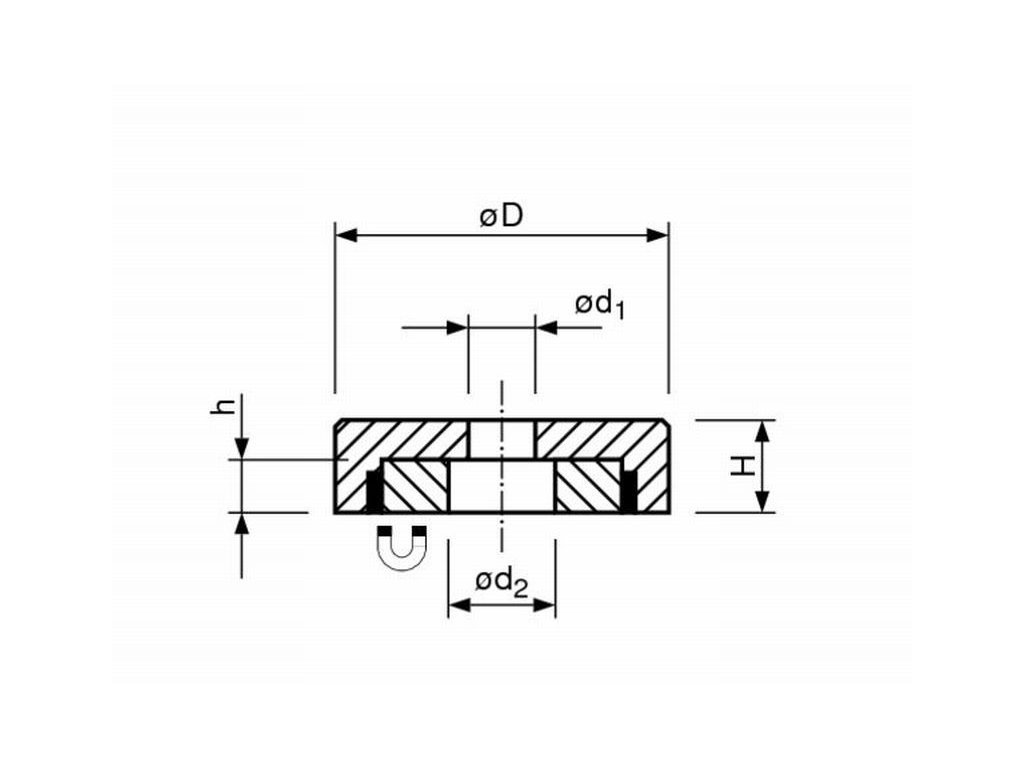

Diameter D: 25 mm | d1: 4.5 mm | H: 7 mm | Pull force: 80 N | Temperature: 350 °C

Detailed information

Product detailed description


Additional parameters

Category: SmCo countersunk pot magnets
Type: SmCo
d1: 4.5 mm
d2: 8 mm
H: 7 mm, 4 mm
Diameter D: 25 mm
Pull force (cca 1kg ~ 10N): 80 N
Shape: With center hole
Temperature (°C): 350 °C
Tolerance: +0.1/-0.1 mm
Weight: 24 g
