    SmCo countersunk pot magnet 32x5,5x7 mm

    Code: BS32-SDS
    Not rated
    BS32 SDS 01 min
    €24,19 / pcs €19,99 excl. VAT
    Out of stock

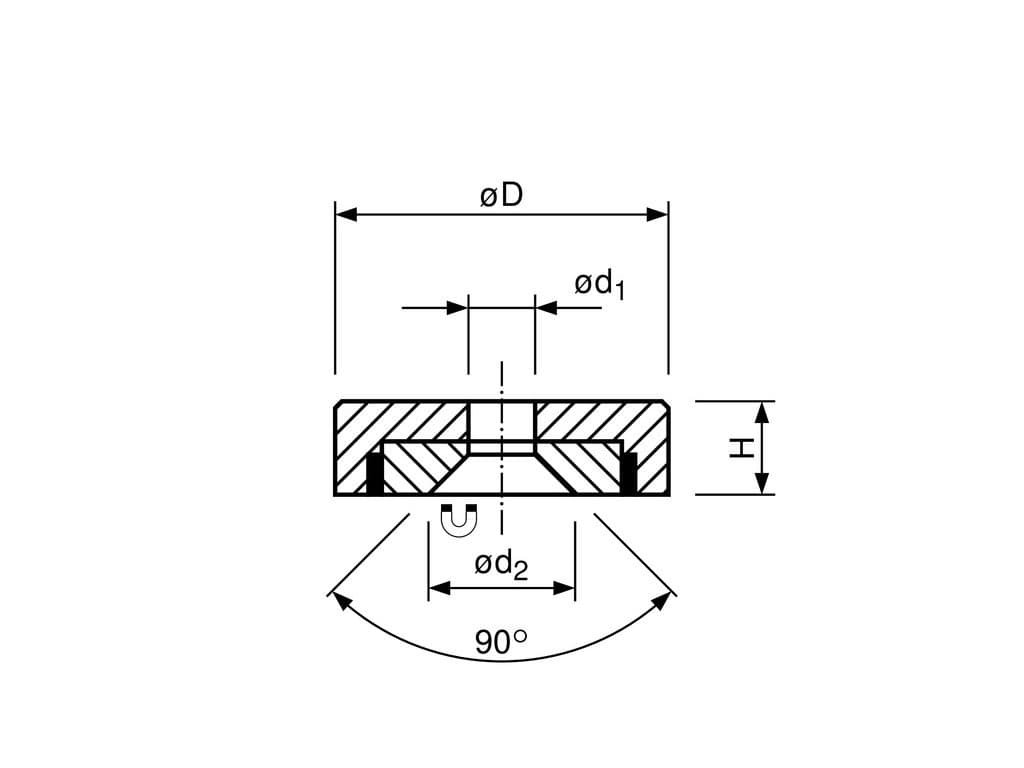

    Diameter D: 32 mm | d1: 5,5 mm | H: 7 mm | Pull force: 235 N | Temperature: 280 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: SmCo countersunk pot magnets
    Type: SmCo
    d1: 5,5 mm
    d2: 11,5 mm
    H: 7 mm
    Diameter D: 32 mm
    Pull force (cca 1kg ~ 10N): 235 N
    Shape: With center hole
    Temperature (°C): 280 °C
    Tolerance: +0.1/-0.1 mm
    Weight: 40 g
