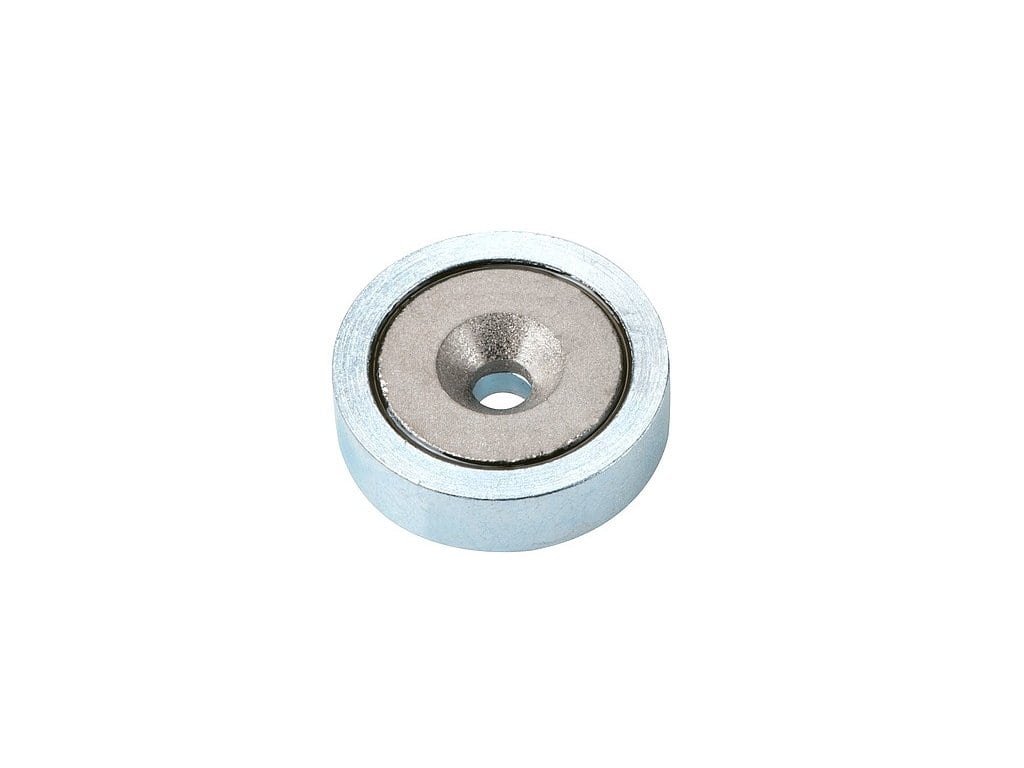

SmCo countersunk pot magnet 40x5,5x8 mm

Code: BS40-SDS
Akce
Not rated
€33,06 –15 %
BS40 SDS 01 min
€33,06 –15 % €28,10 / pcs €23,22 excl. VAT
Out of stock
Diameter D: 40 mm | d1: 5,5 mm | H: 8 mm | Pull force: 540 N | Temperature: 280 °C

Detailed information

Product detailed description

.

Additional parameters

Category: SmCo countersunk pot magnets
EAN: F40-SCCvT
Type: SmCo
d1: 5,5 mm
d2: 11,5 mm
H: 8 mm
Diameter D: 40 mm
Pull force (cca 1kg ~ 10N): 540 N
Shape: With center hole
Temperature (°C): 280 °C
Tolerance: +0.1/-0.1 mm
Weight: 75 g
