    Spouts from square to round JACOB

    Code: E915057 E915058 E915059 E915060 E915061 Choose variant
    Not rated

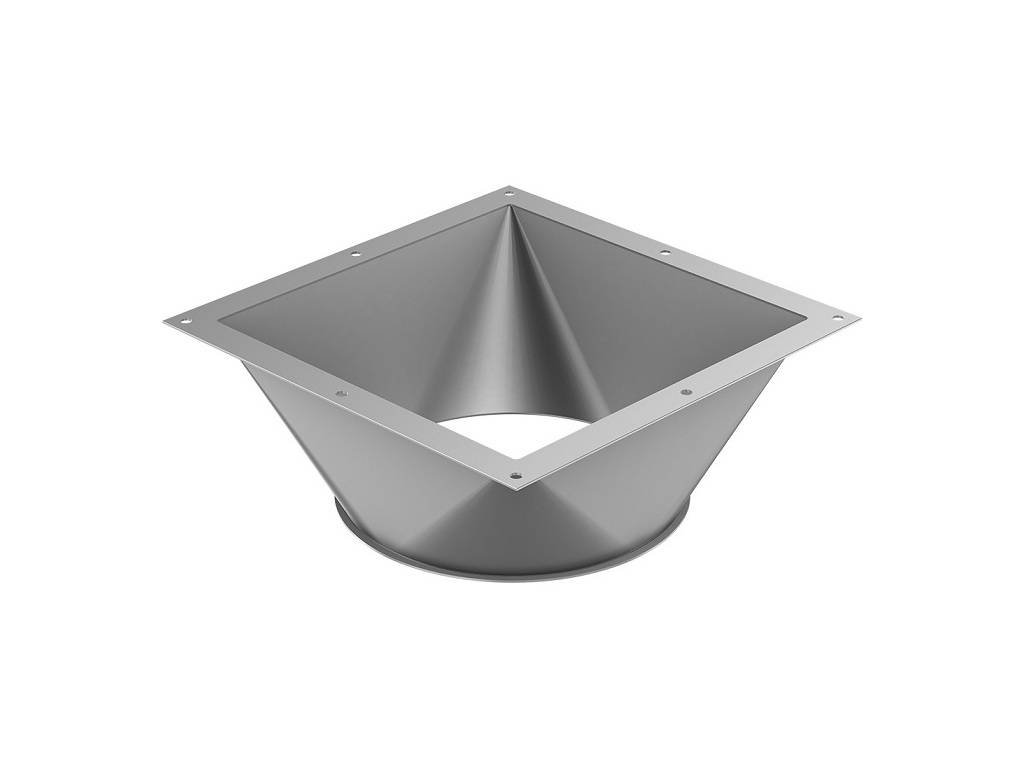

    Spouts from square to round_01
    €120,12 / pcs €162,36 / pcs €178,92 / pcs €262,20 / pcs €372,54 / pcs from €120,12 / pcs €99,27 excl. VAT €134,18 excl. VAT €147,87 excl. VAT €216,69 excl. VAT €307,88 excl. VAT from €99,27 excl. VAT Measure price:
    Out of stock Out of stock Out of stock Out of stock Out of stock Choose variant
    Chosen variant is not available. Reset selected parameters.

    DN 100 | DN 120 | DN 150 | DN 200 | DN 250

    Detailed information

    Product detailed description

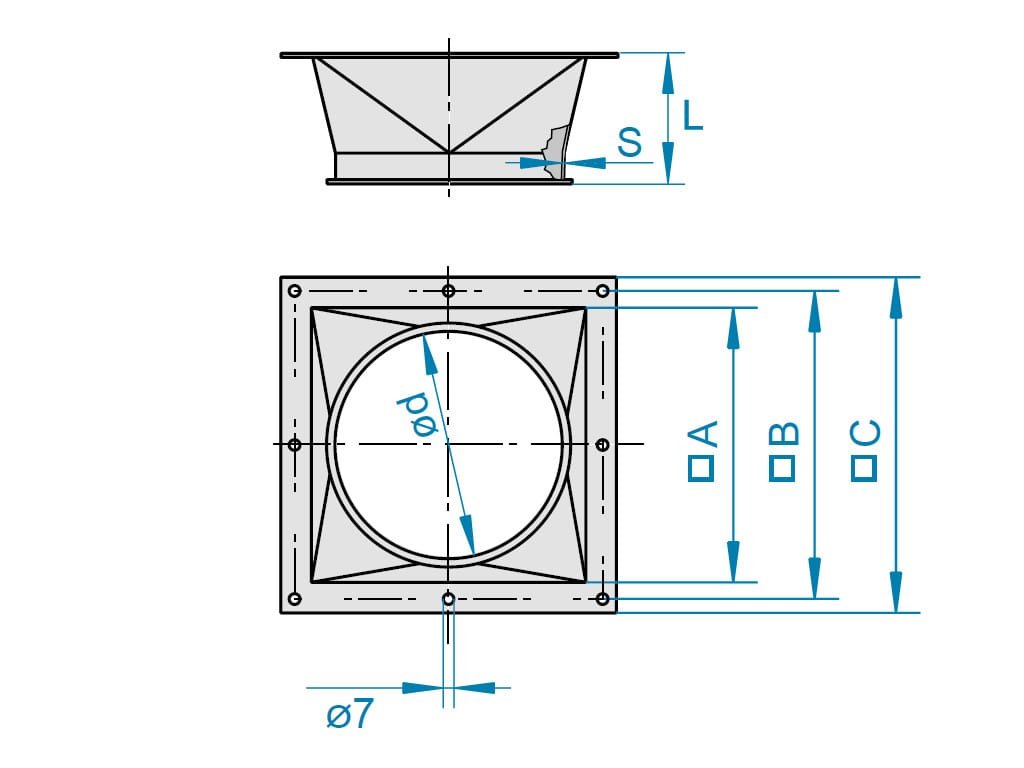

    MODELL
    Ø d (mm)
    A (mm)
    		 B (mm) C (mm) L (mm) S (mm) Material Weight (kg)
    Item no.
    DN 100
    		 100 120 140 160 60 2 Stainless steel 0,45 12103400
    DN 120
    		 120 140 164 180 70 2 Stainless steel 0,63 12123400
    DN 150
    		 150 180 202 220 85 2 Stainless steel 0,90 12153400
    DN 200
    		 200 250 270 290 115 2 Stainless steel 1,80 12203400
    DN 250 250 300 325 345 150 2 Stainless steel 2,70 12253400
    • Special models and individual flange dimensions on request

    • For use in conjunction with a square flat gasket

    • Lipped on one side for use with JACOB pull-ring system
    		  prechodka-ze-ctverce-na-kruh-jacob-min

    Additional parameters

    Category: Spouts from square to round
