AlNiCo countersunk pot magnet galvanized 19,1x3,7x7,5 mm
Code: BA19-SDSProduct detailed description
.Additional parameters
| Category: | AlNiCo countersunk pot magnets |
|---|---|
| Weight: | 0.017 kg |
| EAN: | F19 |
| Type: | AlNiCo |

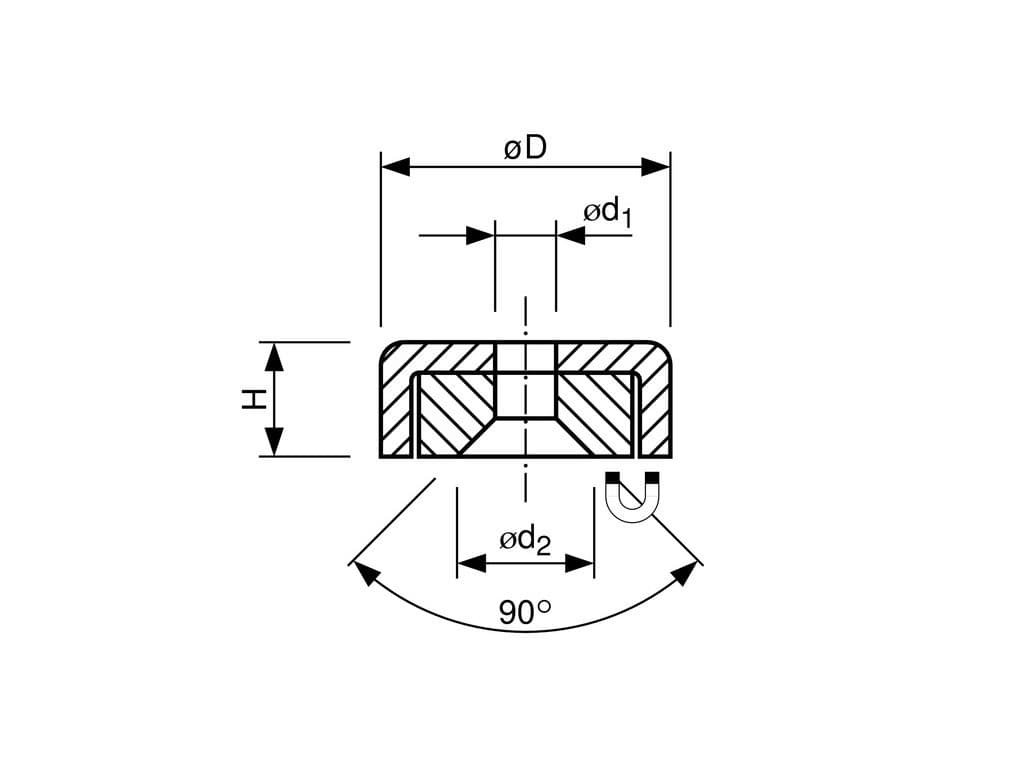

| d1: | 3,7 mm |
| d2: | 8,7 mm |
| H: | 7,5 mm |
| Coating: | Zinc |
| Diameter D: | 19,1 mm |
| Pull force (cca 1kg ~ 10N): | 30 N |
| Shape: | With center hole |
| Weight: | 17 g |
| Temperature (°C): | 200 °C |
| Tolerance: | +0.1/-0.1 mm |
