Chute magnet ML 200 N

Code: ML200N-133095
Not rated
€9 064,42 / pcs €7 491,26 excl. VAT
In Stock

Neodymium version

Detailed information

Product detailed description

The inline chute magnet is designed for separation of small ferromagnetic particles from materials of worse bulk and pouring properties (such as cereals, flour, powder, sawdust etc.) that could clog the traditional magnetic grate separators.

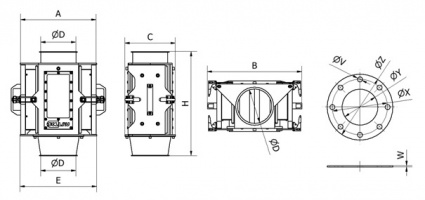

Model* Maximum capacity** Weight
(kg)
A
(mm)
B
(mm)
C
(mm)
ØD
(mm)
E
(mm)
H
(mm)
ML 200 N 75 m3/h 78 375 465 236 200 382 510





Comment:
*ML 200 N = INPUT DIAMETER 200 MM, NEODYMIUM MAGNETS
** The maximum capacity depends on the type and properties of the material being cleaned

ADVANTAGES

  • Ferrite and neodymium variants
  • Made-to-measure separators
  • Separation of magnetic particles from 0,5 mm
  • High processing capacity (up to 150 m3/h)
  • Excellent for abrasive and flow resistant materials

Magnetic induction:
Magnetic strength up to 7 500 Gauss on the stainless steel protective cover

Technical parameters:

Separator placement: inside of a pipeline
Material flow direction: vertical, horizontal
Max. magnetic induction (G): 7500 G
Maximum capacity. The mentioned capacities are informative and non binding: 75 (m3/h)
Connecting dimension, inlet and outlet diameter of the separator: 200 mm
Minimum size of the particles that can be captured by the separator: 0.5 mm
Max. operating temperature: 80 °C
Weight of the product: 78 kg
