Magnetic rod MTN Ø 25 mm, 1xM8, 16.000 Gs

Code: MTN 25X100 N MTN 25X150 N MTN 25X200 N MTN 25X250 N MTN 25X300 N MTN 25X350 N MTN 25X400 N MTN 25X450 N MTN 25X500 N Choose variant

Aktion

Not rated

Brand: SOLLAU

Magnetic rod MTN Ø 25 mm, 1xM8, 16.000 Gs

€79,44 / pcs €123,61 / pcs €164,76 / pcs €205,95 / pcs €247,13 / pcs €288,28 / pcs €329,47 / pcs €369,01 / pcs €411,88 / pcs from €79,44 / pcs €65,65 excl. VAT €102,16 excl. VAT €136,17 excl. VAT €170,21 excl. VAT €204,24 excl. VAT €238,25 excl. VAT €272,29 excl. VAT €304,97 excl. VAT €340,40 excl. VAT from €65,65 excl. VAT

Choose variant

Delivery to: 3.8.2026 3.8.2026 3.8.2026 3.8.2026 3.8.2026 3.8.2026 3.8.2026 3.8.2026 3.8.2026 Choose variant
Model
Chosen variant is not available. Reset selected parameters.

1 x M8 threaded | Magnetic rod with a diameter of 25 mm | Temperature resistance: 80 °C | Magnetic induction: 16000 Gs

Detailed information

Product detailed description

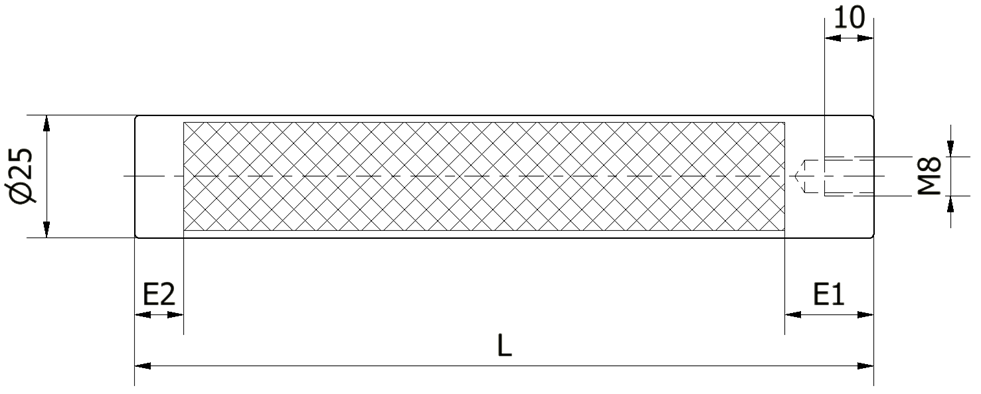

MODEL	L (mm)	E1 (mm)	E2 (mm)	WEIGHT (kg)	MAGNETIC INDUCTION	SURFACE TREATMENT	WORKING TEMPERATURE
MTN 25x100 N	100	25	19	0,50	16000 Gs	polishing	<80°C
MTN 25x150 N	150	21,5	18,5	0,75	16000 Gs	polishing	<80°C
MTN 25x200 N	200	21	15	1,00	16000 Gs	polishing	<80°C
MTN 25x250 N	250	22	10	1,25	16000 Gs	polishing	<80°C
MTN 25x300 N	300	23	10	1,50	16000 Gs	polishing	<80°C
MTN 25x350 N	350	26	25	1,75	16000 Gs	polishing	<80°C
MTN 25x400 N	400	25	22	2,00	16000 Gs	polishing	<80°C
MTN 25x450 N	450	25	18	2,25	16000 Gs	polishing	<80°C
MTN 25x500 N	500	25	14	2,50	16000 Gs	polishing	<80°C

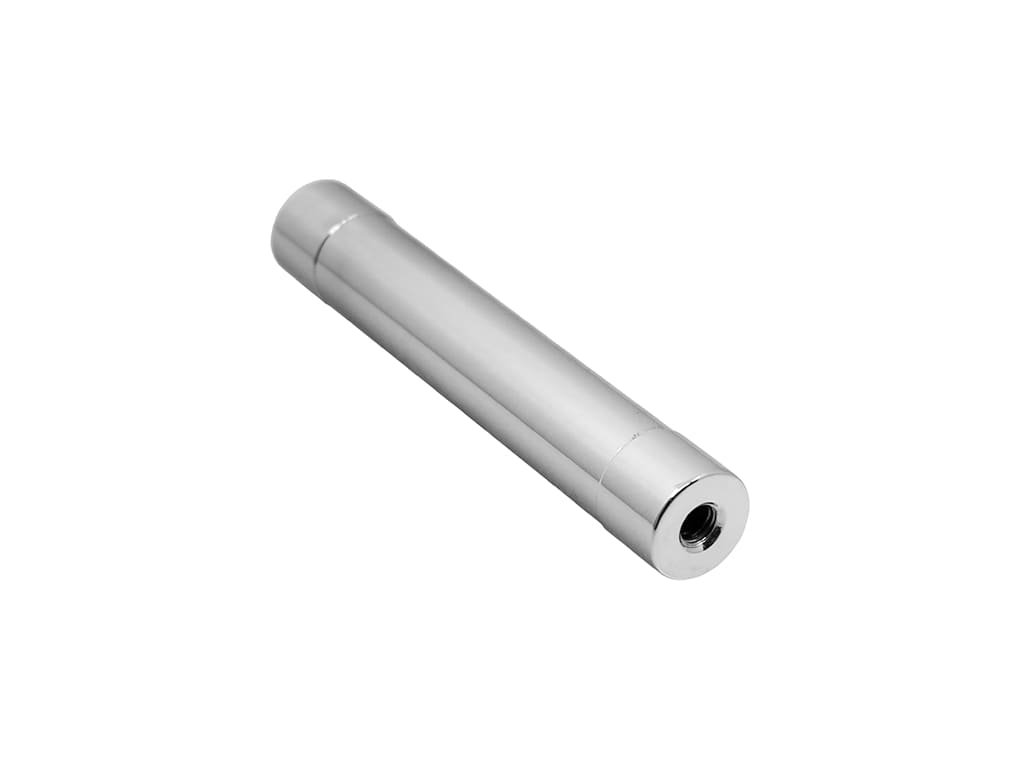

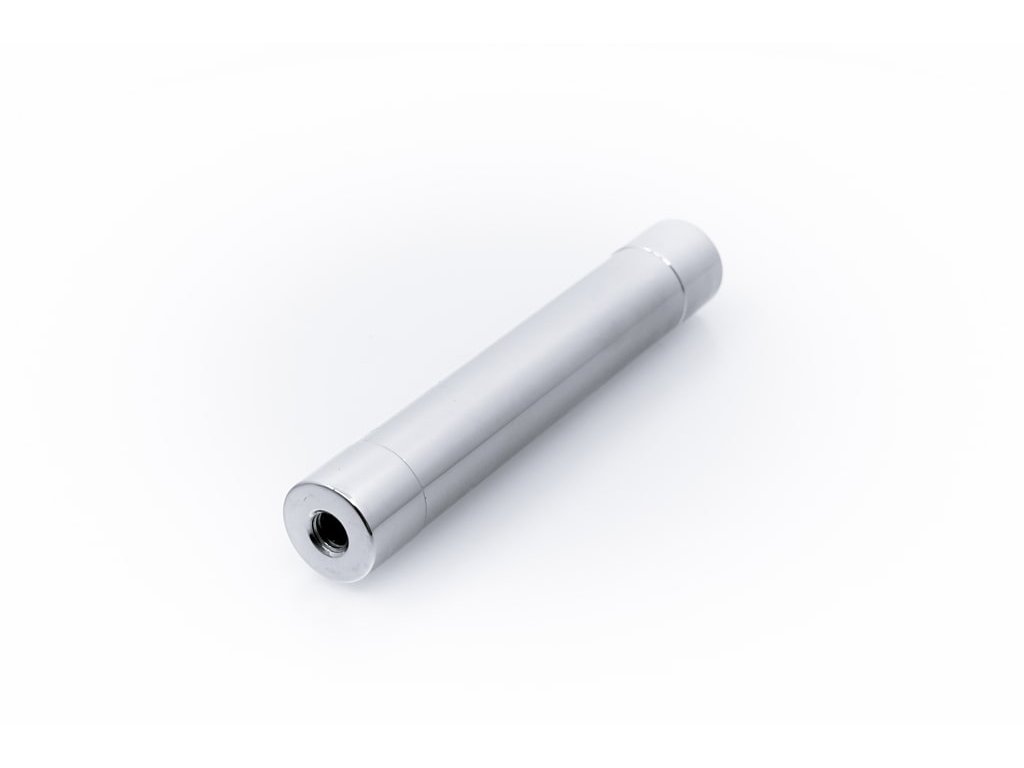

Classical magnetic rod ϕ 25 mm
Magnetic induction on the rod surface: 16.000 Gauss
Strong neodymium NdFeB magnets
Polished surface
Heat resistance of magnets up to 80°C in standard design
Stainless steel DIN 1.4301
1 x M8 threaded

Magnetic induction MTN

Magnetická tyč MTN
