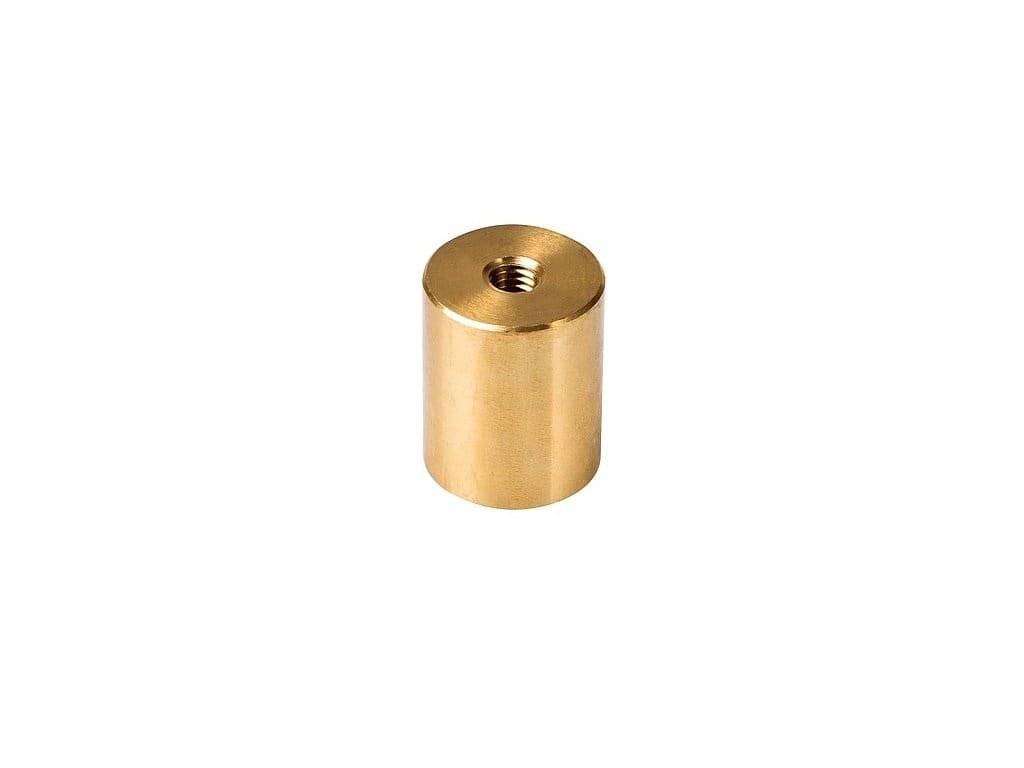

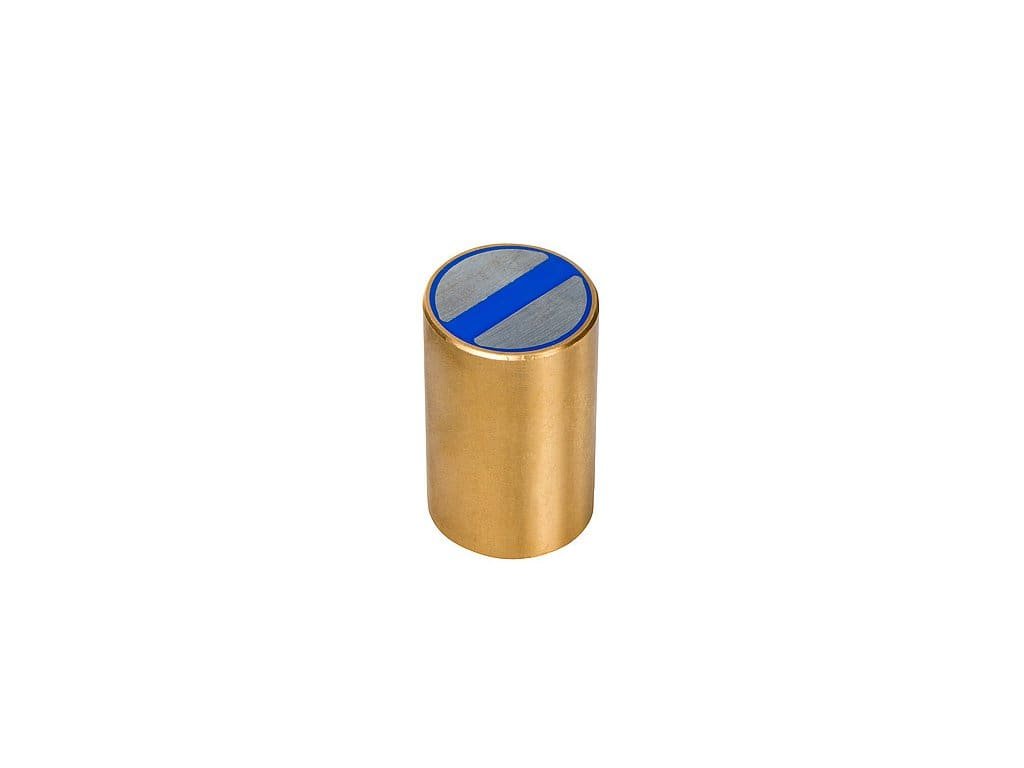

    NdFeB brass body deep pot magnet with internal thread tolerance h6 20x25 mm

    Code: BNC20-MTH6M4
    Not rated
    BNC20 MTH6M4 01 min
    €16,81 / pcs €13,89 excl. VAT
    In Stock
    Diameter D: 20 mm | H: 25 mm | Pull force: 280 N | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium brass body deep pot magnets
    Type: Neodymium

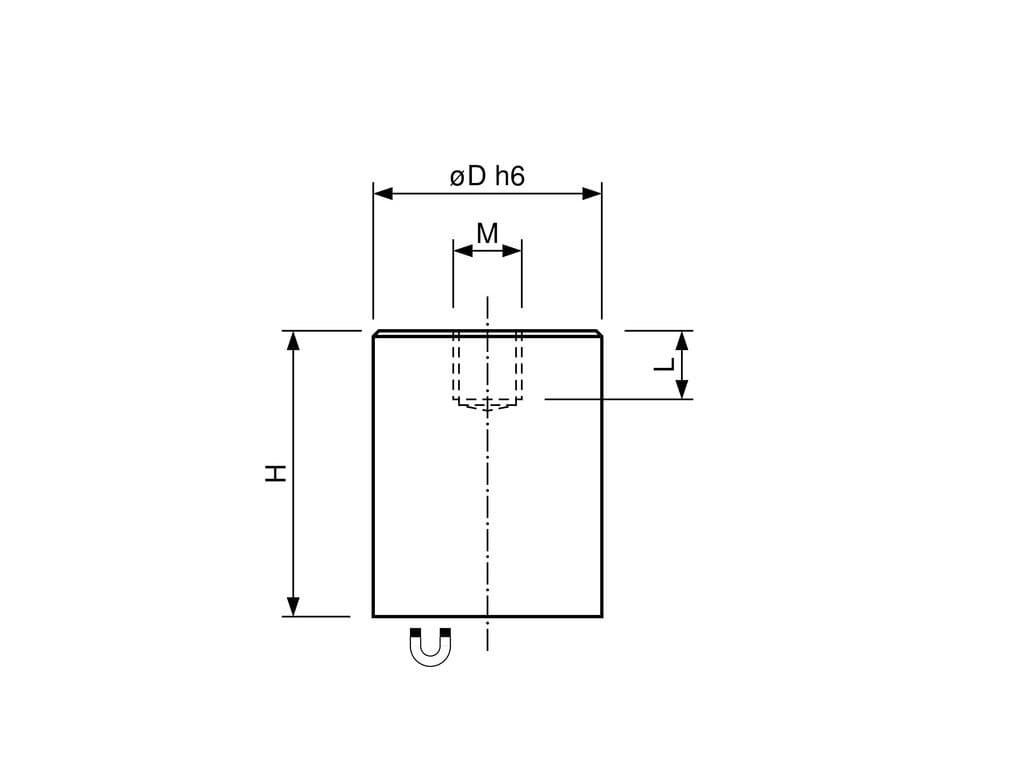

    H: 25 mm
    MxL: M6x6 mm
    Diameter D: 20 mm
    Pull force (cca 1kg ~ 10N): 280 N
    Shape: With internal thread
    Temperature (°C): 80 °C
    Tolerance: +0.1/-0.1 mm
    Weight: 58 g
