Neodymium NdFeB plastic magnet with rubberized contact surface 22x6 mm

Code: E201039
Not rated
Brand: SOLLAU
€2,35 / pcs €1,94 excl. VAT
In Stock

Diameter: 22 mm | Height: 6 mm | M4 hole for screw | Pull force: 58 N



Detailed information

Product detailed description

Rubberized Magnetic Holder, Grip - A strong neodymium ring magnet is ideal for attaching to scratch-prone painted surfaces. This holder protects your surfaces from damage that normal magnets could cause.

Additional parameters

Category: Rubber coated magnets
Weight: 0.008 kg

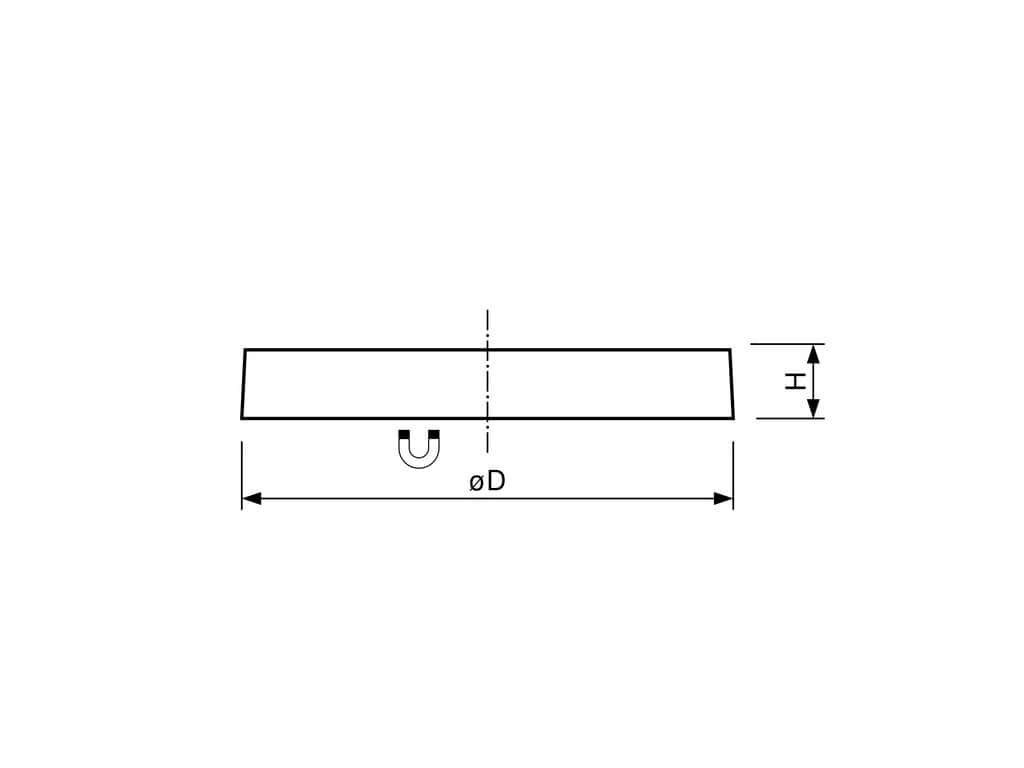

Diameter D: 22 mm
Height H: 6 mm
Pull force (cca 1kg ~ 10N): 43 N
Pull force (kg): 4,3 kg
Shape: Circle with recess for M4
Dimensions: Ø 22 mm, Height 6 mm
Tolerance: +/- 0,1 mm
Weight: 8 g
Magnetization: N42
Max. operating temperature: 80 °C
Surface: Rubberized
Material: Neodymium NdFeB
