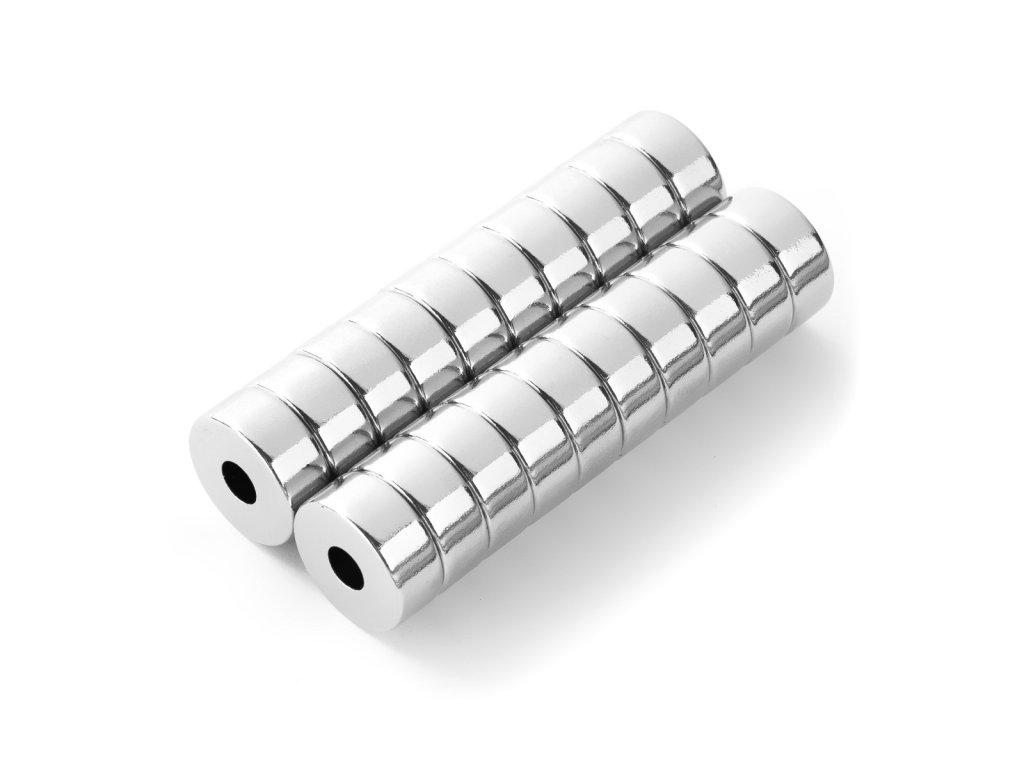

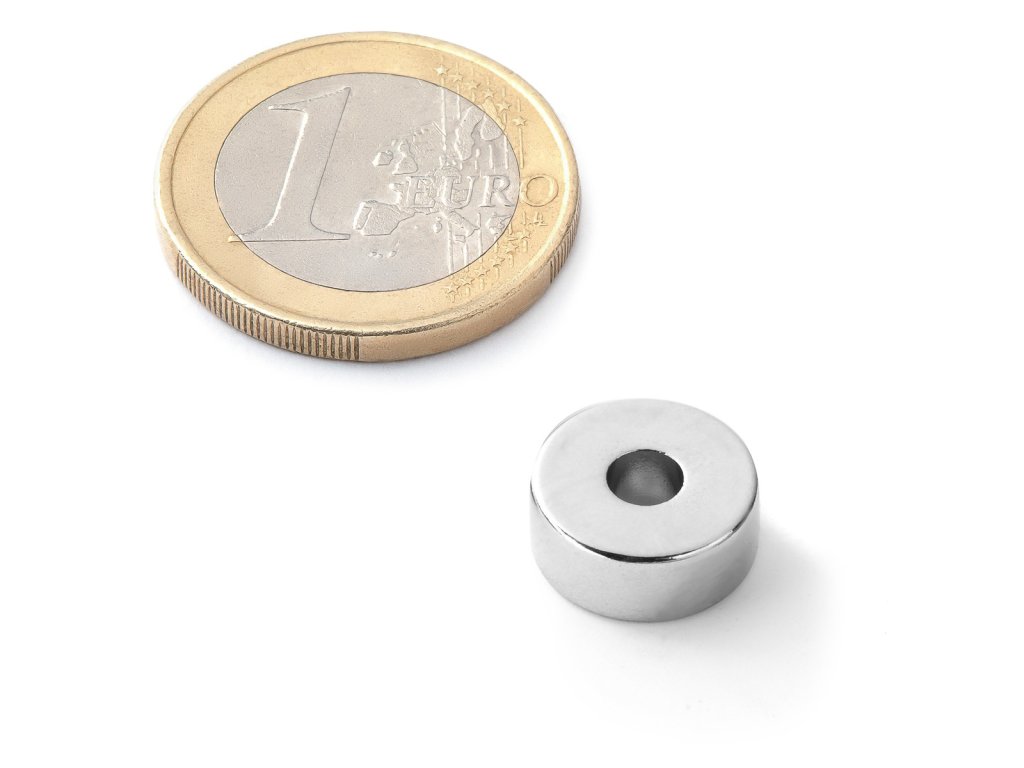

Neodymium NdFeB ring magnet D 12/4 mm, H 6 mm, N35, nickel

Code: E101273
Not rated
€0,81 / pcs €0,67 excl. VAT
In Stock
Diameter D: 12 mm | Diameter D1: 4 mm | H: 6 mm | Pull force: approx. 3,3 kg (approx. 32.36 N) | Temperature: 80 °C

Detailed information

Product detailed description


Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 12 mm
Diameter d1: 4 mm
Height H (mm): 6 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 32.36 N
Pull force 2: approx. 3,3 kg (approx. 32.36 N)
Quality: N35
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 4,6 g
