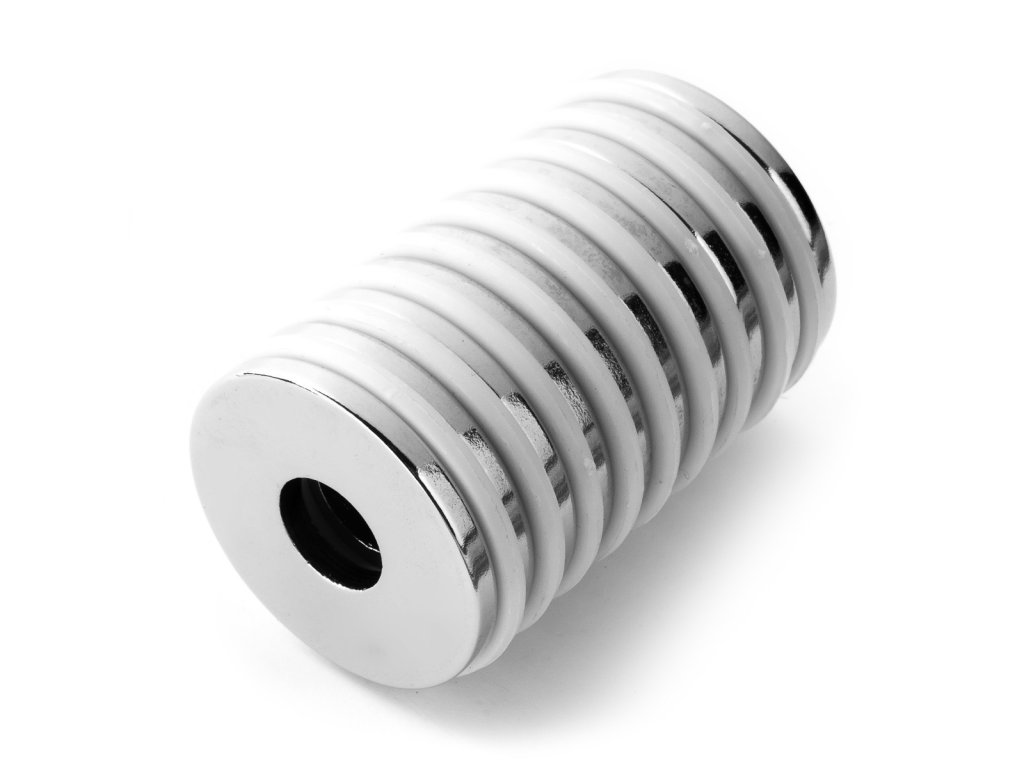

    Neodymium NdFeB ring magnet D 30/10.5 mm, H 3 mm, N40, nickel

    Code: E101310
    Not rated
    Neodymový magnet mezikruží
    €3,16 / pcs €2,61 excl. VAT
    In Stock
    Diameter D: 30 mm | Diameter D1: 10.5 mm | H: 3 mm | Pull force: approx. 5,8 kg (approx. 56.88 N) | Temperature: 80 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Neodymium NdFeB ring magnets
    Type: Neodymium
    Diameter D: 30 mm
    Diameter d1: 10.5 mm
    Height H (mm): 3 mm
    Magnetization: Axial with height
    Pull force (cca 1kg ~ 10N): 56.88 N
    Pull force 2: approx. 5,8 kg (approx. 56.88 N)
    Quality: N40
    Surface: nickel (Ni-Cu-Ni)
    Temperature (°C): 80 °C
    Tolerance: +/- 0,1 mm
    Weight (g): 14 g
