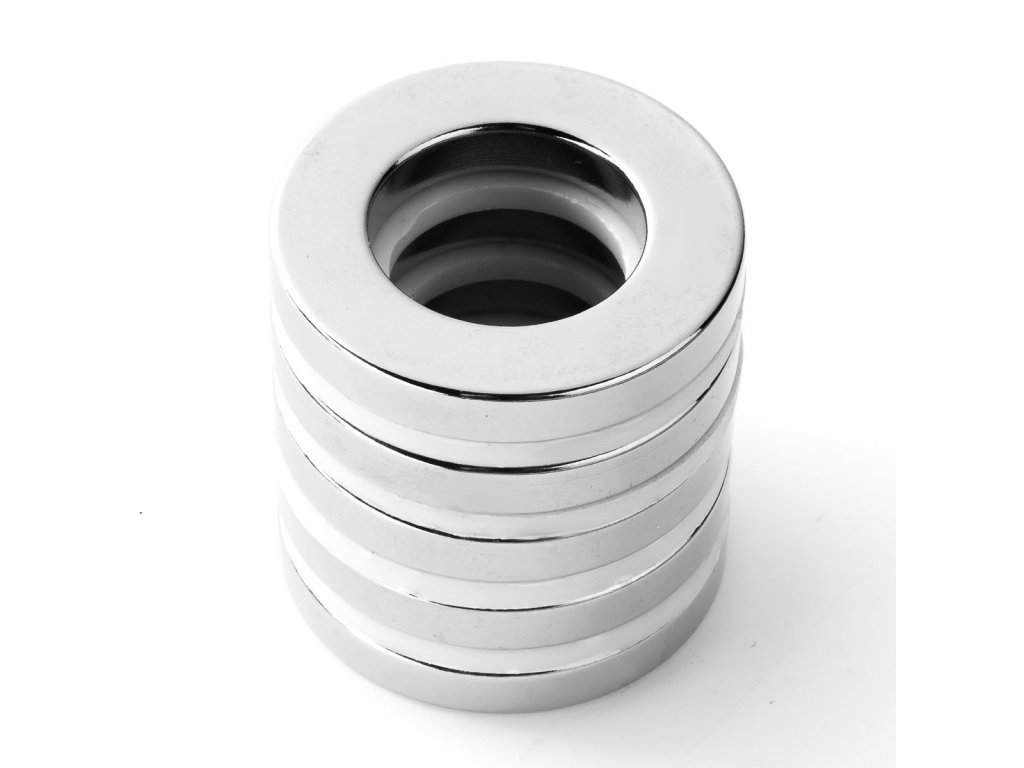

Neodymium NdFeB ring magnet D 40/23 mm, H 6 mm, N38, nickel

Code: E101315
Not rated
€10,27 / pcs €8,49 excl. VAT
In Stock
Diameter D: 40 mm | Diameter D1: 23 mm | H: 6 mm | Pull force: approx. 12 kg (approx. 117.68 N) | Temperature: 80 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Neodymium NdFeB ring magnets
Type: Neodymium
Diameter D: 40 mm
Diameter d1: 23 mm
Height H (mm): 6 mm
Magnetization: Axial with height
Pull force (cca 1kg ~ 10N): 117.68 N
Pull force 2: approx. 12 kg (approx. 117.68 N)
Quality: N38
Surface: nickel (Ni-Cu-Ni)
Temperature (°C): 80 °C
Tolerance: +/- 0,1 mm
Weight (g): 38 g
