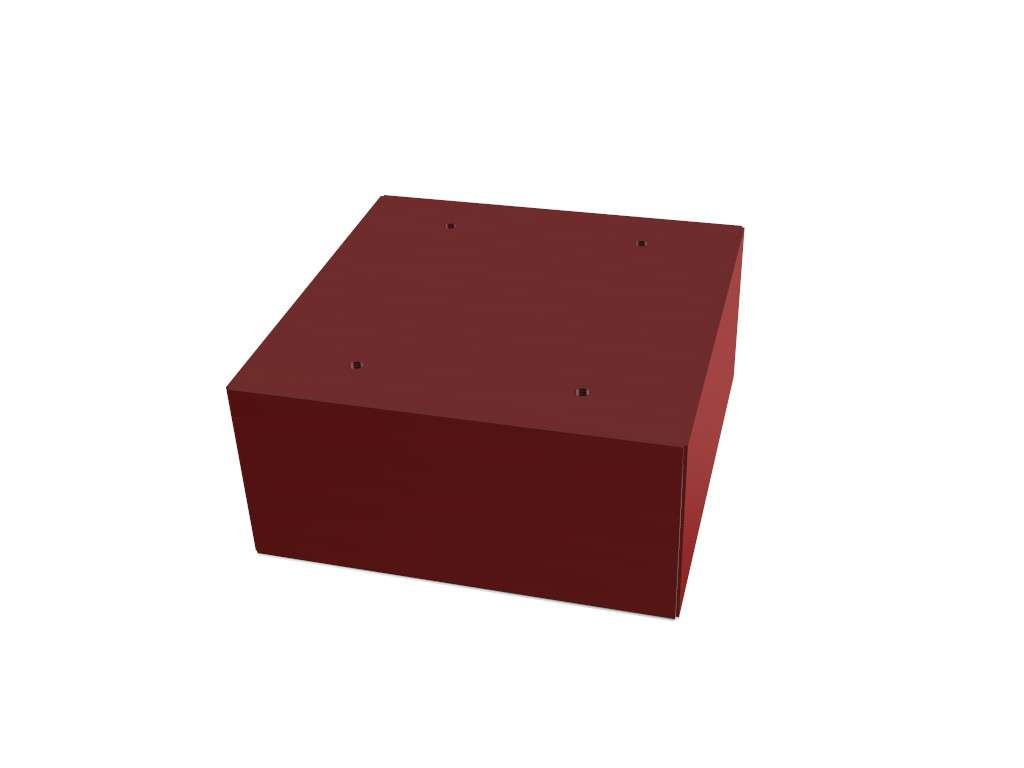

    Plate magnet MS-MC-BF (210)

    Code: MS-MC-BF210X210X100-133772 MS-MC-BF260X210X100-133773 MS-MC-BF310X210X100-133774 MS-MC-BF360X210X100-133775 MS-MC-BF410X210X100-133776 MS-MC-BF460X210X100-133777 MS-MC-BF510X210X100-133778 MS-MC-BF610X210X100-133779 MS-MC-BF710X210X100-133780 MS-MC-BF810X210X100-133781 MS-MC-BF910X210X100-133782 MS-MC-BF1010X210X100-133783 Choose variant
    Not rated
    MD 105779 Kostky vse
    €300,69 / pcs €348,73 / pcs €395,79 / pcs €442,85 / pcs €491,87 / pcs €539,87 / pcs €634,97 / pcs €729,13 / pcs €825,22 / pcs €920,31 / pcs €1 015,41 / pcs €1 111,46 / pcs from €300,69 / pcs €248,50 excl. VAT €288,21 excl. VAT €327,10 excl. VAT €365,99 excl. VAT €406,50 excl. VAT €446,17 excl. VAT €524,77 excl. VAT €602,59 excl. VAT €682 excl. VAT €760,59 excl. VAT €839,18 excl. VAT €918,56 excl. VAT from €248,50 excl. VAT
    On request On request On request On request On request On request On request On request On request On request On request On request Choose variant
    Variant

    Length: 210-1010 mm | Width: 210 mm | Height: 100 mm | Ferrite design

    Detailed information

    Product detailed description

    FERRITE PLATE MAGNETS
    DIMENSIONAL TABLE
    CATALOG NUMBER Length A (mm) Width B (mm) Height C (mm) Thread Height of suspension (mm) Magnetic induction (G) Type of magnets Weight (kg)
    MS-MC-BF210X210X100-133772 210 210 100 4 x M8 120 2 800 Ferrite magnets 23
    MS-MC-BF260X210X100-133773 260 210 100 4 x M8 120 2 800 Ferrite magnets 29
    MS-MC-BF310X210X100-133774 310 210 100 4 x M8 120 2 800 Ferrite magnets 35
    MS-MC-BF360X210X100-133775 360 210 100 4 x M8 120 2 800 Ferrite magnets 40,5
    MS-MC-BF410X210X100-133776 410 210 100 4 x M8 120 2 800 Ferrite magnets 46
    MS-MC-BF460X210X100-133777 460 210 100 6 x M8 120 2 800 Ferrite magnets 51,5
    MS-MC-BF510X210X100-133778 510 210 100 6 x M8 120 2 800 Ferrite magnets 57
    MS-MC-BF610X210X100-133779 610 210 100 6 x M8 120 2 800 Ferrite magnets 68
    MS-MC-BF710X210X100-133780 710 210 100 8 x M8 120 2 800 Ferrite magnets 79
    MS-MC-BF810X210X100-133781 810 210 100 8 x M8 120 2 800 Ferrite magnets 90
    MS-MC-BF910X210X100-133782 910 210 100 8 x M8 120 2 800 Ferrite magnets 101
    MS-MC-BF1010X210X100-133783 1010 210 100 8 x M8 120 2 800 Ferrite magnets 112



    The plate magnet serves as a simple magnetic separator. Its main advantage is easy installation also with self-help.

    The plate magnet is fitted with ferrite magnets, but we can equip it with the strongest neodymium magnets, too.

    Not satisfied with the size or strength of the plate magnet? Need some alterations? Please contact us. We will prepare a tailor-made offer for you!
