Ferrite 90° countersunk pot magnet 16x3.5x4.5 mm

Code: MC10071
Not rated
€3,50 / pcs €2,89 excl. VAT
In Stock

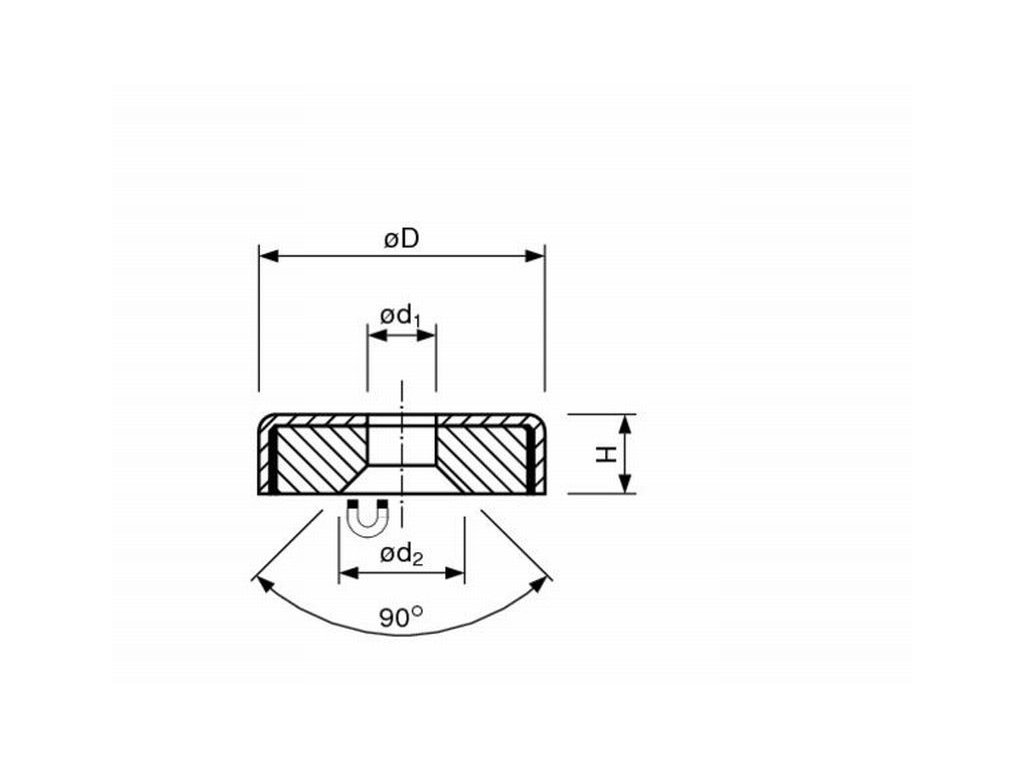

Diameter D: 16 mm | d1: 3.5 mm | H: 4.5 mm | Pull force: 14 N | Temperature: 200 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Ferrite countersunk pot magnets
Type: Ferrite
d1: 3.5 mm
d2: 6.5 mm
H: 4.5 mm
DK: 0 mm
Diameter D: 16 mm
Pull force (cca 1kg ~ 10N): 14 N
Shape: With center hole
Temperature (°C): 200 °C
Tolerance: +0.1/-0.1 mm
Weight: 4 g
