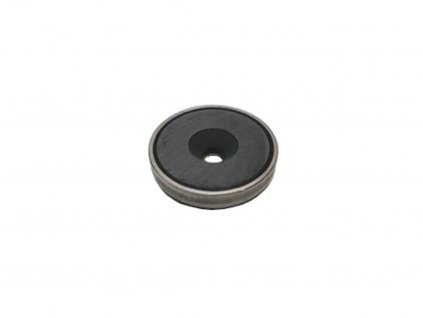

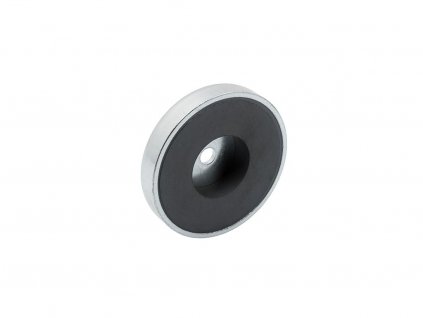

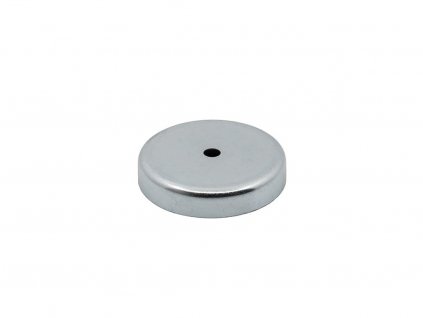

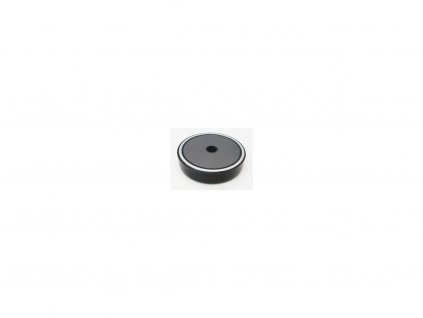

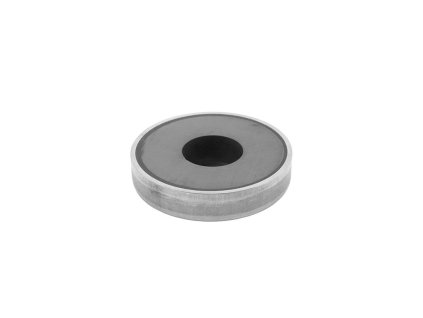

Ferrite countersunk pot magnets

Diameter D: 16 mm | d1: 3.5 mm | H: 4.5 mm | Pull force: 14 N | Temperature: 200 °C

Diameter D: 20 mm | d1: 4.1 mm | H: 6 mm | Pull force: 27 N | Temperature: 200 °C

Diameter D: 20 mm | d1: 4.1 mm | H: 6 mm | Pull force: 22 N | Temperature: 220 °C

Diameter D: 25 mm | d1: 5.5 mm | H: 7 mm | Pull force: 36 N | Temperature: 200 °C

Diameter D: 25 mm | d1: 5.5 mm | H: 7 mm | Pull force: 29 N | Temperature: 220 °C

Diameter D: 32 mm | d1: 5.5 mm | H: 7 mm | Pull force: 72 N | Temperature: 200 °C

Diameter D: 32 mm | d1: 5.5 mm | H: 7 mm | Pull force: 58 N | Temperature: 220 °C

Diameter D: 40 mm | d1: 5.5 mm | H: 8 mm | Pull force: 72 N | Temperature: 220 °C

Diameter D: 40 mm | d1: 5.5 mm | H: 8 mm | Pull force: 90 N | Temperature: 200 °C

Diameter D: 50 mm | d1: 8.5 mm | H: 10 mm | Pull force: 145 N | Temperature: 220 °C

Diameter D: 50 mm | d1: 8.5 mm | H: 10 mm | Pull force: 180 N | Temperature: 200 °C

Diameter D: 57 mm | d1: 6.5 mm | H: 11 mm | Pull force: 230 N | Temperature: 200 °C

Diameter D: 63 mm | d1: 6.5 mm | H: 14 mm | Pull force: 230 N | Temperature: 220 °C

Diameter D: 63 mm | d1: 6.5 mm | H: 14 mm | Pull force: 290 N | Temperature: 200 °C

Diameter D: 80 mm | d1: 6.4 mm | H: 10 mm | Pull force: 450 N | Temperature: 200 °C

Diameter D: 80 mm | d1: 6.5 mm | H: 18 mm | Pull force: 540 N | Temperature: 200 °C

Diameter D: 83 mm | d1: 10.5 mm | H: 18 mm | Pull force: 600 N | Temperature: 200 °C

Diameter D: 84 mm | d1: 12 mm | H: 20 mm | Pull force: 650 N | Temperature: 60 °C
